Template Data Types
ABSOLUTE Templates

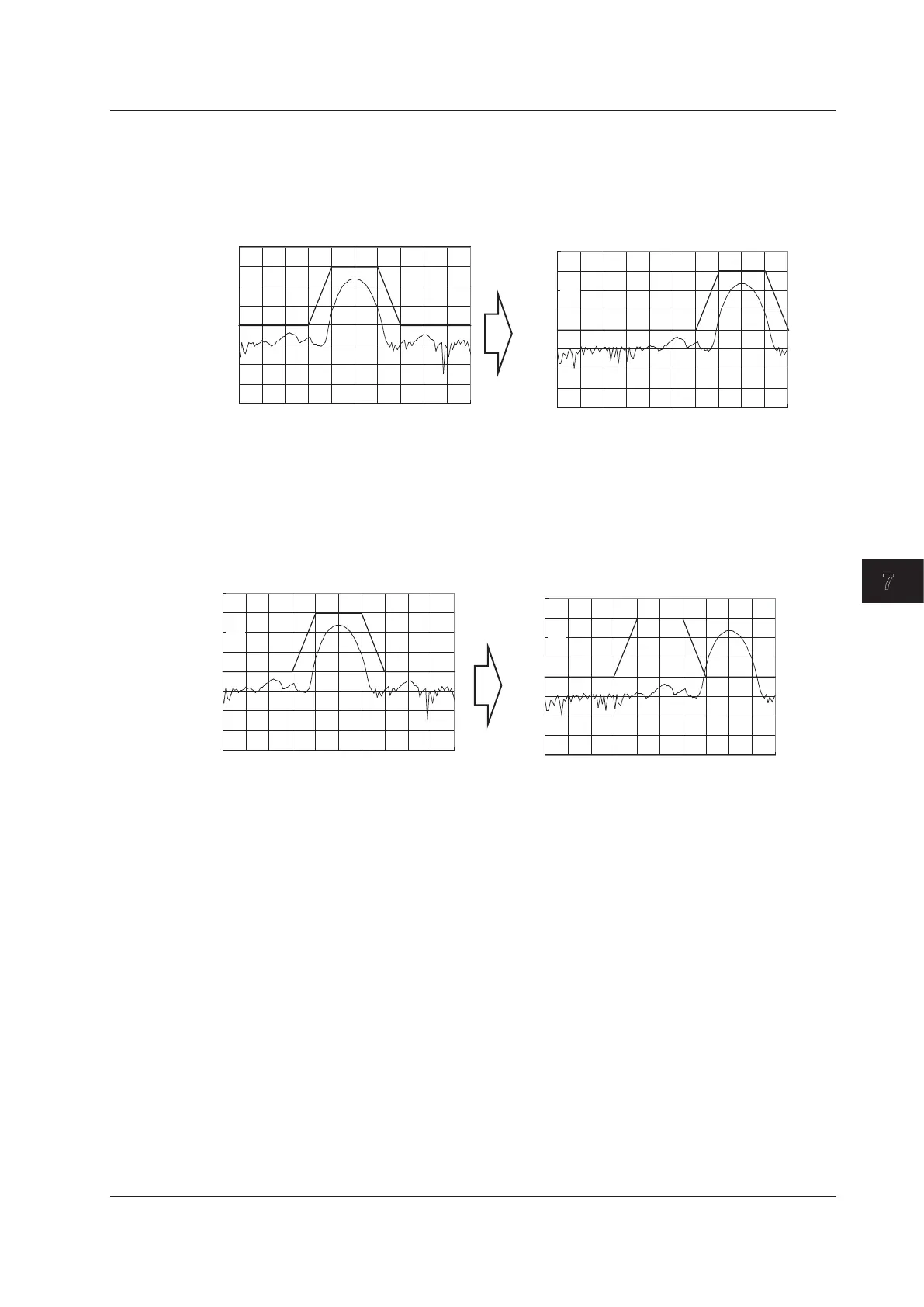

ABSOLUTE template data specify both wavelengths and levels as absolute values.
The waveform and template data change in conjunction with changes to the center
wavelength or display sweep width on the display scale.
-70
-50
-30
-10
10
1547.5 1550 1552.5
REF
Wavelength (nm)
Level (dBm)
-70
-50
-30
-10
10
1546 1548.5 1551
REF
Wavelength (nm)
Level (dBm)
When ZOOM CENTER WL = 1550 nm
When ZOOM CENTER WL is changed to 1548.5 nm
(template also moves in synch with the waveform)
RELATIVE Templates
RELATIVE template data are specified as relative values with respect to the display
scale. These template data are fixed to the scale position even if the center wavelength
or display sweep width of the display scale is changed (not linked to the waveform).
When ZOOM CENTER WL = 1550 nm
When ZOOM CENTER WL is changed to 1548.5 nm
(template not moved)
-70
-50
-30
-10
10
1547.5 1550 1552.5
REF
Wavelength (nm)
Level (dBm)
-70
-50
-30
-10
10
1546 1548.5 1551
REF
Wavelength (nm)
Level (dBm)
7.12 Go/No-Go Judgment (Template)
