Template Data
• Template data consist of wavelength and level data. Up to 50,001 points of data may
be defined.
• An upper limit, lower limit, and target line can be set.
• The on-screen template data display range and the Go/No Go test function execution
range follow the display scale wavelength range.

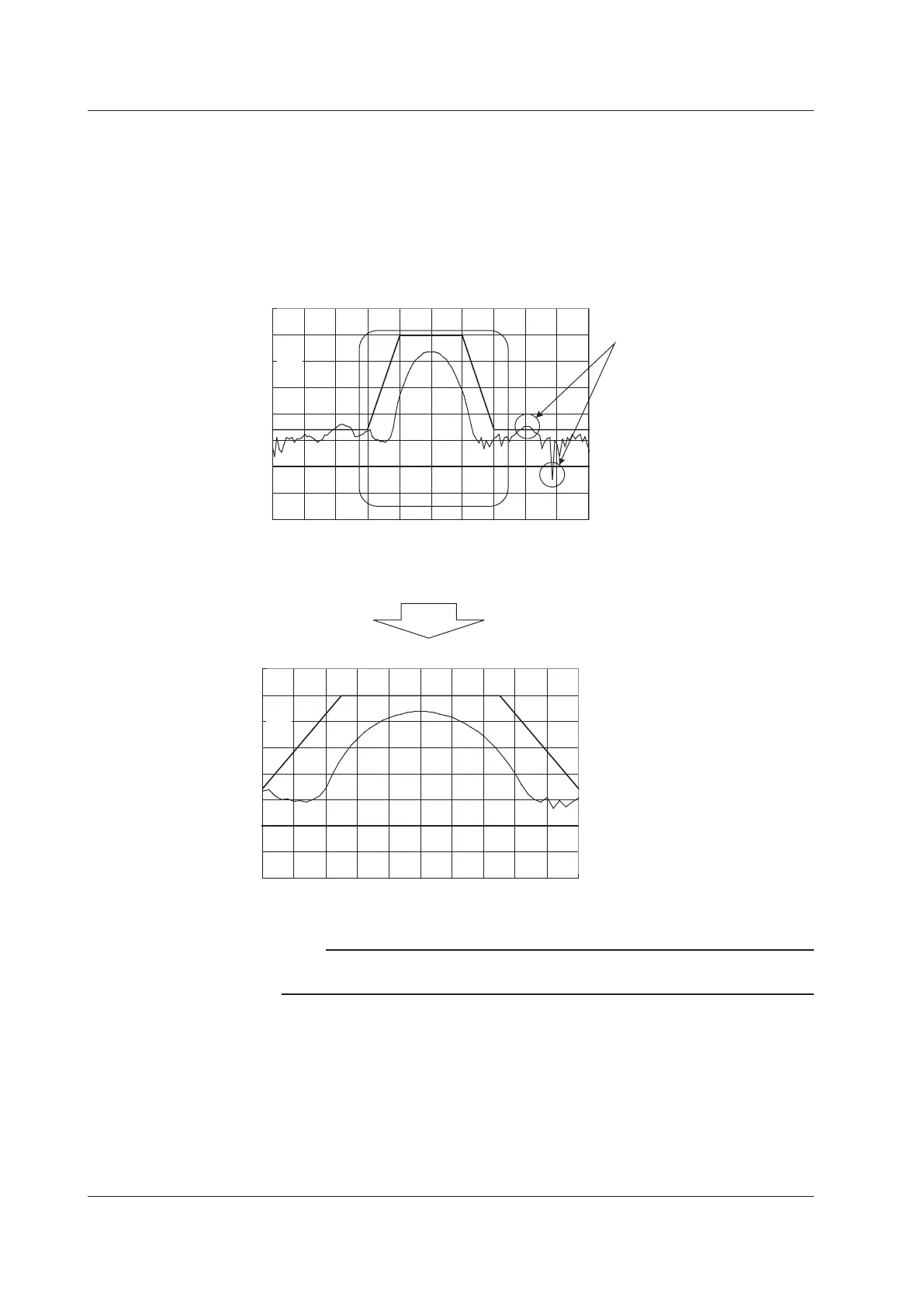

Relationship between Go/No Go Judgment and Wavelength Range
-70
-50
-30
-10
1547.5 1550 1552.5
REF
FAIL
Upper Limit Line
Lower Limit Line
Level (dBm)
Wavelength (nm)
NG points
-70
-50
-30
-10
10
1549 1550 1551
REF
PASS
Upper Limit Line
Lower Limit Line
Level (dBm)
Wavelength (nm)
If the waveform is zoomed and the
NG point is outside the displayed
range, the judgment result is PASS.
Note
When performing Go/No Go judgment, display the wavelength range on the screen. The Go/No
Go testing process is not performed on wavelength ranges that are not displayed.
