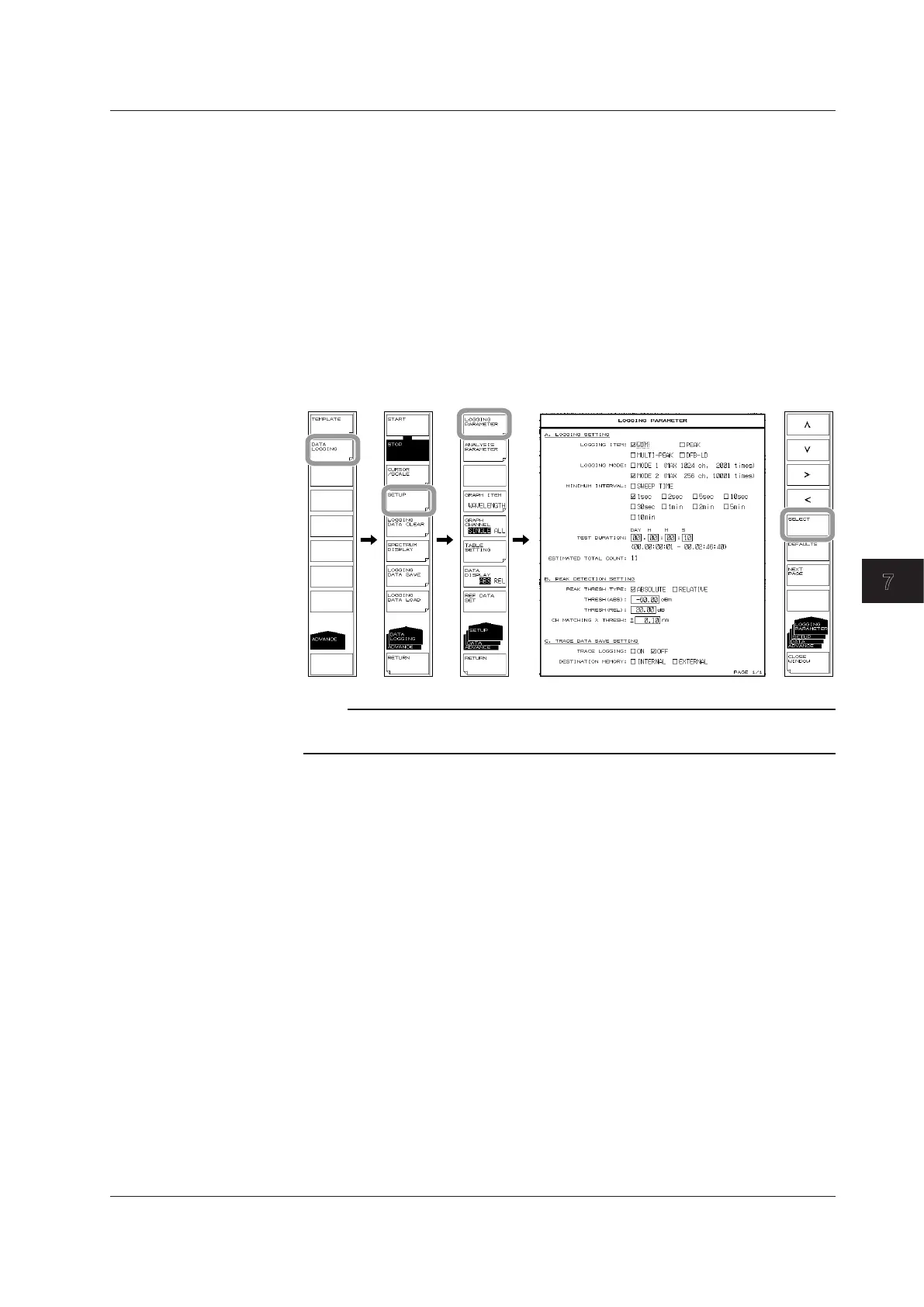

Setting the Data Logging Conditions
• Setting the Logging Parameters
1.
Press ADVANCE and then the DATA LOGGING soft key. The soft key menu for
data logging appears.
2.
Press the SETUP soft key. A menu for setting the data logging conditions appears.
3.
Press the LOGGING PARAMETER soft key. The logging parameter setting
screen appears.
4.
Move the cursor using the arrow keys or soft keys, and enter the value using the
numeric keypad.
To select a check box, align the cursor, and then press the SELECT soft key.
5.
Press the CLOSE WINDOW soft key. The logging parameter setting screen
closes, and the soft key menu returns to the previous level.
Note
The LOGGING PARAMETER soft key cannot be used while logging measurement is in
progress.
7.15 Analysis Data Logging
