• Zooming the Graph Display

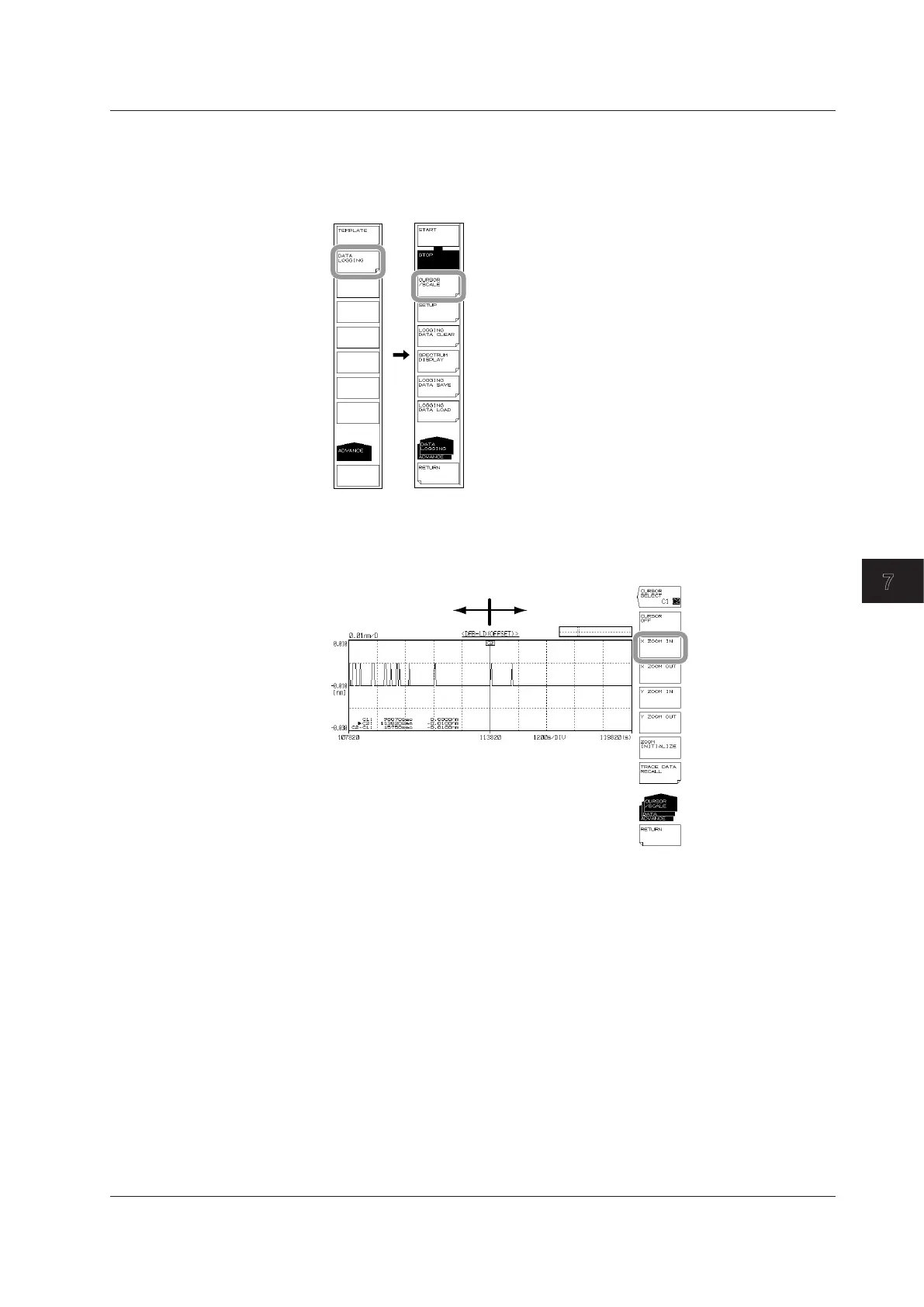

1.
Press ADVANCE and then the DATA LOGGING soft key. The soft key menu for
data logging appears.
2.
Press the CURSOR/SCALE soft key. The cursor/scale soft key menu appears.
Zooming in on the Horizontal Scale
3.
Press the X ZOOM IN soft key. The horizontal scale is expanded in 1-2-5 steps at
the current cursor (cursor C1 or C2) position.
Center
Expand
7.15 Analysis Data Logging
