7-76
IM AQ6370D-01EN

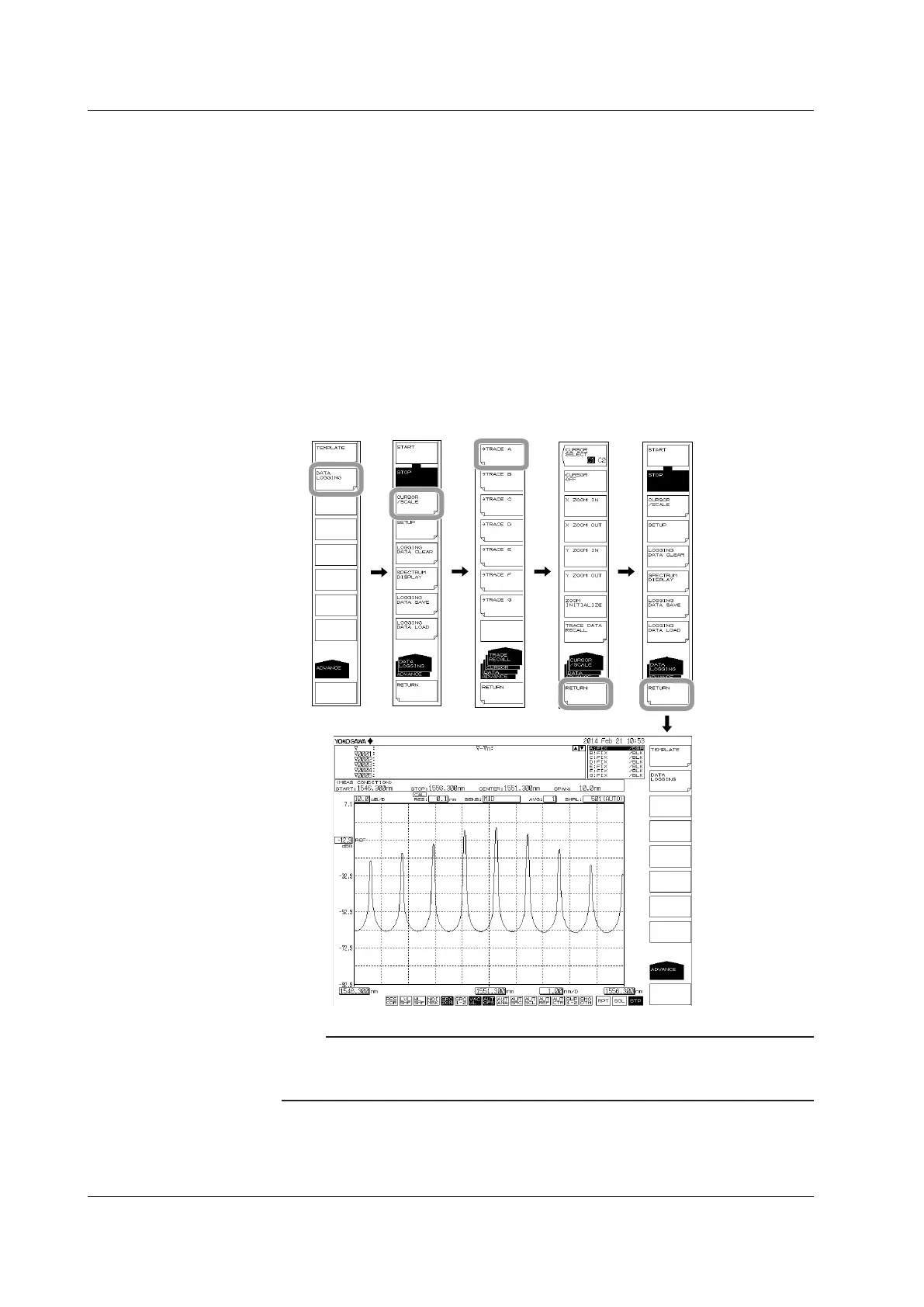

Loading the Waveform Data of the Logging Data into the Specified Trace (only
when the TRACE LOGGING parameter is set to ON)
1.
Press ADVANCE and then the DATA LOGGING soft key. The soft key menu for
data logging appears.
2.
Press the CURSOR/SCALE soft key. The cursor/scale soft key menu appears.
3.
Press the TRACE DATA RECALL soft key. A soft key menu for selecting the trace
to load appears.
4.
Press the soft key of the trace you want to load the data into. The waveform data
at the current cursor position (cursor C1 or C2) is loaded into the selected trace,
and the menu returns to the previous level.
If you press the RETURN soft key a few times to return to the ADVANCE level,
the waveform data of the specified trace will be displayed.
is loaded.
Note
You cannot use the TRACE DATA RECALL soft key in the following situations.
• If data logging has not been executed and no data exists
• If the TRACE LOGGING parameter is set off and no waveform data exists.
7.15 Analysis Data Logging
