8-58
IM AQ6370D-01EN
Configuring to Also Save Data in CSV Format When Logging Data Is Saved
11.
Press the CSV DATA SAVE ON/OFF soft key to select ON (save) or OFF (not
save).
Configuring to Also Save the Temporarily Saved Waveform Data When Logging
Data Is Saved
12.
Press the TRACE DATA SAVE ON/OFF soft key to select ON (save) or OFF (not
save).
If you don’t save the waveform data, it will be deleted when data logging is
restarted.
Saving the File
13.
To overwrite an existing file, move the cursor to the name of the file you want to
overwrite.
14.
Press the EXECUTE soft key. The file is saved.
If you press the RETURN soft key, the data will not be saved. The menu returns
to the previous level.
15.
When overwriting a file, a confirmation message appears. Press the YES soft key.
To cancel, press the NO soft key.

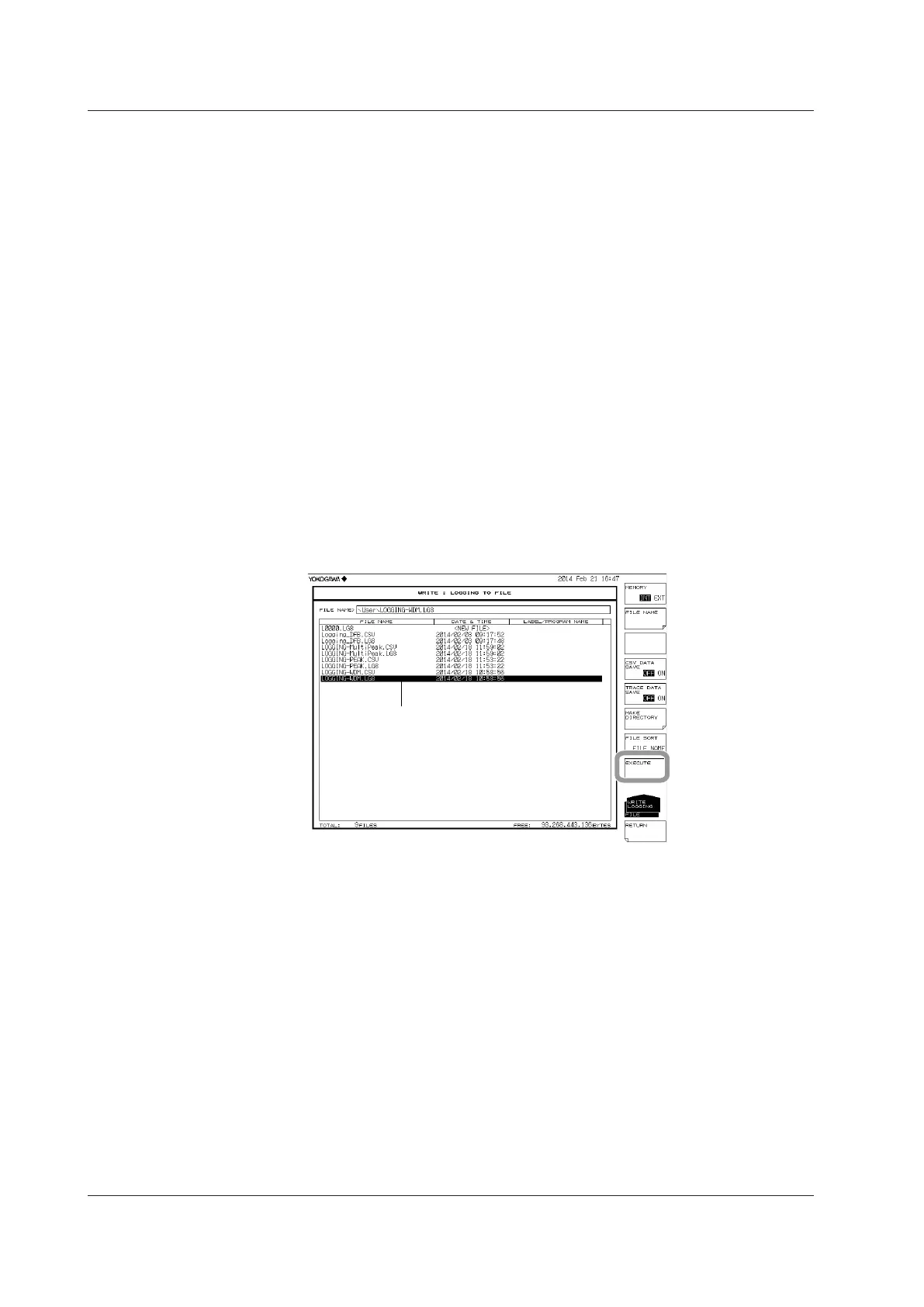

Select an existing file.
8.10 Saving and Loading Logging Data
