Zebra FX7500 Integration Guide

Firmware Upgrade
111
Updating FX Series Reader Software
Verifying Firmware Version
To verify that the FX7500 and FX9600 reader firmware is outdated:
1. Log into the reader. In the User Login window, enter admin in the User Name: field and enter change in the
Password: field.

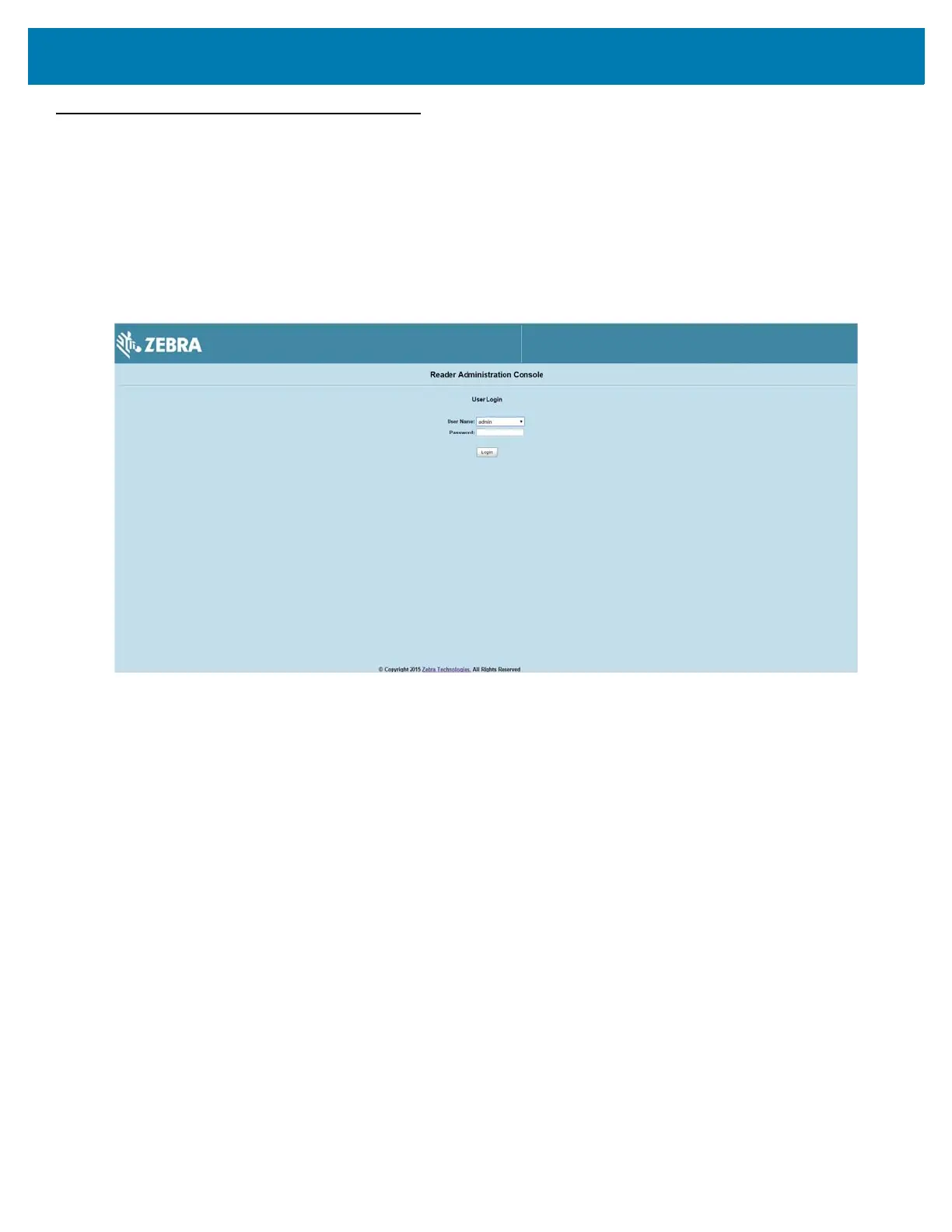

Figure 80 User Login Window
2. Select Firmware on the left side panel to verify that the current version of reader software is outdated
(for example, 1.1.66).

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
