Administrator Console
87
Firmware Version/Update
The Firmware Version window displays the current software and firmware versions and allows upgrading to
new firmware. From the selection menu, click
Firmware.

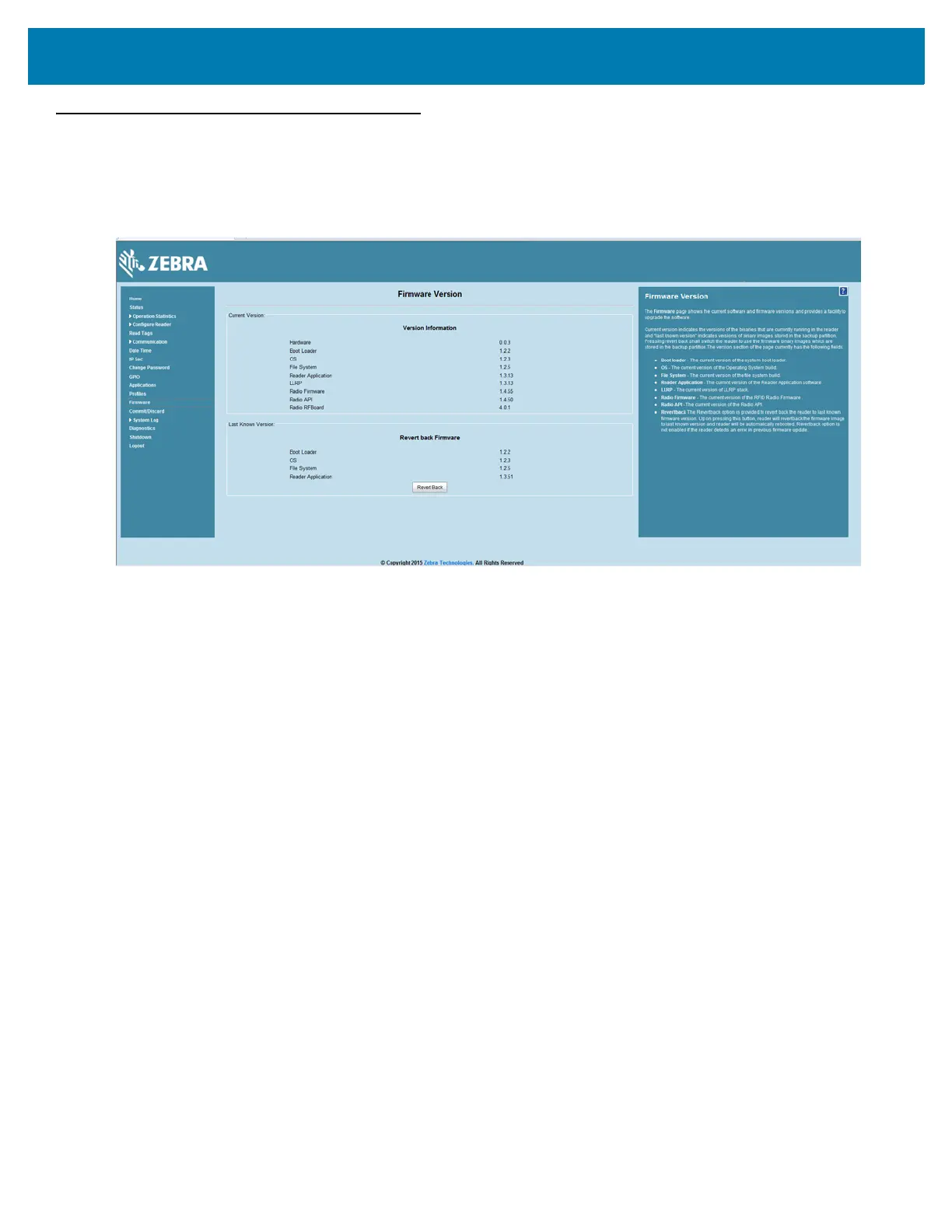

Figure 55 Firmware Version
Current Version indicates the binary versions currently running in the reader. Last Known Version
indicates binary image versions stored in the backup partition. This window provides version information
on the following firmware:
Boot Loader
OS
File System
Reader Application
LLRP
Radio Firmware
Radio API
Select Revert Back to revert the firmware to last known version. The reader automatically reboots. This
option is not enabled if the reader detects an error in the previous firmware update.

Table of Contents

Other manuals for Zebra FX7500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra FX7500 and is the answer not in the manual?

Zebra FX7500 Specifications

General IconGeneral
InterfaceUSB
Product colorWhite
LED indicatorsActivity, Power, Status
Housing materialAluminium, Metal, Plastic
Battery type-
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)5 - 95 %
Harmonized System (HS) code84719000
Weight and Dimensions IconWeight and Dimensions
Depth43.2 mm
Width149.9 mm
Height195.6 mm
Weight860 g
