Zebra FX7500 Integration Guide

Getting Started
24
FX9600 Parts

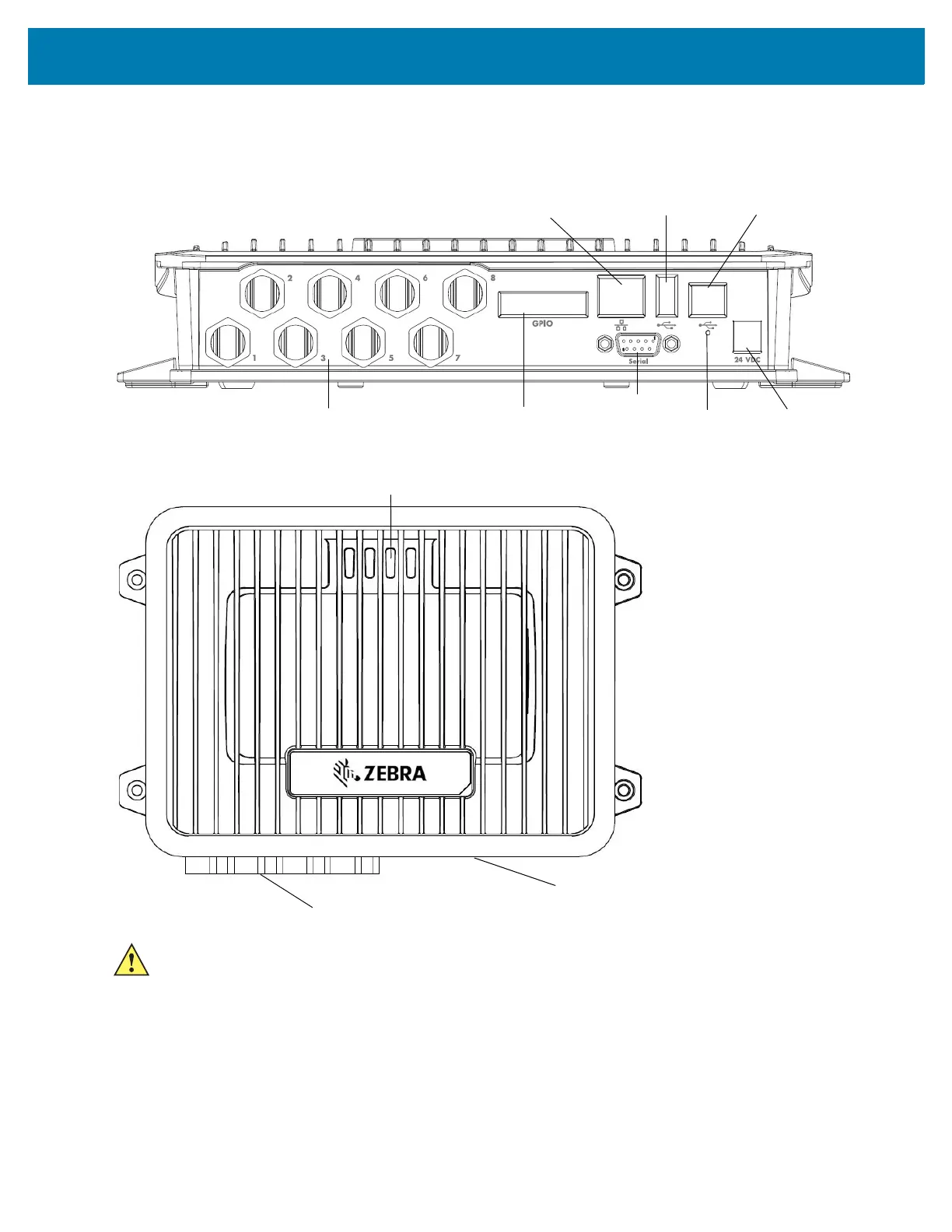

Figure 12 FX9600 RFID Reader Rear Panel Connections
Figure 13 FX9600 RFID Reader
Reset
Power
Antenna Ports (Eight Ports, Reverse TNC)
USB-B
Client
10/100BaseT Ethernet
(with PoE/PoE+)
USB-A
Host
GPIO
Debug Serial
Port
Antenna Ports (Reverse TNC)
LEDs
Rear Panel
CAUTION:Use only parts provided with the FX9600 RFID readers, or Zebra approved/recommended parts.
Substituting other cables or parts can degrade system performance, damage the reader,
and/or void the warranty.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
