Zebra FX7500 Integration Guide

Technical Specifications
130
FX9600 GPIO ConnectionsFX9600 GPIO Connections
The FX9600 GPIO connector pinouts include the following:

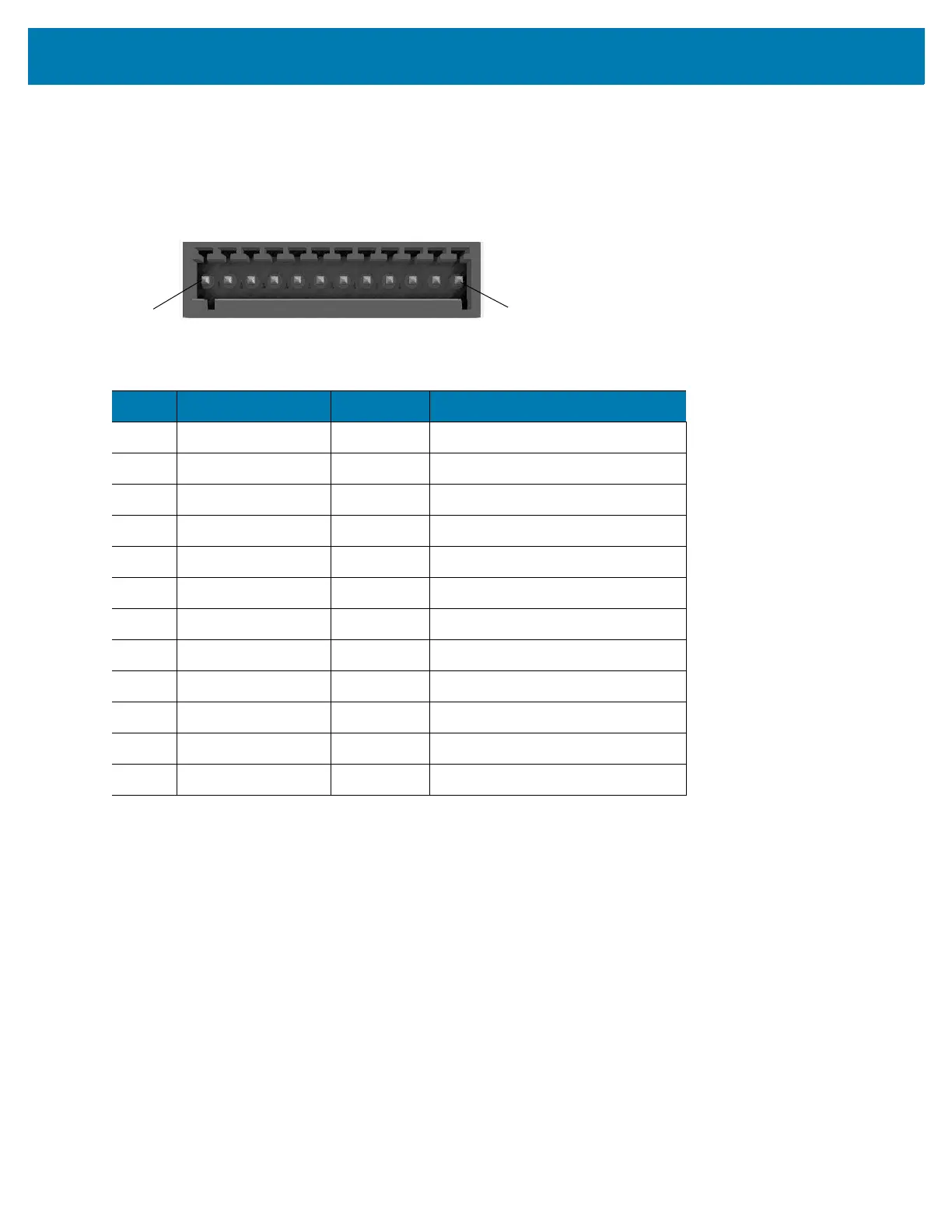

Figure 97 FX9600 RFID Reader GPIO Connection
Table 12 FX9600 GPIO Pin Outs
Pin # Pin Name Direction Description
1 +24V DC Power O Supplies +24VDC At up to 1 Amp
2 GND - Ground connection
3 GP output #1 O Signal for GP output #1
4 GP output #2 O Signal for GP output #2
5 GP output #3 O Signal for GP output #3
6 GP output #4 O Signal for GP output #4
7 GND - Ground connection
8 GP input #1 I Signal for GP input #1
9 GP input #2 I Signal for GP input #1
10 GP input #3 I Signal for GP input #1
11 GP input #4 I Signal for GP input #1
12 GND - Ground connection
Pin 12
Pin 1

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
