Technical Specifications
131
The following figure provides an example of a typical GPIO setup with the power derived from an external power
supply.

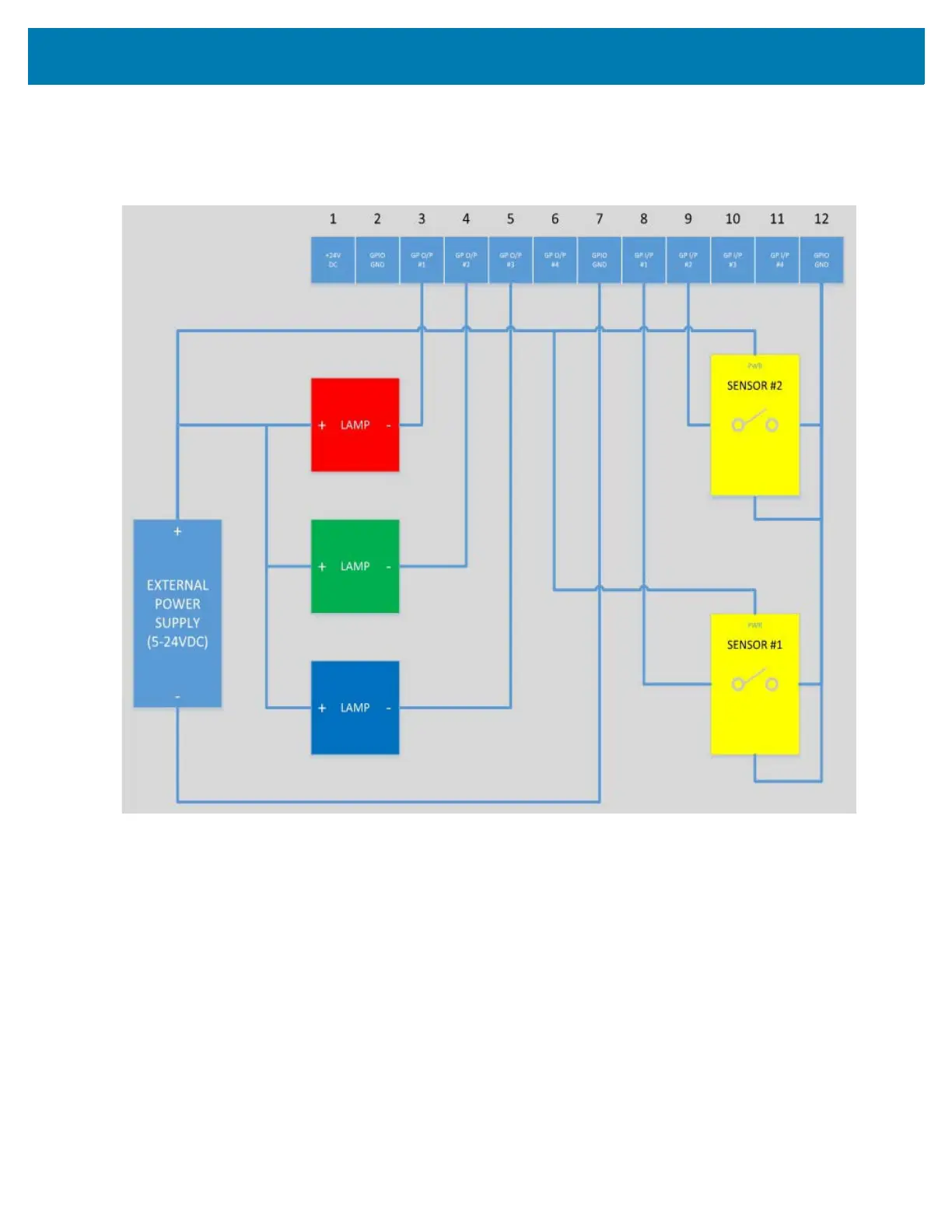

Figure 98 FX9600 GPIO Setup Example with Power Derived from External Power Supply
