Zebra FX7500 Integration Guide

Quick Start
14

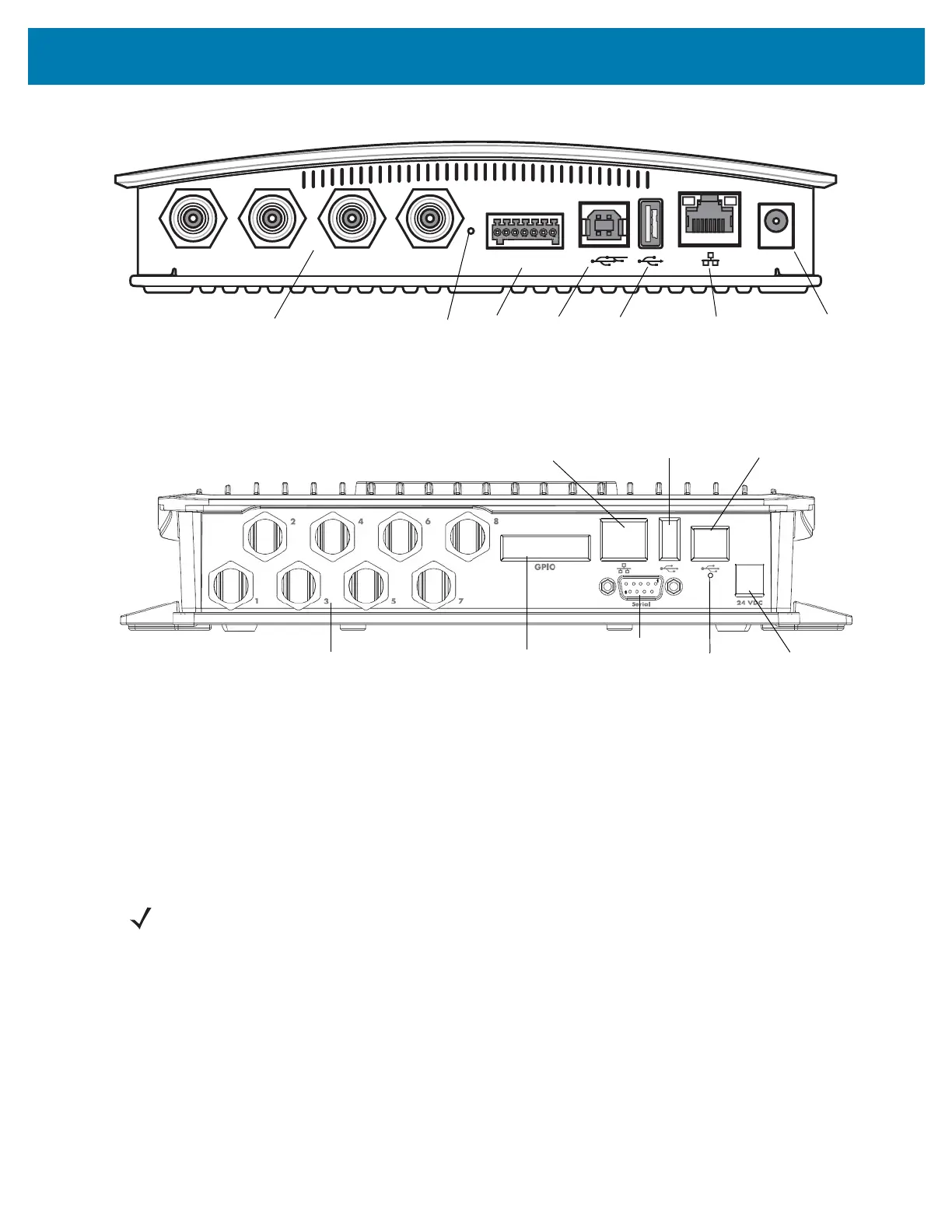

Figure 1 FX7500 RFID Fixed Reader Rear Panel Connections
Figure 2 FX9600 RFID Fixed Reader Rear Panel Connections
Step 2, Connecting to the Reader
To connect via host name:
1. Open a browser. The minimum browser recommends are IE11 (disabling Compatibility View is
recommended), Chrome v58, and FireFox v54.
2. Enter the host name followed by the last three octets of the MAC, provided on a label on the reader, in
the browser (For example, for a FX9600 MAC address of 0023683BA63A, use the prefix FX9600,
followed by 3BA63A. Enter http://FX96003BA63A in the browser address bar) and press Enter. The
User Login window appears and the reader is ready.
Port 1 Port 2 Port 3 Port 4 GPIO 24 VDC
Antenna Ports (Four Ports, Reverse TNC)
USB
Client
Power
GPIO
10/100BaseT
Ethernet (with PoE)
Reset
USB
Host
Reset
Power
Antenna Ports (Eight Ports, Reverse TNC)
USB
Client
10/100BaseT Ethernet
(with PoE/PoE+)
USB
Host
GPIO
Debug Serial
Port
NOTE:Connect the reader to a network that supports host name registration and lookup to ensure the
network can access the reader using the host name. For instance, some networks can register host
names through DHCP. When first connecting to the reader, it is recommended to keep DHCP enabled in
both the PC and in the reader, although it is not guaranteed that host name will work all the time. Use the
host name printed on the reader label, or construct it using the reader MAC address on the bottom of the
reader.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
