Zebra FX7500 Integration Guide

Administrator Console
77
connection on an alternate interface. This option is off by default. Changing this option restarts the
LLRP service on the reader.
• Connect Status - Indicates whether the reader is connected to the LLRP host. This button toggles
between ConnectLLRP and DisconnectLLRP. Clicking ConnectLLRP initiates an LLRP connection
to the host server.
LLRP configuration options when the reader is in Secure mode:
• Security Mode - Specifies whether LLRP communicates in secure or unsecured mode. Checking
Enable Secure Mode switches the LLRP port to 5085 by default. You can override the port value.
LLRP in secure mode supports ciphers that are compliant with TLS1.2.
• Validate Peer - Specifies whether the validation of peer against the same certification authority
issued certificate is required. If you select the validate peer option, the secure LLRP service on the
reader allows connection for valid secure peer entities only if the certificate of the peer is issued
from the same certification authority that issued the certificate for the reader. By default the reader
uses self-signed certificates, and peer certificate based validation is disabled.
SNMP Settings
Select SNMP to view the Configure SNMP Settings window.

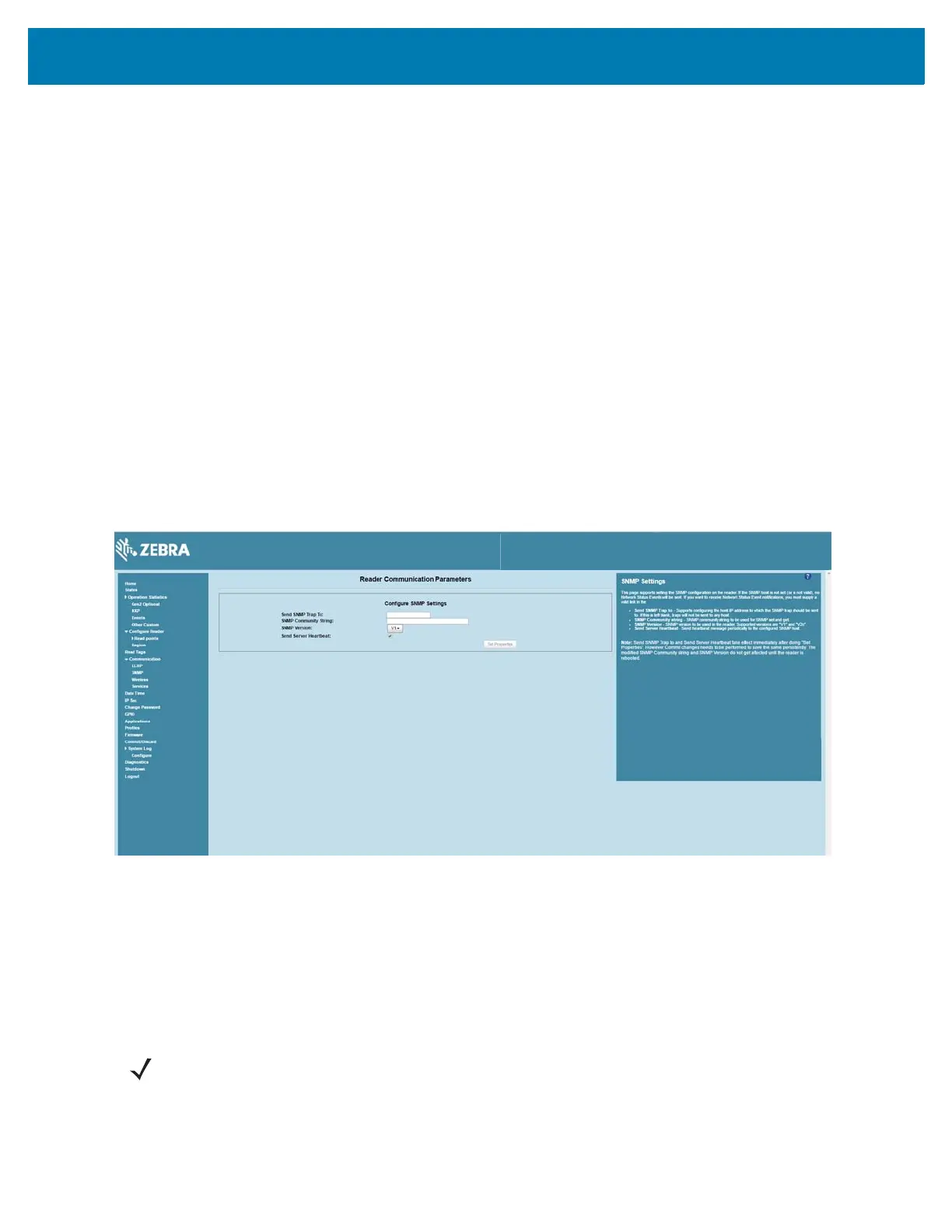

Figure 46 Configure SNMP Settings Window
Use this window to configure the SNMP host settings to allow sending network status events and
receiving network status event notifications:
• Send SNMP Trap To - Configures the host IP address to which the SNMP trap is sent. Leave this
blank to send no traps to any host.
• SNMP Community String - SNMP community string to use for SNMP set and get.
• SNMP Version - SNMP version to use in the reader. Supported versions are V1 and V2c.
• Send Server Heartbeat - Sends a heartbeat message periodically to the configured SNMP host.
NOTE: Send SNMP Trap To and Send Server Heartbeat take effect immediately after clicking Set
Properties. However, perform a Commit to persist the changes. The modified SNMP Community String
and SNMP Version are not affected until the reader reboots.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
