Zebra FX7500 Integration Guide

Wi-Fi Configuration
105
Connecting to a Peer Device over Bluetooth Using a Bluetooth Dongle
To connect to a peer device over Bluetooth using a USB Bluetooth dongle on the FX7500 and FX9600:
1. Plug the supported Bluetooth dongle into the USB host port on the FX Reader. The following Bluetooth
dongles are supported:

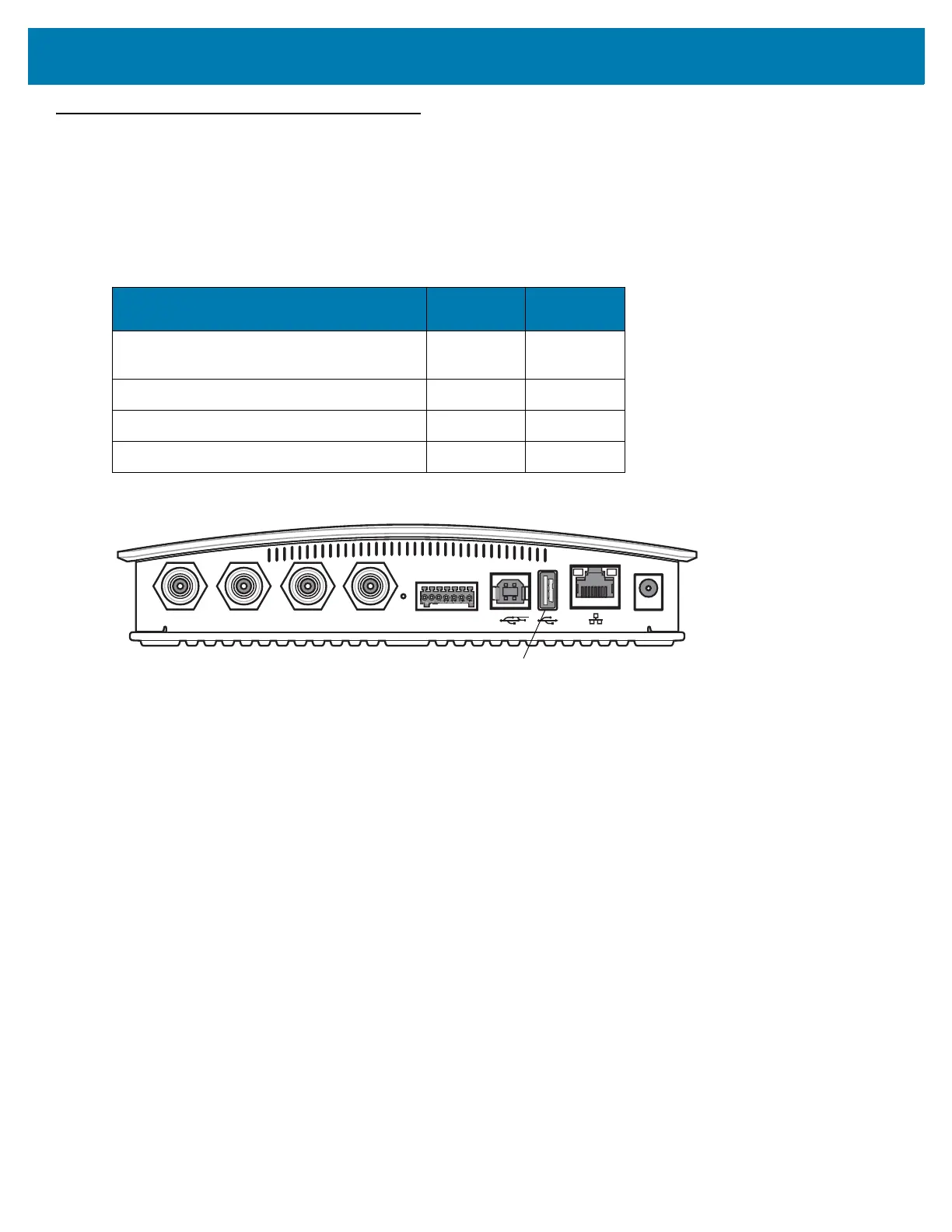

Figure 74 Supported Bluetooth Dongles.
Figure 75 USB Host Port Location for Dongle
2. To confirm that the Bluetooth dongle is detected properly, log in to the reader Administrator Console.
On the
Home page ensure the USB Port Status displays Device Connected. Hover the mouse pointer over
this link to display the Bluetooth dongle information.
Dongle Model
Zebra
FX7500
Zebra
FX9600
Bluetooth CSR 4.0 dongle Qualcomm /
Atheros CSR8510
No Yes
Bluetooth 3.0+HS Ralink RT5370L No Yes
Asus Mini Bluetooth Dongle USB-BT211 Yes Yes
MediaLink Bluetooth Dongle MUA-BA3 Yes Yes
Port 1 Port 2 Port 3 Port 4 GPIO 24 VDC
USB Host Port

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
