Zebra FX7500 Integration Guide

Installation and Communication
30
Mounting the FX9600 Reader
The FX9600 is equipped with two mounting flanges and slotted keyholes that accept three #8 (M4)
mounting screws. Pre-drill mounting surface according to the following dimensions. The mounting
surface must be able to support up to 10 pounds (2.3 kg).

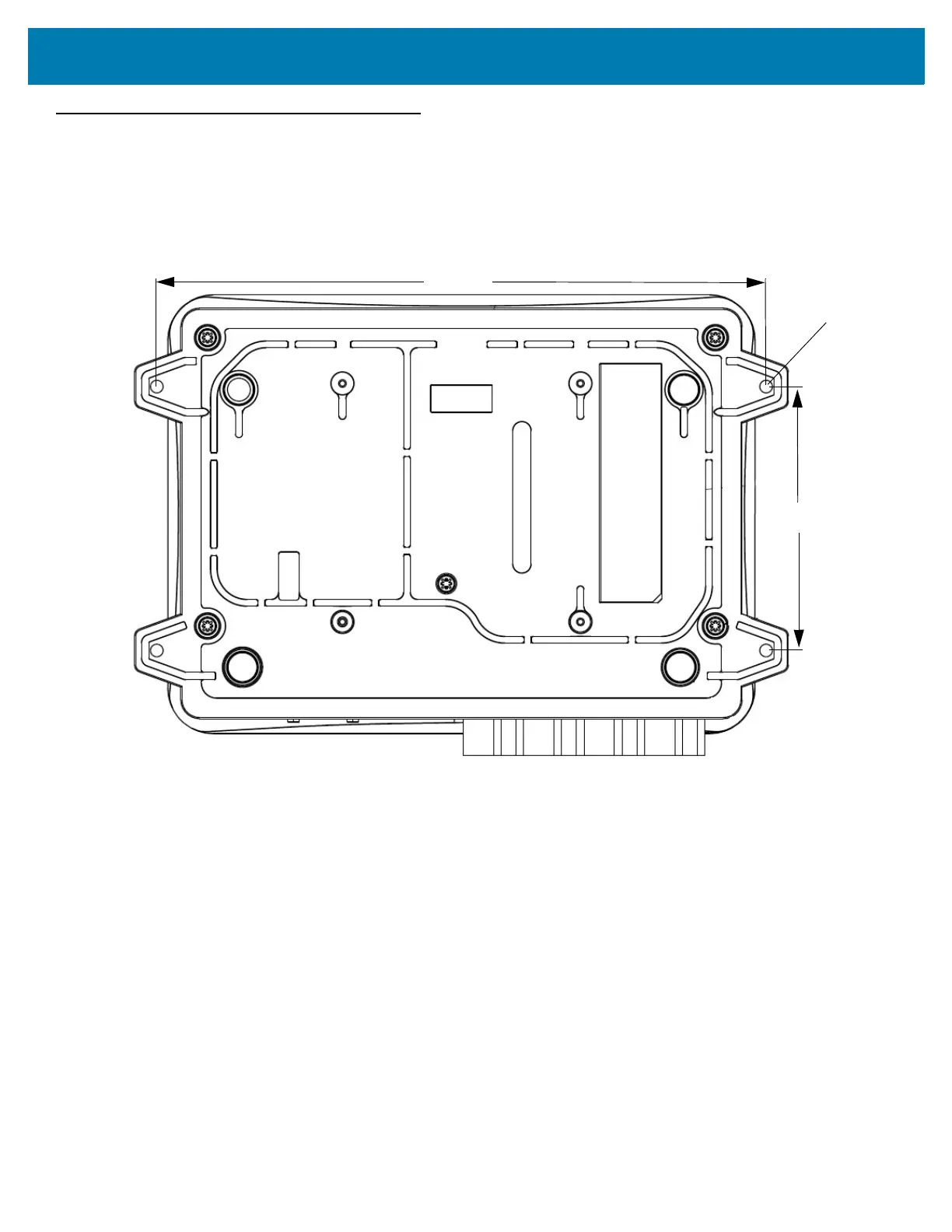

Figure 16 FX9600 Mechanical Dimensions
Concrete Wall Mounting
To mount the RFID Reader to a hollow concrete block wall, Zebra recommends metal sleeve type concrete
anchors that accept #8 screws and flat washers.
Wood or Metal Wall Mounting
To mount the RFID Reader to a wood or sheet metal wall, Zebra recommends either #8 x 1 inch wood
screws or #8 x 1 inch sheet metal screws and washers.
Drywall Mounting
To mount the RFID Reader to drywall, Zebra recommends either #8 toggle bolts or #8 drywall anchors.
VESA Mounting
The FX9600 may be mounted via four VESA hole on 100 mm x 100 mm pattern using 10-32 screw.
Mounting
Tab (4)
110.7 mm
(4.4”)
256 mm
(10.10”)

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
