Zebra FX7500 Integration Guide

Administrator Console
50

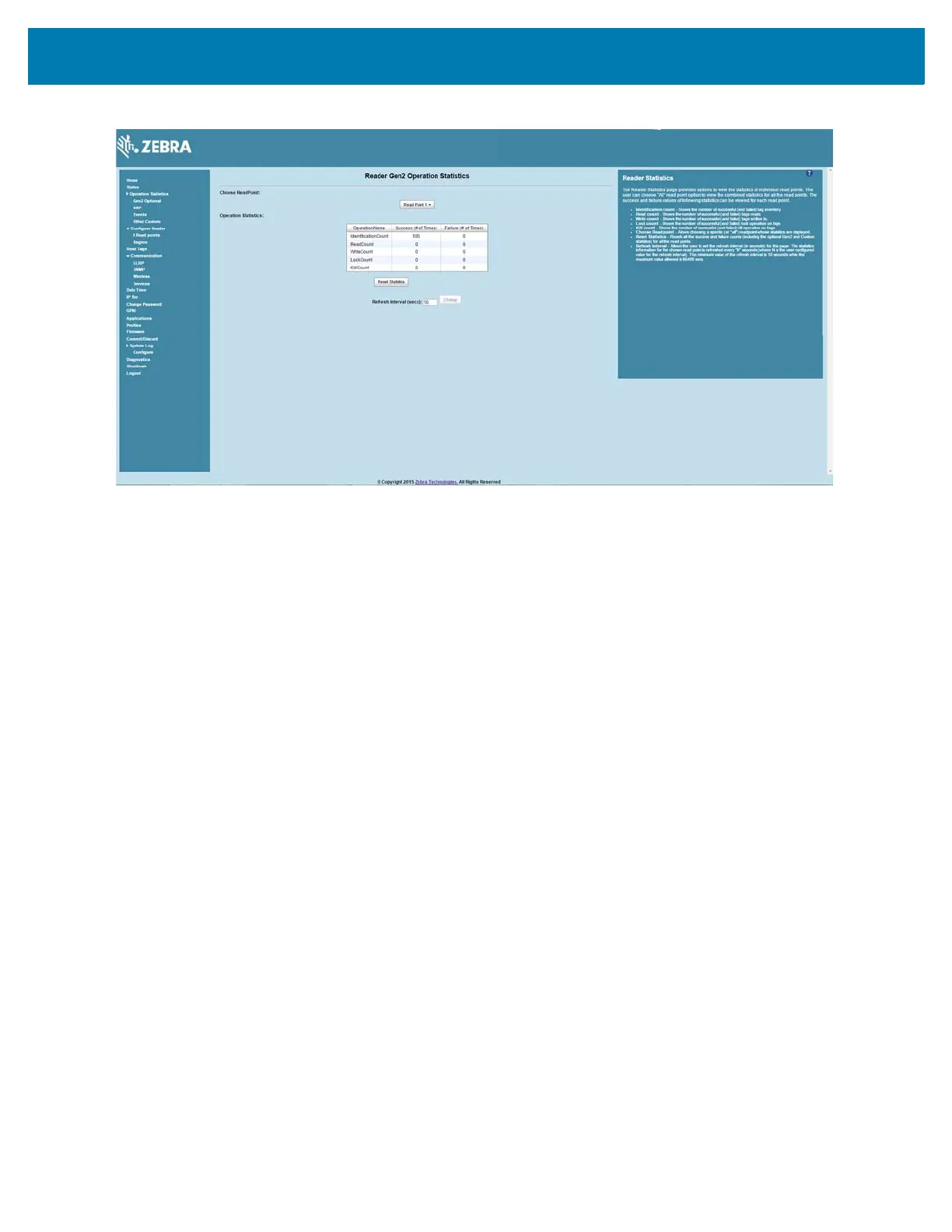

Figure 29 Reader Operation Statistics Window
• Choose ReadPoint - Select a specific read point or select All from the drop-down list to display the
statistics.
• IdentificationCount - Displays the number of successful (and failed) tag inventories.
• ReadCount - Displays the number of successful (and failed) tag reads.
• WriteCount - Displays the number of successful (and failed) tag writes.
• LockCount - Displays the number of successful (and failed) lock operations on tags.
• KillCount - Displays the number of successful (and failed) kill operations on tags.
• Reset Statistics - Resets all success and failure counts (including the optional Gen2 and Custom
statistics) for all read points.
• Refresh Interval - Sets the refresh interval (in seconds) for this window. The statistics information for
the chosen read point is refreshed every
N seconds (where N is the set refresh interval). The
minimum value is 10 seconds and the maximum value allowed is 86,400 seconds. Input a new
value and click
Change to set a new interval.
Reader Gen2 Optional Operation Statistics
Select Gen2 Optional to view the Reader Gen2 Operation Statistics window. This window provides options to
view the statistics of read points for the optional Gen2 operations the reader supports.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
