Zebra FX7500 Integration Guide

Administrator Console
51

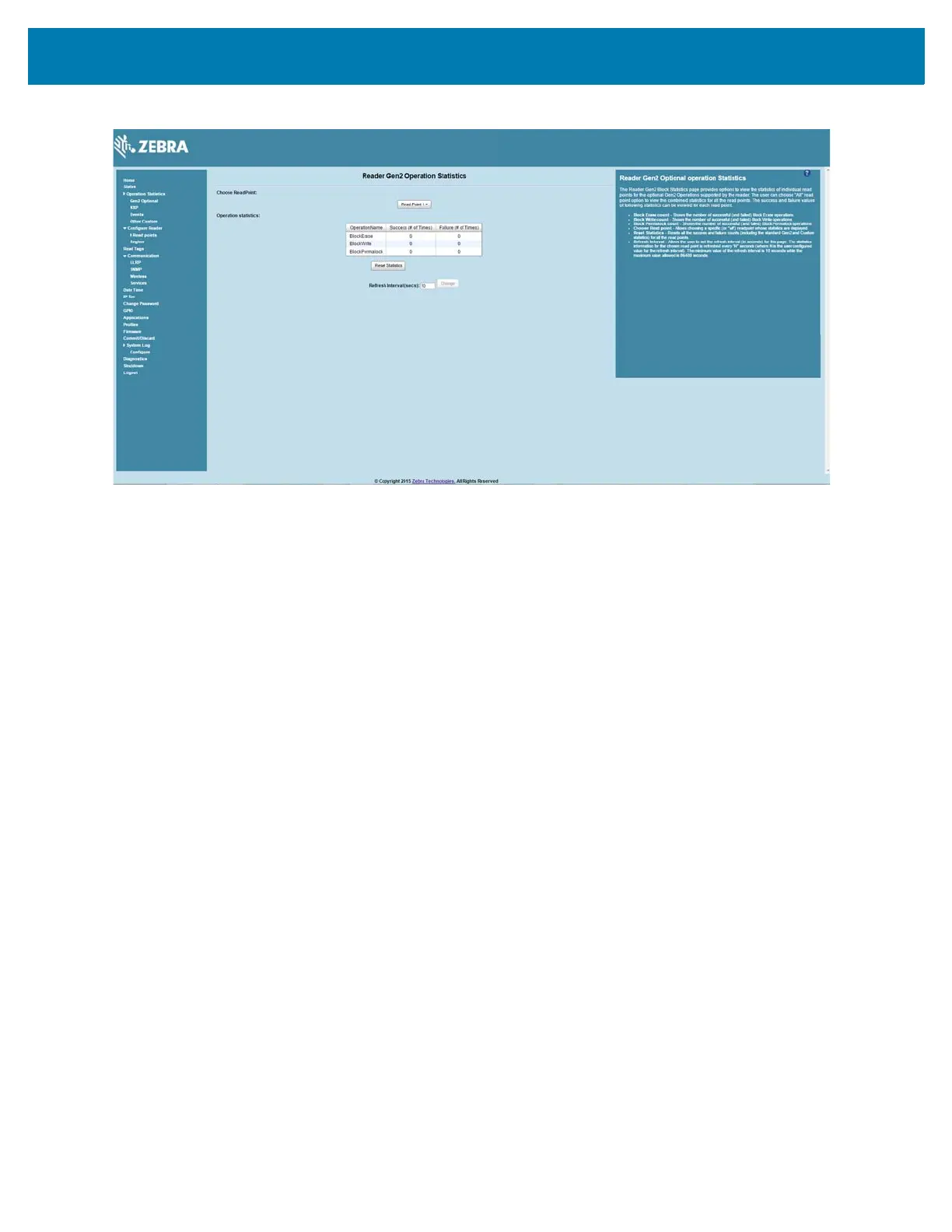

Figure 30 Reader Gen2 Operation Statistics Window
• Choose ReadPoint - Select a specific read point from the drop-down list to display the statistics, or
select
All to view the combined statistics for all read points.
• BlockErase - Displays the number of successful (and failed) block erase operations.
• BlockWrite - Displays the number of successful (and failed) block write operations.
• BlockPermalock - Displays the number of successful (and failed) block permalock operations.
• Reset Statistics - Resets all success and failure counts (including the standard Gen2 and custom
statistics) for all read points.
• Refresh Interval - Sets the refresh interval (in seconds) for this window. The statistics information for
the chosen read point is refreshed every
N seconds (where N is the set refresh interval). The
minimum value is 10 seconds and the maximum value allowed is 86,400 seconds. Input a new
value and click
Change to set a new interval.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
