Zebra FX7500 Integration Guide

Wi-Fi Configuration
107

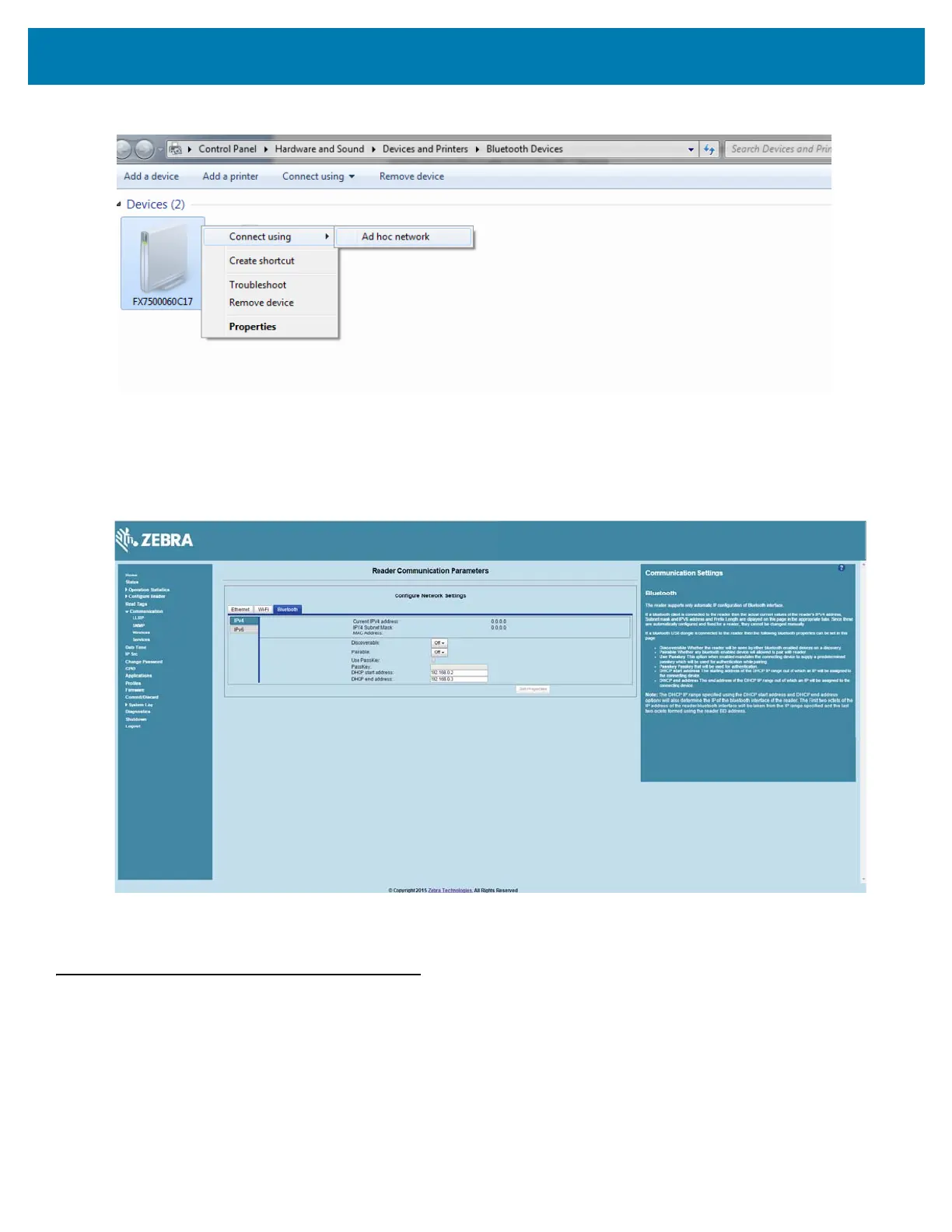

Figure 78 Connecting to the Reader
7. The IP address assigned to the Bluetooth interface is 192.168.XX.XX. The last 2 octets are the last 2
octets of the Bluetooth MAC address (found in the
Properties window on the PC once the Bluetooth
connection is established). Also find this in the
Communication > Bluetooth page. Both IPV4 and IPV6
based IP address are supported for adhoc Bluetooth connection between the reader and the client.
Figure 79 Communication Bluetooth Tab
Open the web page or sample application to connect to the Bluetooth IP (192.168.67.21 in Figure 79) and
read tags.
Copying Files to the Reader
The FX7500 and FX9600 RFID readers support the SCP, FTP, and FTPS protocols for copying files. See
Copying Files To and From the Reader for instructions on copying files to /apps directory.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
