Zebra FX7500 Integration Guide

Administrator Console
90
• To copy the log file to a specific location on the host select an option from the Export drop-down.
Enter the location in the File Path field, then select the Export File button.
Configure System Log
This window configures system log settings. If the system log host is not set (or is not valid), log
messages are not sent.

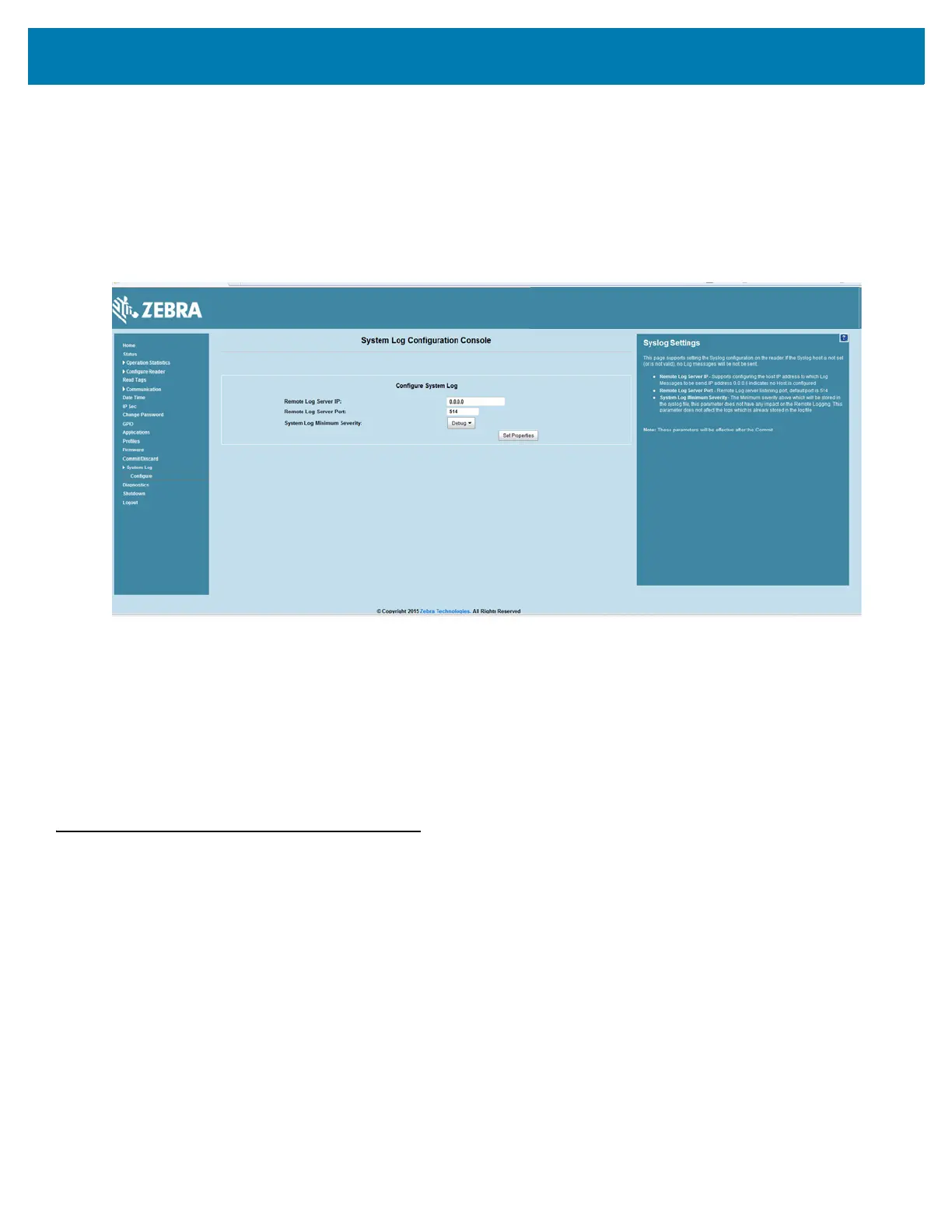

Figure 58 Configure System Log Window
This window offers the following options:
• Remote Log Server IP - Configures the host IP address to which log messages are sent. IP address
0.0.0.0 indicates that no host is configured.
• Remote Log Server Port - Remote log server listening port. The default port is 514.
• System Log Minimum Severity - The minimum severity above which data is stored in the log file.
This option does not impact remote logging or the logs already stored in the log file.
You must select Commit to activate these settings.
Reader Diagnostics
Select Diagnostics to view the Reader Diagnostics window, which allows running diagnostics and viewing
the diagnostics report.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
