Zebra FX7500 Integration Guide

Administrator Console
76
Configure LLRP Settings
Figure 44 Select LLRP to view and set the LLRP settings. By default, LLRP activates in server mode,
where LLRP clients can connect to the reader using the port number specified in the
Client port field. You
can also configure the reader in LLRP client mode. In this case, configure the LLRP server address in this
web page as well. LLRP cannot be disabled since it is the primary native protocol for RFID for the reader.

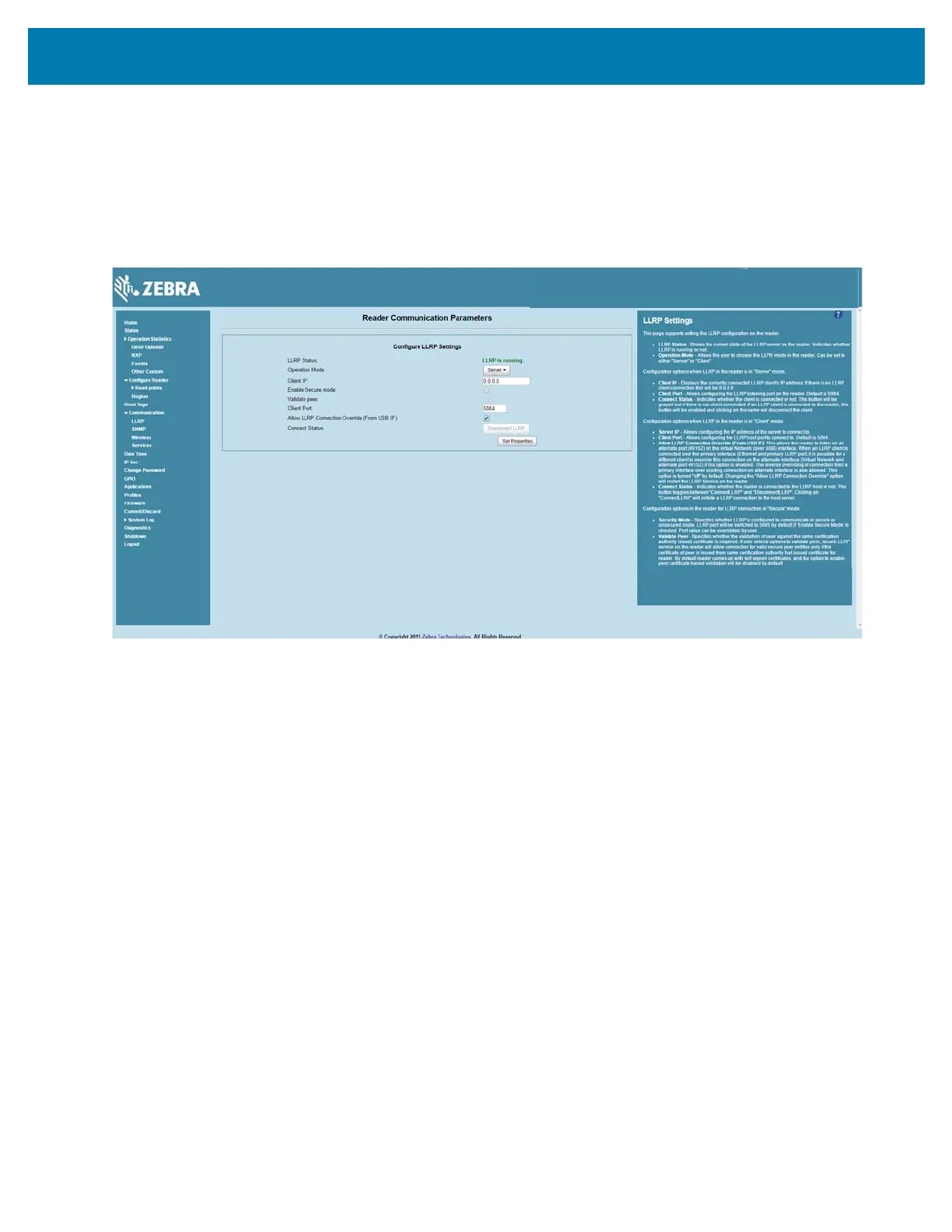

Figure 45 Configure LLRP Settings Window
This window offers the following fields:
• LLRP Status - Displays the current state of the LLRP server on the reader. Indicates whether LLRP
is running.
• Operation Mode - Sets the LLPR mode in the reader to either Server or Client.
LLRP configuration options when the reader is in Server mode:
• Client IP - Displays the currently connected LLRP client's IP address. If there is no LLRP client
connection, this is 0.0.0.0.
• Client Port - Configures the LLRP listening port on the reader. The default is 5084.
• Connect Status - Indicates whether the client is connected. This button is grayed out if there is no
client connected. If an LLRP client is connected to the reader, this button is enabled; click this
button to disconnect the client.
LLRP configuration options when the reader is in Client mode:
• Server IP - Configures the IP address of the server to connect to.
• Client Port - Configures the LLRP host port to connect to. The default is 5084.
• Allow LLRP Connection Override (From USB IF) - This allows the reader to listen on an alternate
port (49152) on the virtual network (over USB) interface. When an LLRP client is connected over
the primary interface (Ethernet and primary LLRP port), a different client can override this
connection on the alternate interface (Virtual Network and alternate port 49152) if this option is
enabled. This also permits overriding a connection from a primary interface over an existing

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
