Zebra FX7500 Integration Guide

Static IP Configuration
136

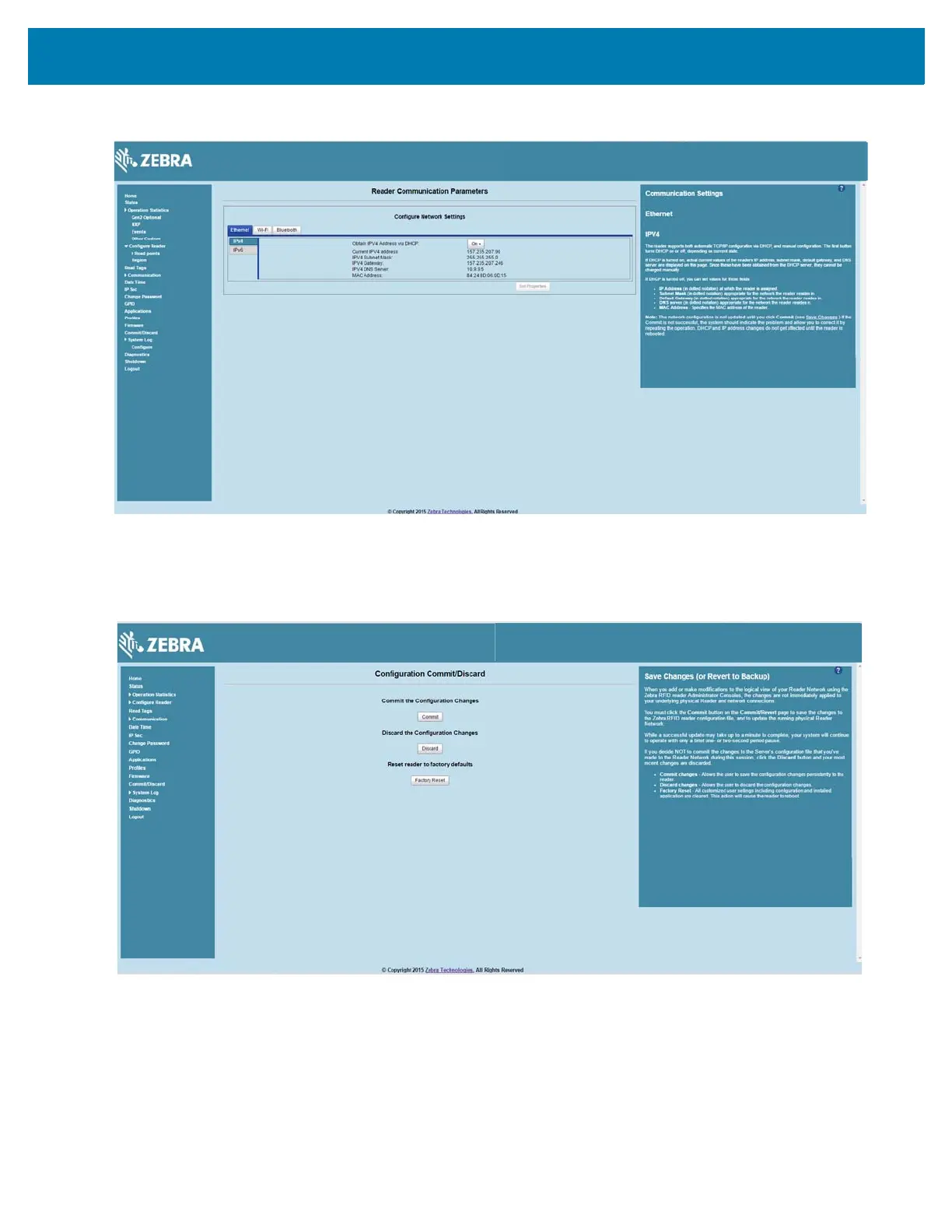

Figure 105 Reader Communication Parameters Window
9. Click Set Properties.
10. Click Commit/Discard, then click the Commit button.
Figure 106 Commit/Discard Window
11. The message Reader IP Address config has changed. Needs reader reboot to take effect appears. Reset the
device and use the reader with the static IP network.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
