Zebra VC80 User Manual

2 - 2 VC80 User Guide
Installing the VC80
Electrical Installation
There are various electrical potentials when installing the unit on a vehicle such as a forklift.

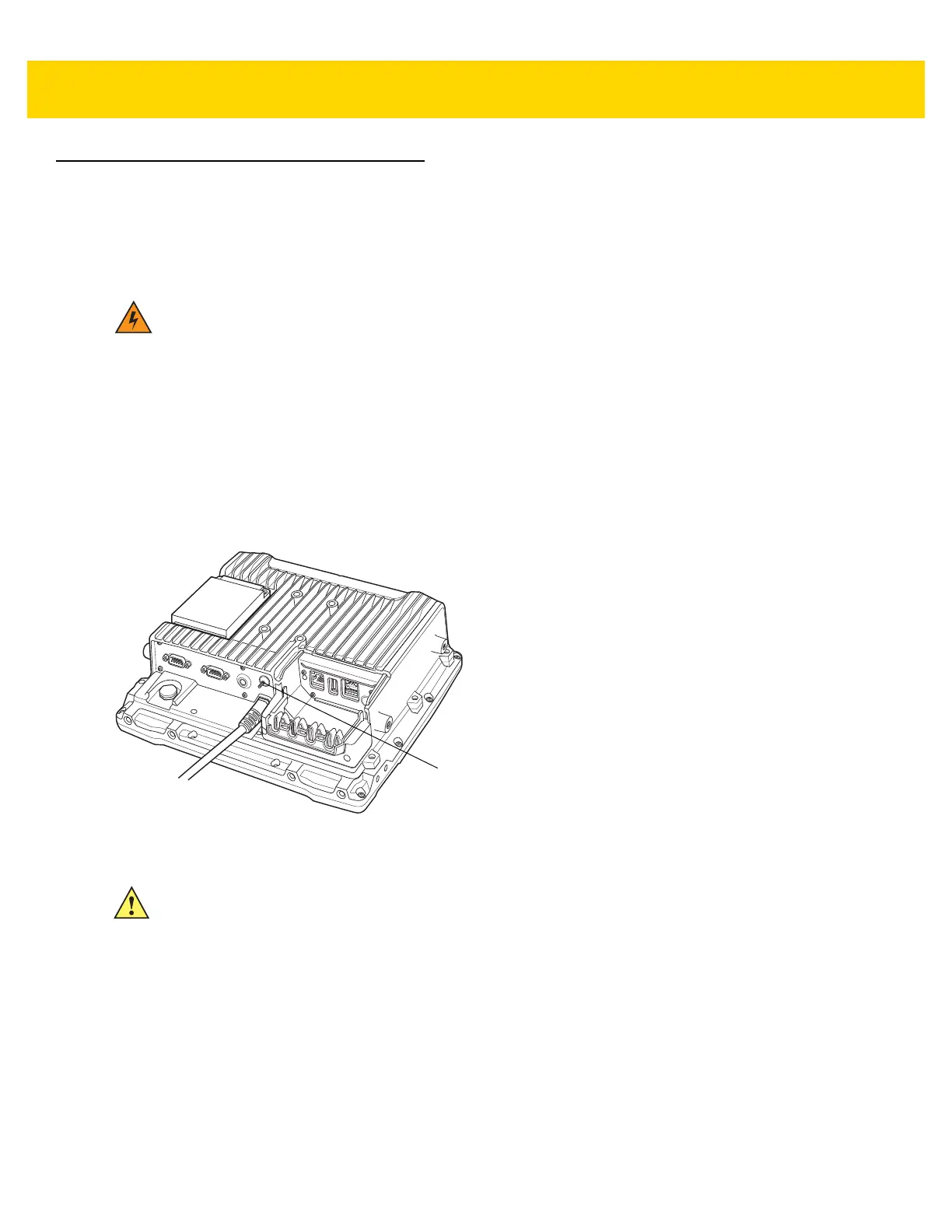

Figure 2-1 VC80 Ground Lug
Most electrically driven forklift vehicles have floating chassis connected to
neither DC+ or DC-. However, electrical faults can cause the battery + or - to be
connected to the chassis via low resistance paths. All connected peripherals
must be completely isolated.
The VC80 accepts DC power sources with a minimum of 10VDC nominal and
48VDC nominal. A Power Pre-regulator is required for voltages above 48VDC
nominal.
Applying a voltage above 48VDC nominal without the pre-regulator or reversing
polarity may result in permanent damage to the VC80 and voids the product
warranty.
Ground Lug
CAUTION Attach the VC80 connecting cable as close to the battery as possible. Connecting the VC80
to large electrical loads, such as converters for the forklift motor may result in random
restarts, malfunctions and/or irreparable damage to the device.
To connect devices fed by other power sources to the VC80, such as printers, power up the
peripheral devices at the same time or after the VC80 to avoid start-up problems,
malfunctions or irreparable damage to the device.

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
