VC80 Drill Hole Dimensions

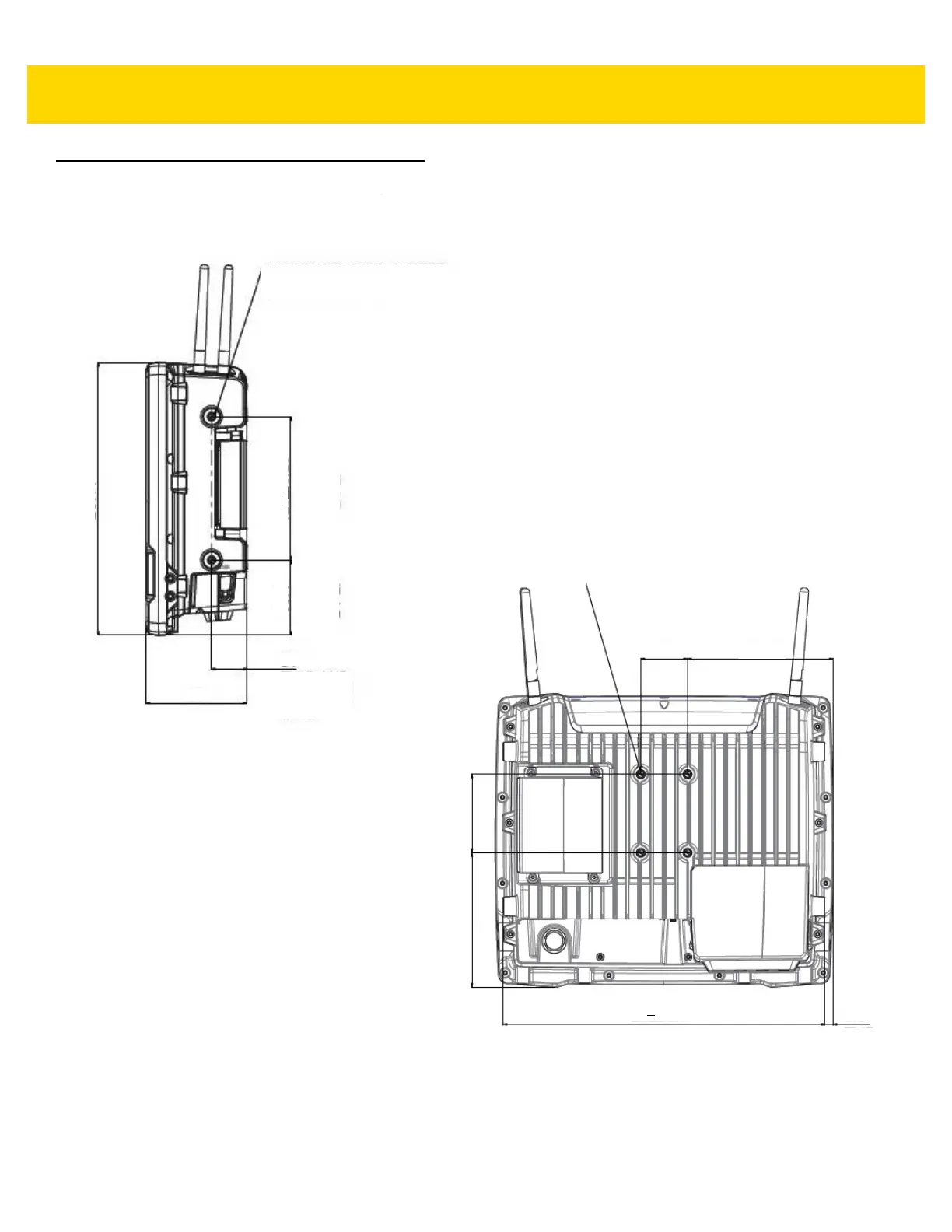

Figure A-1 VC80 Drill Hole Dimensions
Back View
(4) M6X6 HELICOIL INSERT
HOLE DEPTH: 8
(4) M6X6 HELICOIL INSERT
HOLE DEPTH: 8
THIS AND
FAR SIDE
2PL
THIS AND
FAR SIDE
2PL
THIS AND
FAR SIDE
2PL
237.4
88
31
65.4
125+0.25
38.1 118.5
262+0.7
63.5108.7
6.6
TYP
Side View
