Zebra VC80 User Manual

3 - 20 VC80 User Guide
Power for VC80 Windows 7
• Interface Power Configuration - Enable/disable power for serial and USB ports.
• Vehicle Ignition Detection
• Start VC when vehicle ignition changes from OFF to ON state.
• Shut down VC when vehicle ignition changes from ON to OFF state.
• Enter desired minutes to delay in the Delay field.

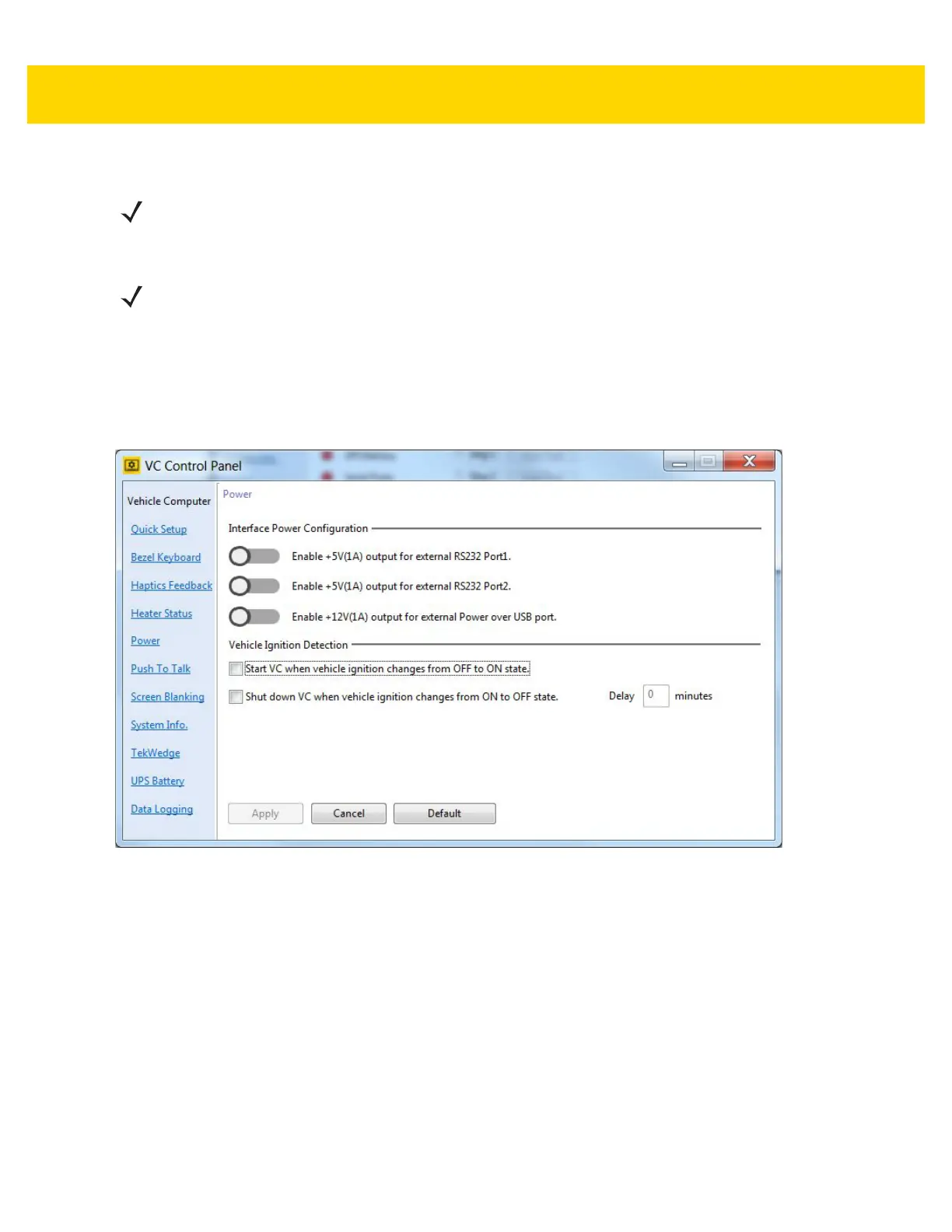

Figure 3-20 Power Settings (VC80 with Windows 7)
NOTE Ignition detect requires a CA1220 power extension cable.
NOTE To configure a serial scanner, turn on the power to the port and in TekWedge settings, enable
the port and TekWedge (see
TekWedge for VC80 Windows 7 on page 3-24 ).

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
