4 - 10 VC80 User Guide
Quick Setup for VC80 Windows 10
Select Start Menu > VC Control Panel > Quick Setup to configure the following quick setup options.
Links to Microsoft or third party utilities:
• Touch Panel Calibration - Calibrate the touch panel.
• WLAN Configuration - Configure WLAN.
• Network Configuration - Configure network parameters such as, Static IP address and DHCP.
• On-Screen Keyboard Configuration - My-T-Soft Keyboard configuration.
VC80 control panel:
• Manage VC Configuration - Load, save, or restore default configuration files.

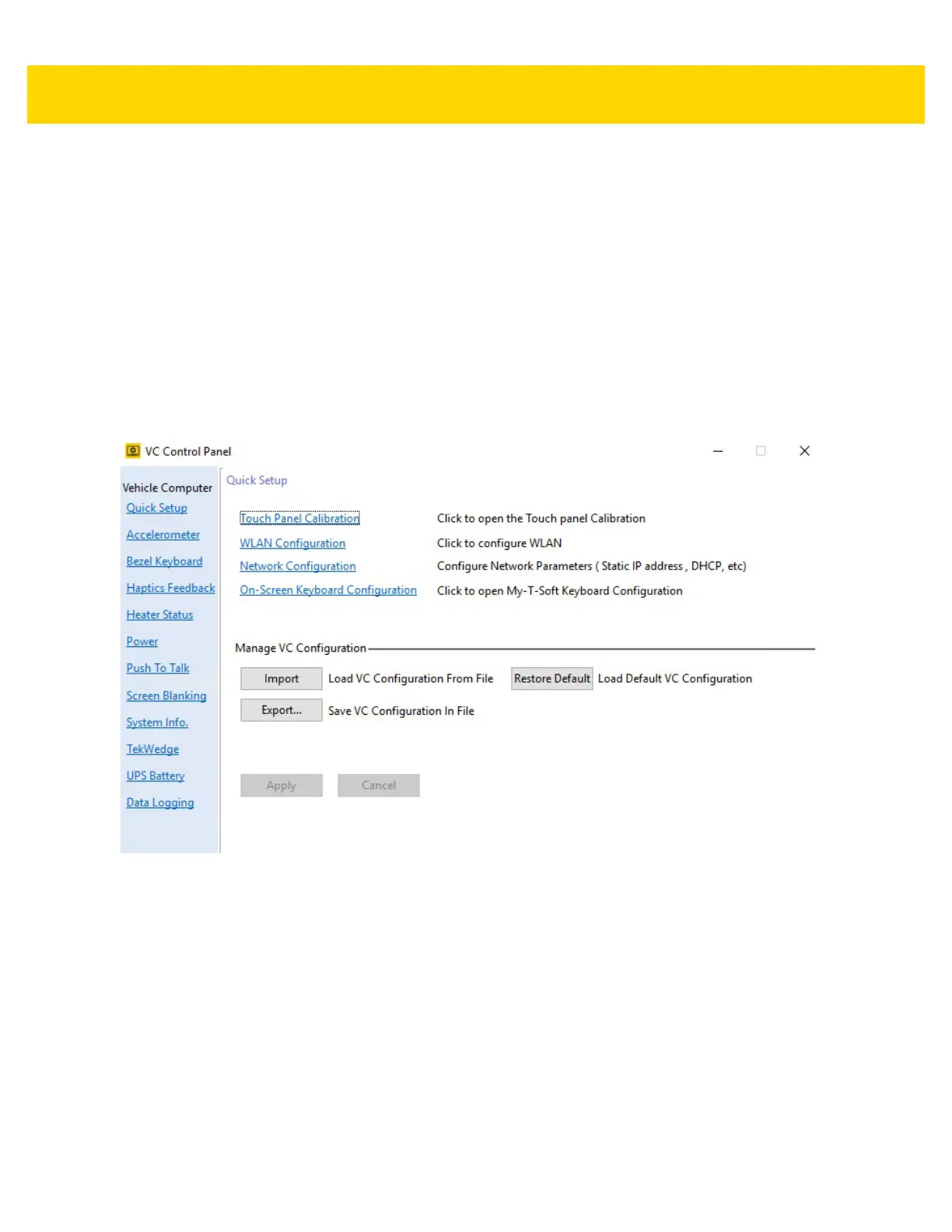

Figure 4-10 Quick Setup Settings (VC80 with Windows 10)

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
