Zebra VC80 User Manual

Software Windows 7 3 - 11
Touch Panel Calibration for VC80 Windows 7
Hardware
Associates the pointer device with the monitor/desktop area that is controlled by the device and shows the
hardware port information.
• Handling Whole Desktop - Whole indicates the primary monitor.
• Connected to USB Port - Displays the port connected to the device.
• Add a New Device - Option to add a device. Only non USB devices are manually added. USB devices
are automatically added.
• Remove this Device - Option to remove a device. Only non USB or inactive USB are manually
removed.

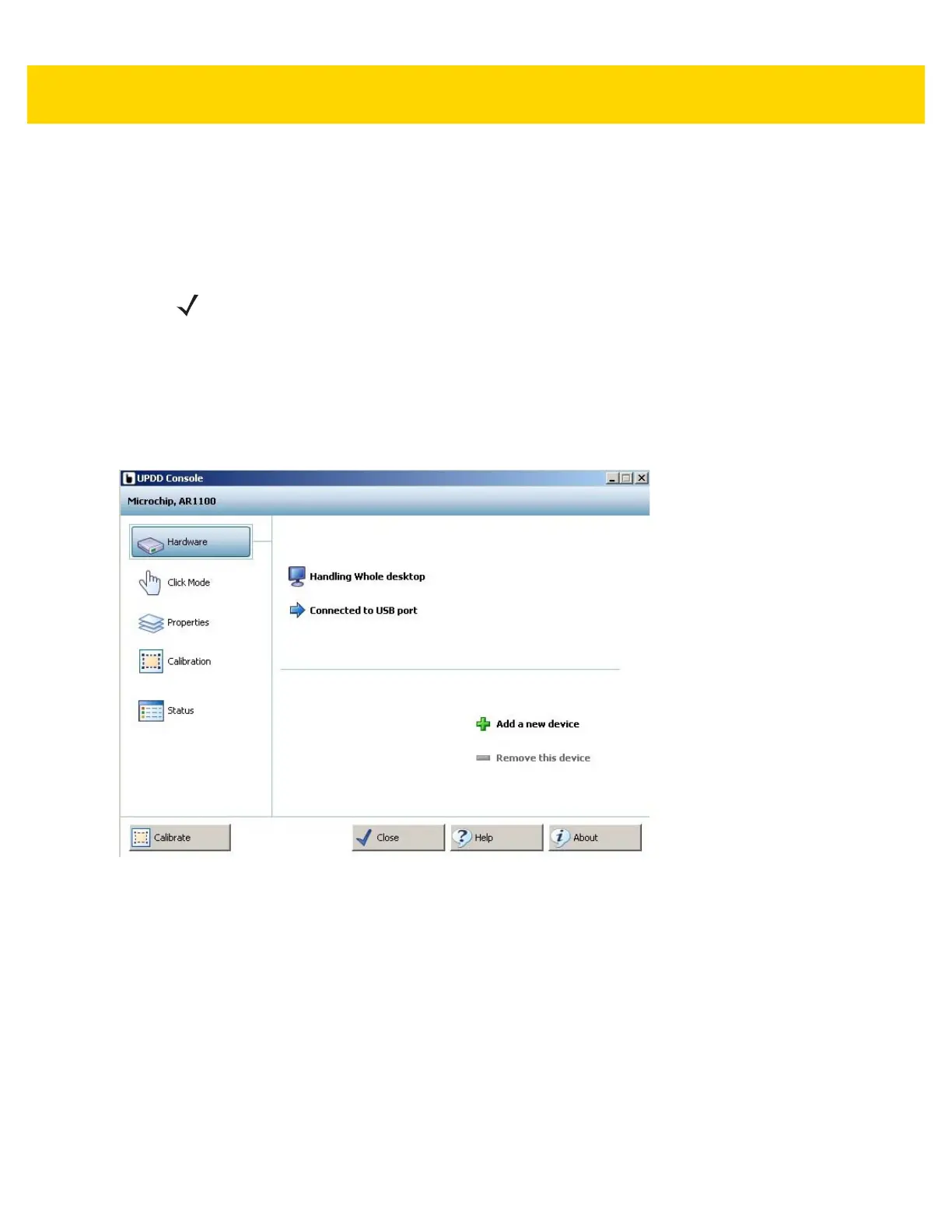

Figure 3-11 Hardware Settings (VC80 with Windows 7)
NOTE Select Help for detailed information on the Touch Panel Calibration options.

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
