Zebra VC80 User Manual

Software Windows 7 3 - 5
3. Select TekWedge and select Enable TekWedge to support serial scanners.
4. Under Properties, make the following selections:
• Enable Good Scan Beep - When enabled, a beep sounds upon a successful decode. When disabled, a
beep does not sound upon a successful decode.
• Ignore Caps Lock and Shift - When enabled, the state of Caps Lock and Shift keys do not affect the data
received from the scanner. When disabled, the scanner data may be converted to upper/lower case based
on the current state of the Caps Lock and Shift Keys.
5. Select Config Ports.

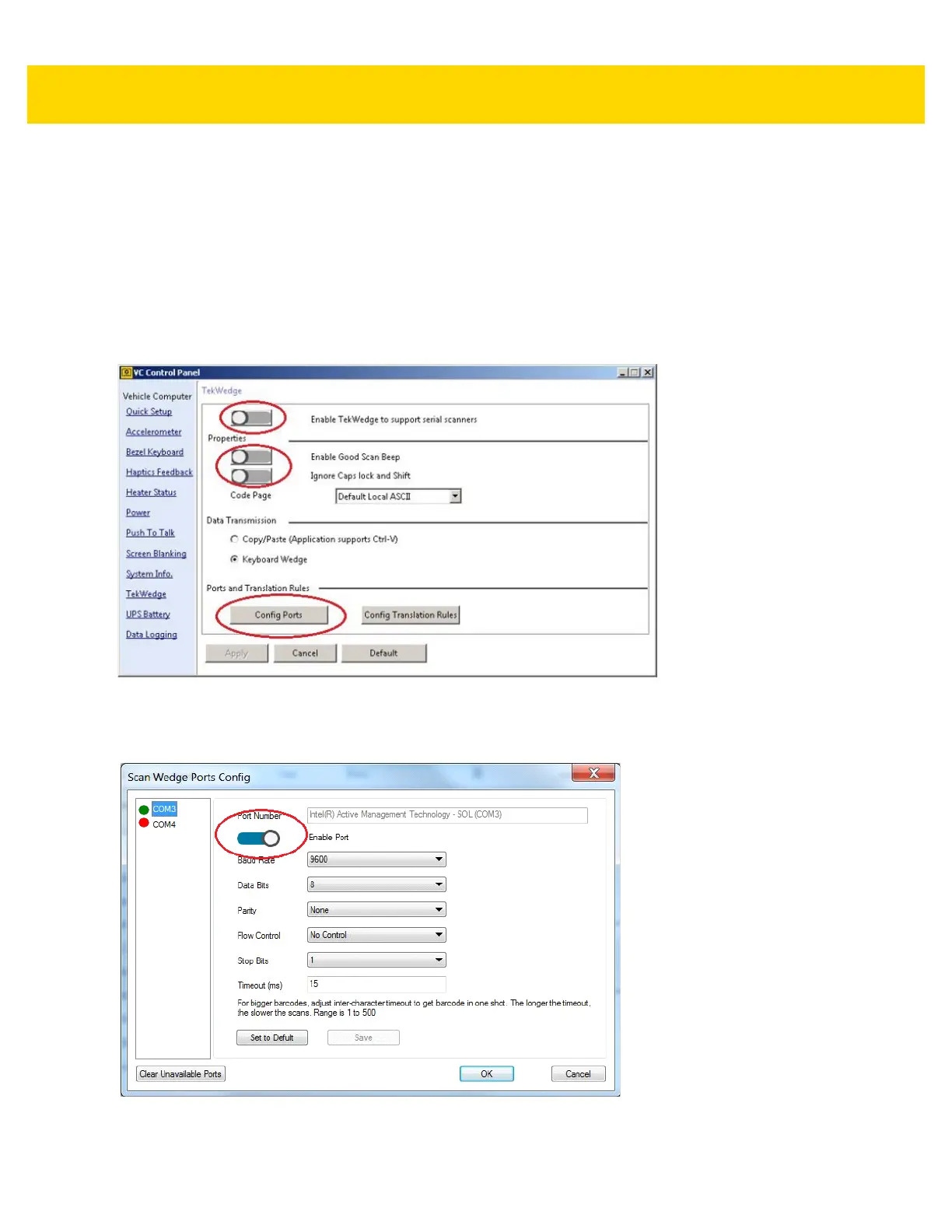

Figure 3-2 Enable TekWedge for Serial Scanners
6. Select the new COM port and select Enable Port.
Figure 3-3 Enable Port for Serial Scanner (VC80 with Windows 7)
7. Select OK.

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
