A&D AD-4971 - Calibration Settings Screen; Settings Screen (Common Settings Tab)

7 Reference Table of Screens and Menu Items - 7.3 Settings Screen (Common Settings Tab)
46
7
7.2.7.
Calibration Settings Screen
1
4
2
3

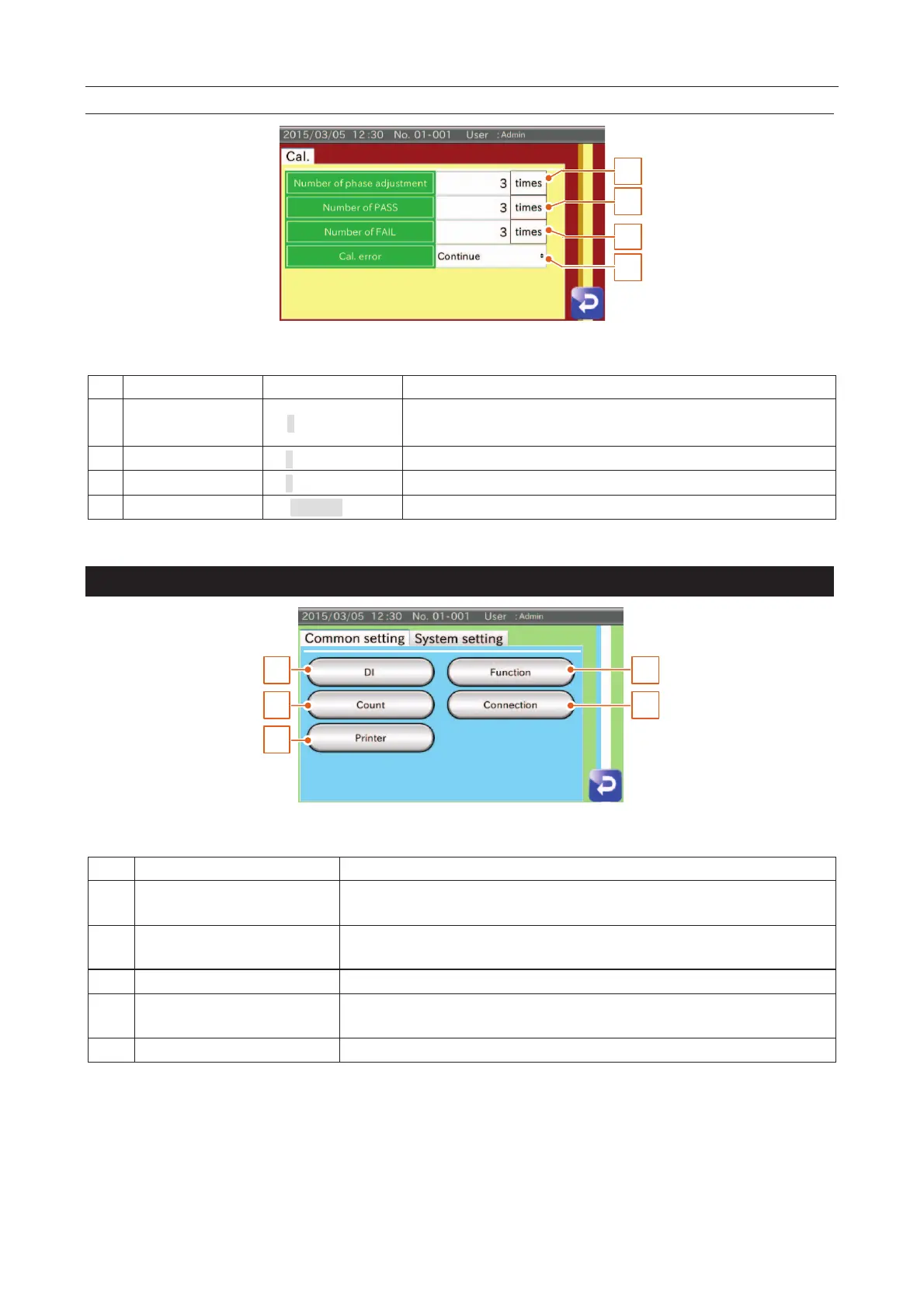

Fig. 558 CCalibration Settings Screen
No.
Name
Scope
Description
1
Number of phase
adjustment

3
(0 to 10 times)
The number of phase tracking in the calibration.

2
Number of PASS
3 (0 to 10 times)
The number of good products in the calibration.
3
Number of FAIL
3 (0 to 10 times)
The number of defective products in the calibration.
4
Cal. error
Continue, Stop
Selects a treatment at calibration error.
7.3.
Settings Screen (Common Settings Tab)
1
3
5
2
4
Fig. 559 SSettings Screen (Common Settings TTab)
No.
Name
Description
1
DI setting
s button
Displays the "DI settings" screen including the "Configuration" tab and "DI
behavior" tab.
2
Function settings button
Displays the "Function settings" screen including the "Function 1" and
"Function 2" tabs and "Belt speed adjustment" screen.
3
Count settings button
Displays the "Count settings" screen.
4
Connection settings button
Displays the "Connection settings" screen including the "Serial interface" tab
and "Modbus interface" tab.
5
Printer settings button
Displays the "Printer settings" screen.
