A&D AD-4971 - Function Settings Screen (Function 2 Tab); Function Settings Screen (Function 3 Tab)

7 Reference Table of Screens and Menu Items - 7.3 Settings Screen (Common Settings Tab)
49
7
7.3.4.
Function Settings Screen (Function 2 Tab)
3
4
2
1

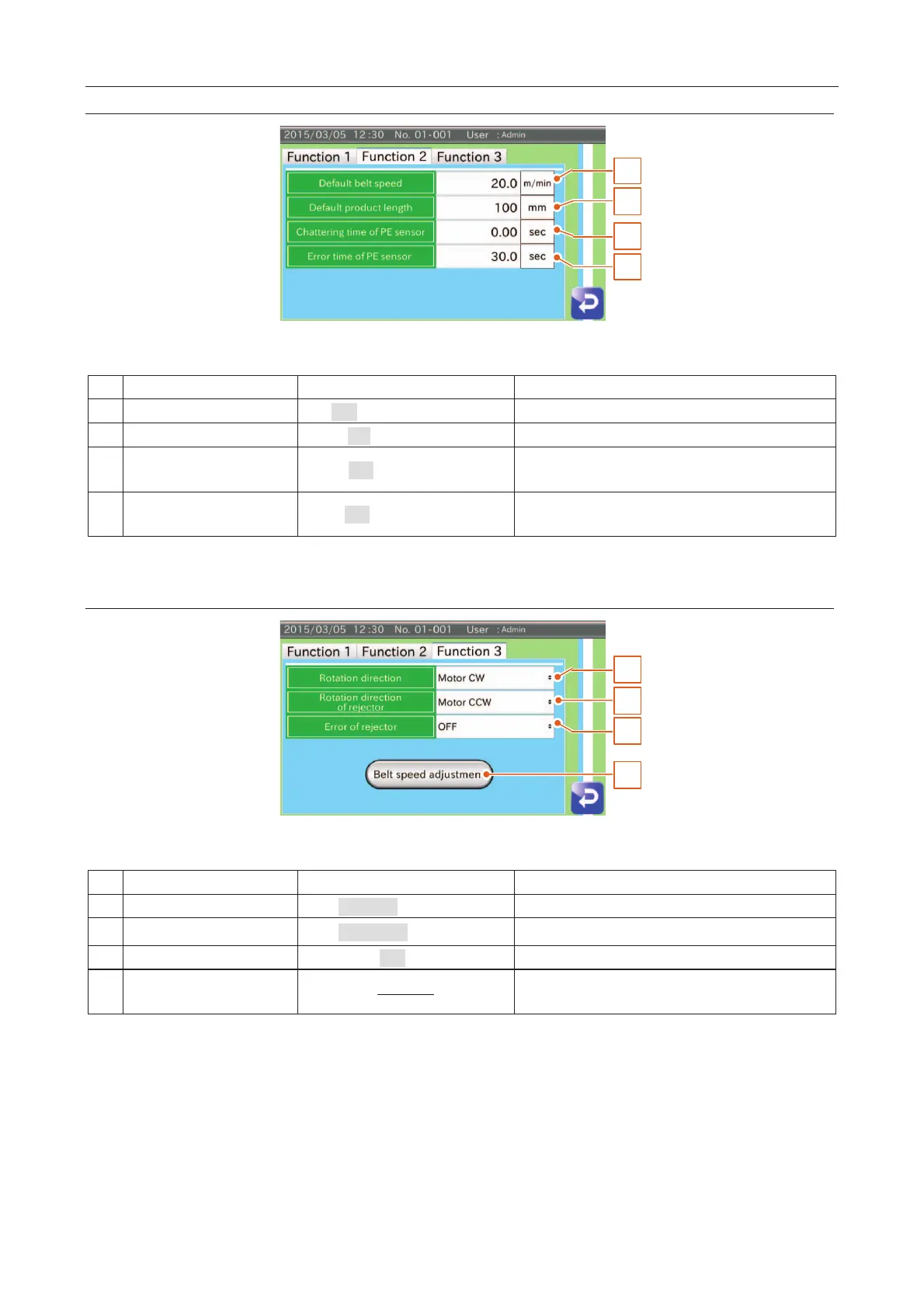

Fig. 663 FFunction Settings Screen (Function 2 Tab)
No.
Name
Scope
Description
1
Default belt speed
20.0 (10.0 to 60.0 m/min.)
Initial speed of the conveyor belt.
2
Default product length
100 (1 to 9999 mm)
Initial value of the product length.
3
Chattering prevention time
of PE sensor
0.00 (0 to 9.99 sec.)
The time to prevent chattering.
4
PE sensor error time
30.0 (0.0 to 99.9 sec.)
The time to recognize an error.
If 0 is set, no errors will be recognized.
7.3.5.
Function Settings Screen (Function 3 Tab)
2
3
1
4
Fig. 664 FFunction Settings Screen (Function 3 Tab)
No.
Name
Scope
Description
1
Rotation direction
Motor CW, Motor CCW
Rotation direction of the motor.
2
Rejector rotation direction
Motor CCW, Motor CW

Rejector rotation direction of the motor.

3
Rejector error
OFF, ON
Check rejector error.
4
Adjust belt speed button
The dialog box is displayed and the "Belt speed
adjustment" screen can be displayed.
