7.3.8.
Connection Settings Screen (Serial Interface Tab)
3
1
5
2
4

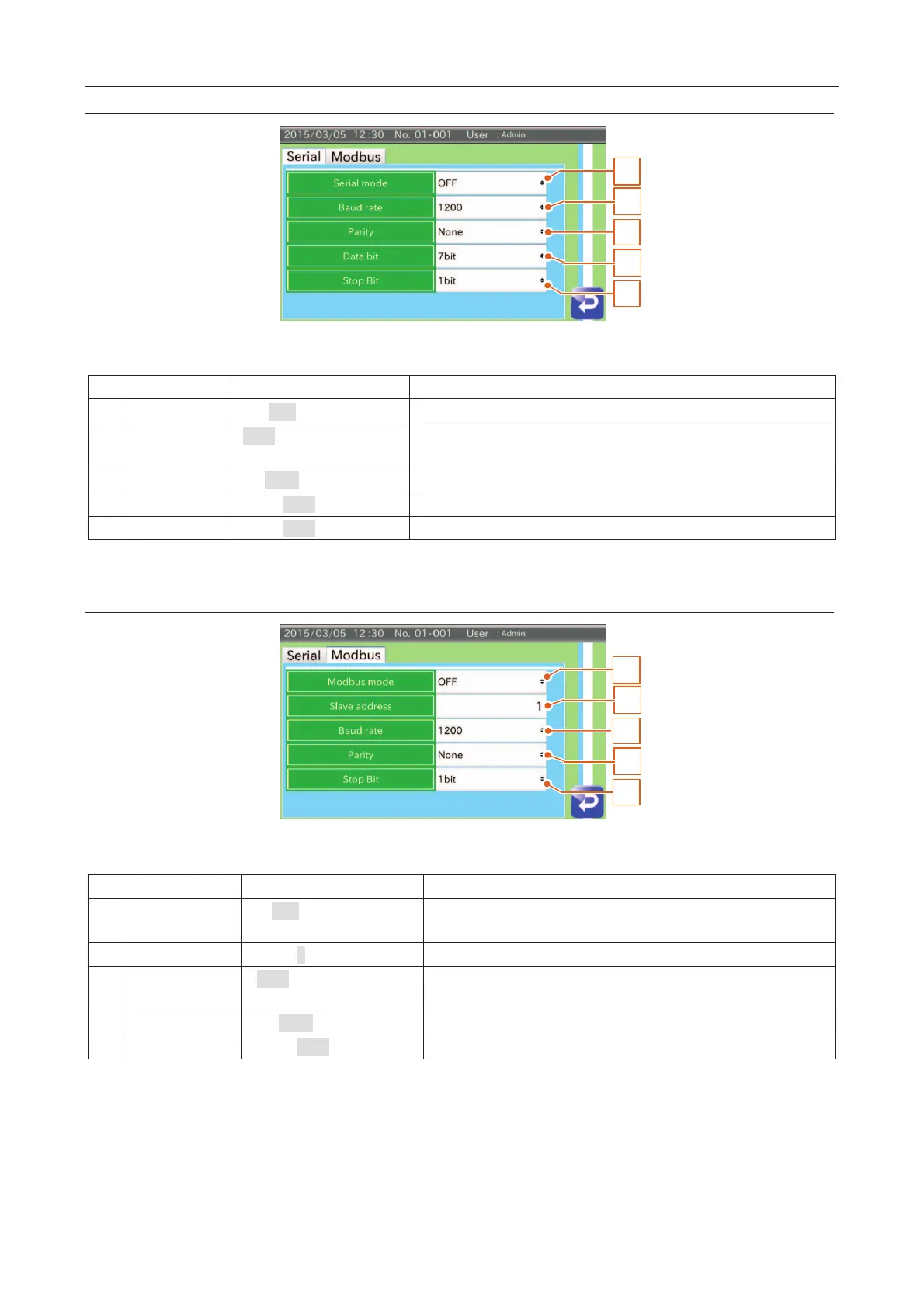

Fig. 667 CConnection Settings Screen (Serial Interface Tab)
No.
Name
Scope
Description
1
Serial mode
OFF, Cyclic print
The serial communication mode.
2
Baud
rate
1200, 2400, 4800, 9600,
19200, 38400, 115200
The baud rate of the serial communication.
3
Parity
None, Even, Odd
The parity of the serial communication.
4
Data bits
7 bits, 8 bits
Data length of the serial communication.
5
Stop bits
1 bits, 2 bits
The stop bits of the serial communication.
7.3.9.
Connection Settings Screen (Modbus Interface Tab)
3
1
5
2
4
Fig. 668 CConnection Settings Screen (Modbus Interface Tab)
No.
Name
Scope
Description
1
Modbus
mode
OFF, Modbus/RTU,
Modbus/TCP
The
Modbus communication mode.
2
Slave address
1 (1 to 247)
Address of the Modbus communication.
3
Baud rate
1200, 2400, 4800, 9600,
19200, 38400, 115200
The baud rate of the
Modbus communication.
4
Parity
None, Even, Odd
The parity of the Modbus communication.
5
Stop bits
1 bits, 2 bits
The stop bits of the Modbus communication.
