Module cooling fans
Replacing the R1i and R2i module cooling fan
WARNING!
Obey the safety instructions given in ACS880 multidrives cabinets and
modules safety instructions (3AUA0000102301 [English]). If you ignore
the safety instructions, injury or death, or damage to the equipment
can occur.
If you are not a qualified electrical professional, do not do installation
or maintenance work.
1. Stop the drive and do the steps in section Electrical safety precautions (page 44)
before you start the work.
2. Detach the power cable clamp plate and terminal blocks.

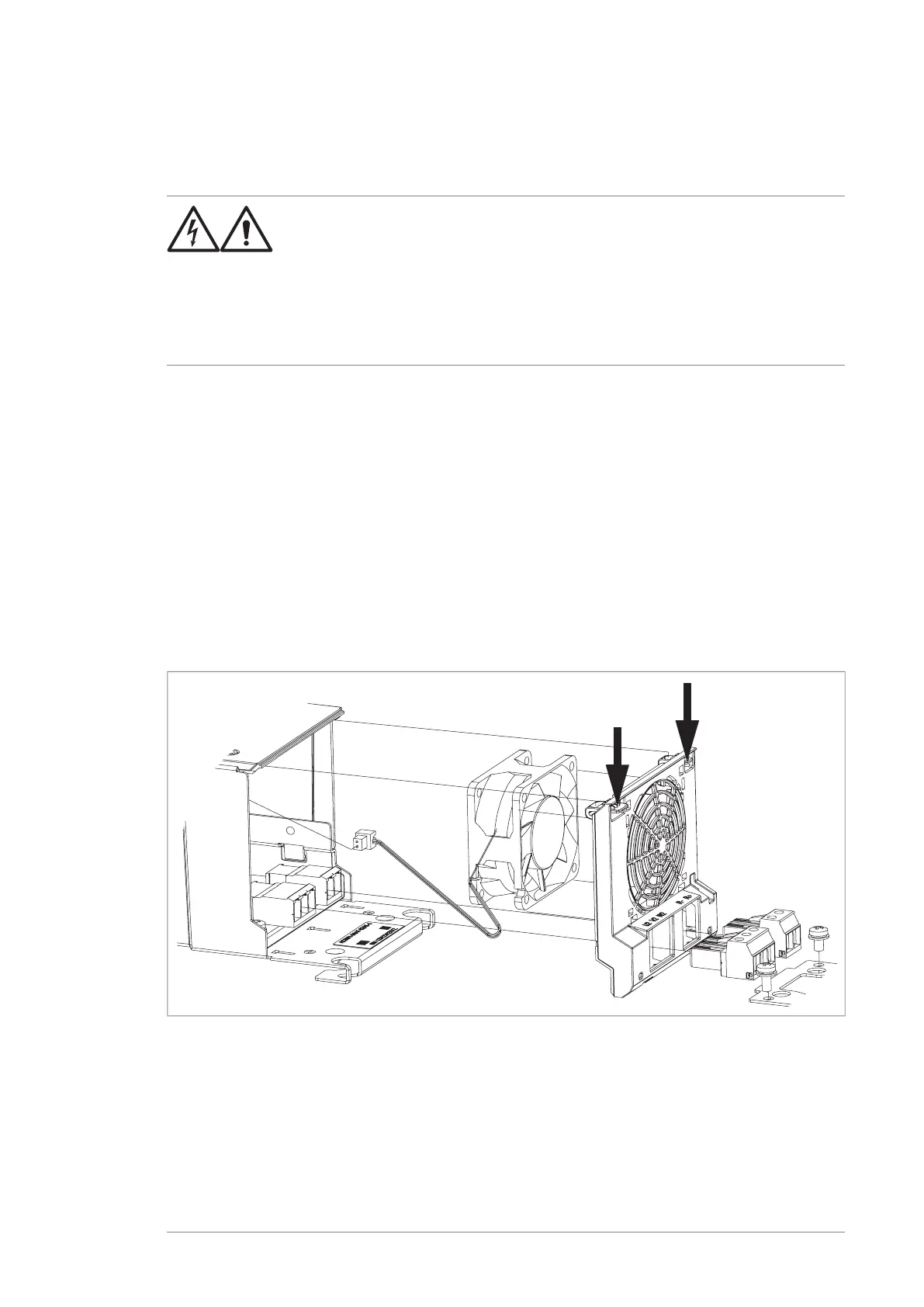

3. Release the retaining clips (arrowed) carefully using a screwdriver.
4. Pull the fan holder out.
5. Disconnect the fan cable.
6. Carefully bend the clips on the fan holder to free the fan.
7. Install new fan in reverse order.
Note: The airflow direction is bottom-to-top. Install the fan so that the arrow on it
points up.
In the drawing, the direction of airflow is from right to left.
Maintenance 109
