ABB ACS880-107

To Next Page

To Previous Page

￭

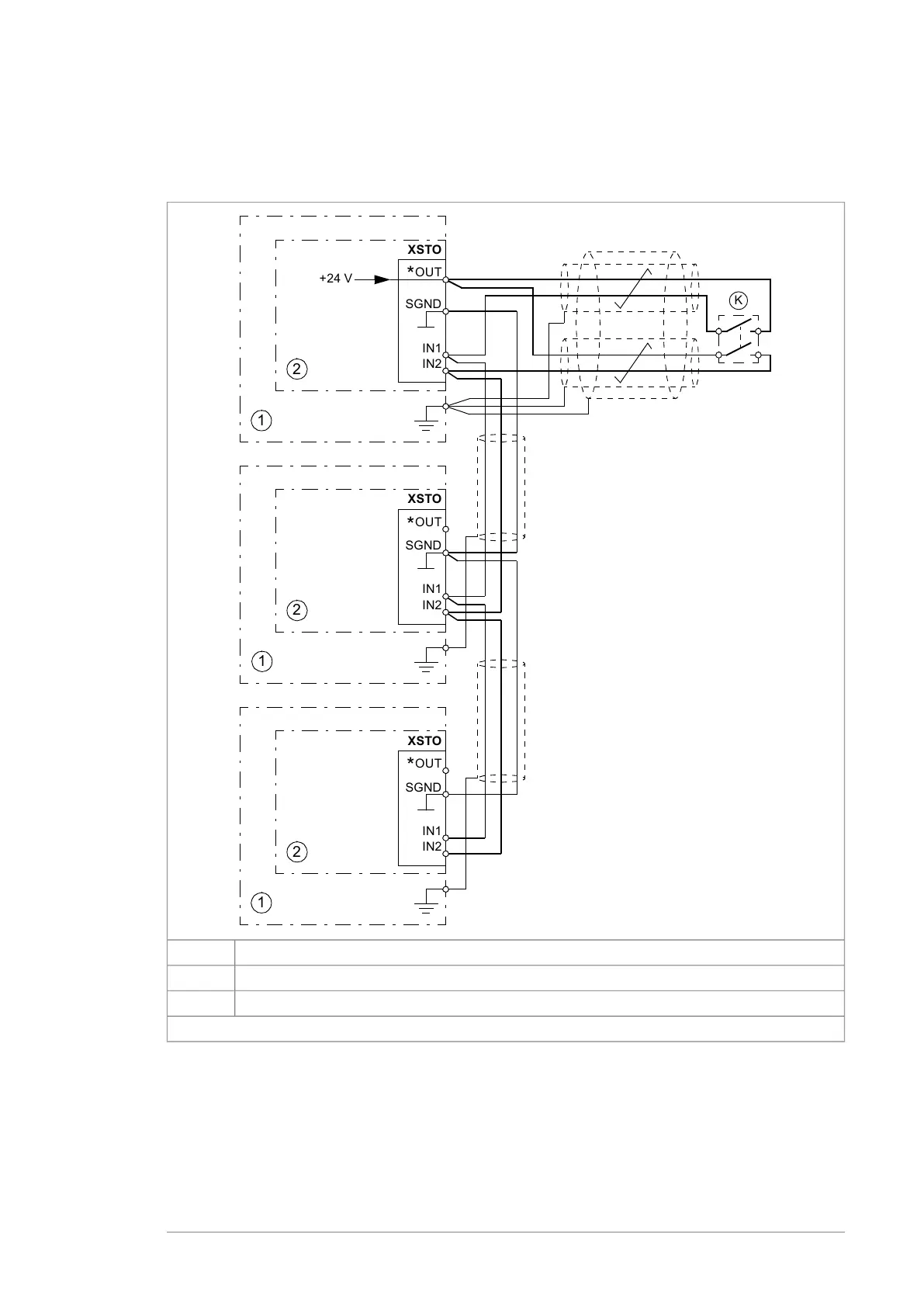

Multiple inverter units

Internal power supply

+24 V

OUT

SGND

IN1

IN2

OUT

SGND

IN1

IN2

OUT

SGND

IN1

IN2

XSTO

Inverter unit1

Control unit2

Activation switchK

* OUT1 in inverters with ZCU-12 control units.

The Safe torque off function 197
