Use of fasteners in cable lug connections
Use the bolts, nuts and washers delivered with the drive. Install all the fasteners in the
correct order. See the figure below. Tighten the cable lug to the torque specified for
the connection.

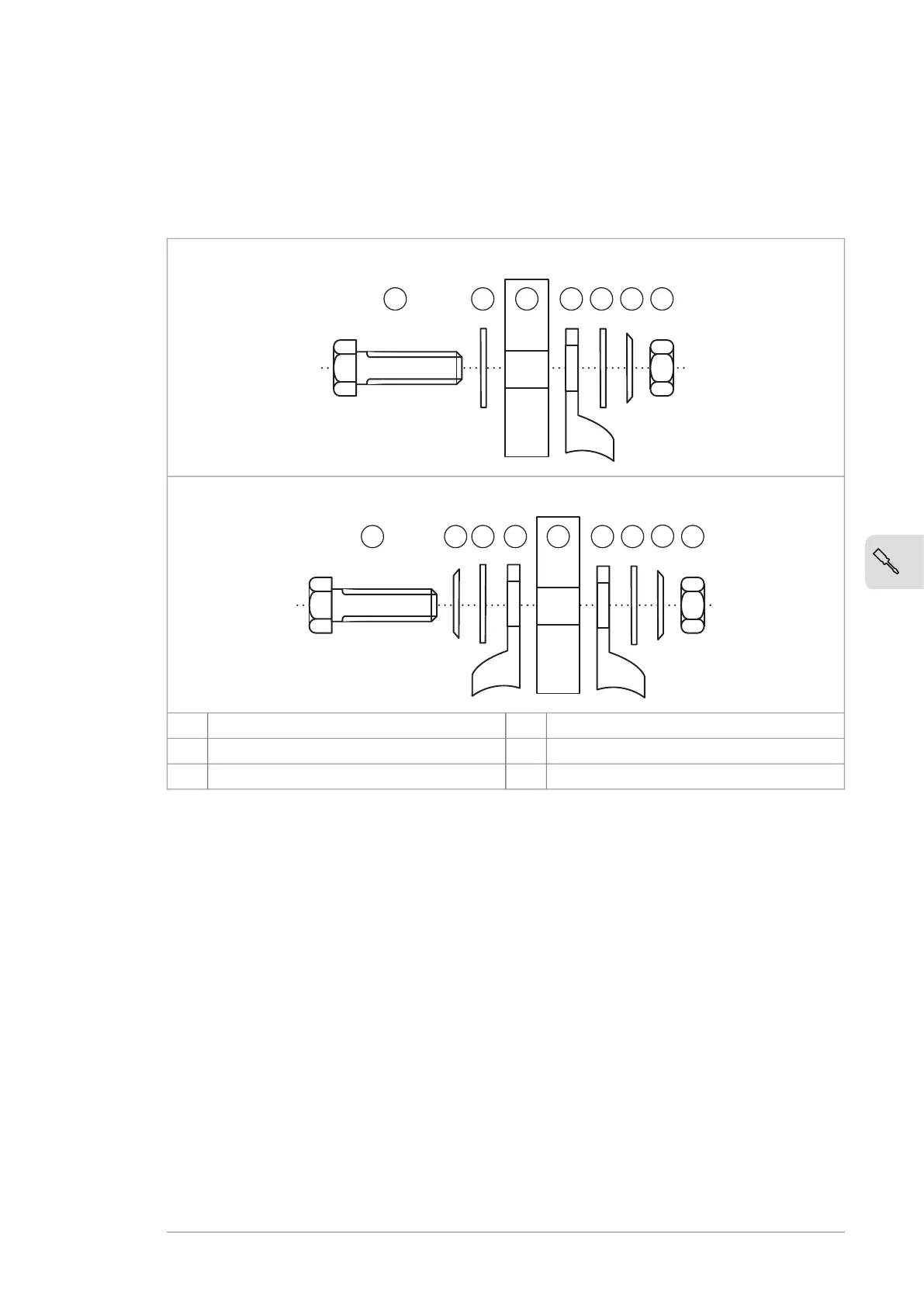

Cable lug on one side of the busbar
1 62 23 4 5
Cable lugs on both sides of the busbar
1 65 23 4
5
2 4
Cable lug4Bolt1
Spring washer5Plain washer2
Nut6Busbar3
