ABB ACS880-107

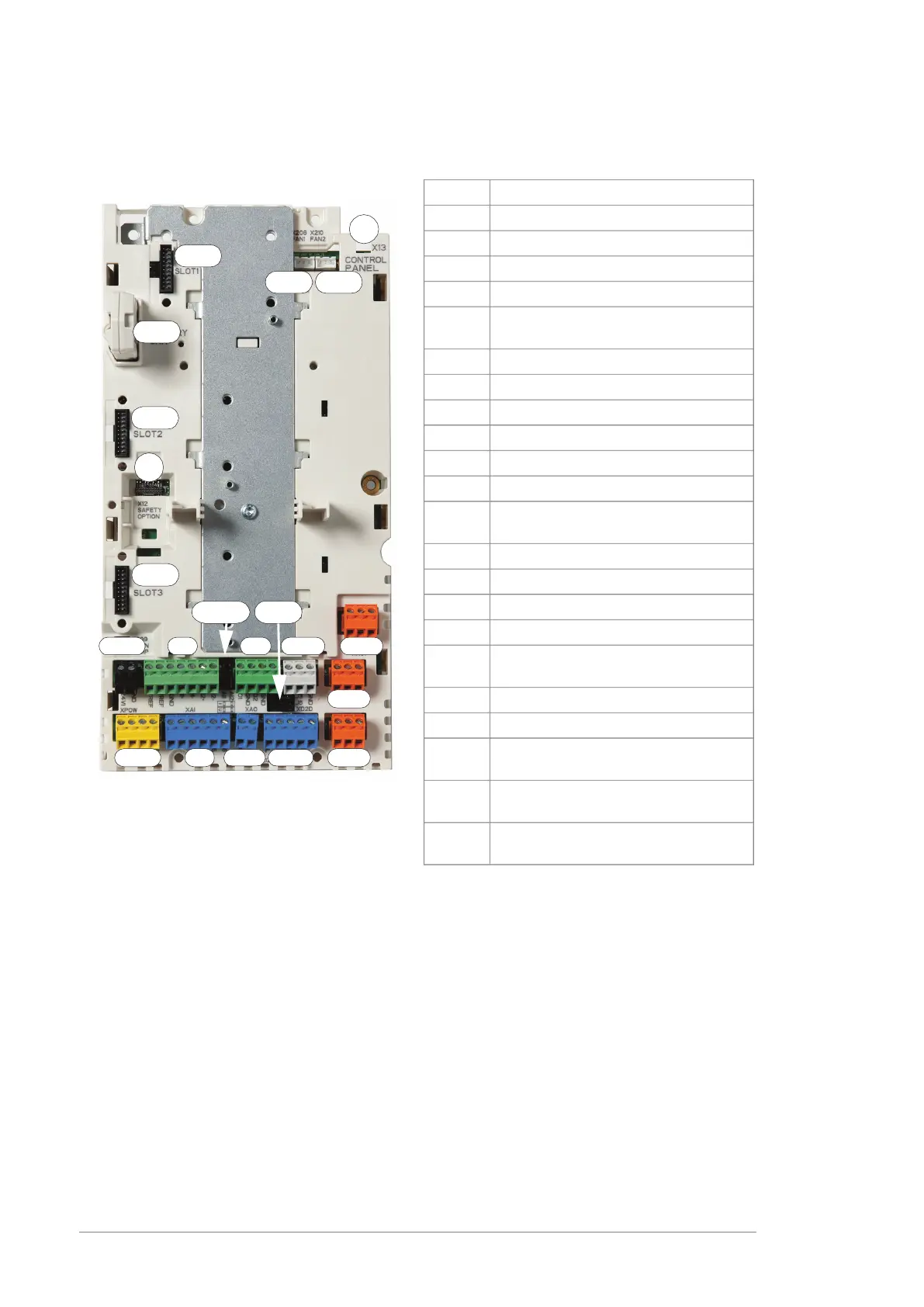

ZCU-12 layout
Description
Analog inputsXAI
Analog outputsXAO
Digital inputsXDI
Digital input/outputsXDIO
Digital input interlock (DIIL) and +24 V
output
XD24
Drive-to-drive linkXD2D
External power inputXPOW
Relay output RO1XRO1
Relay output RO2XRO2
Relay output RO3XRO3
Safe torque off connectionXSTO
Connection for FSO safety functions
module
X12
Control panel connectionX13
Option slot 1X202
Option slot 2X203
Option slot 3X204
Memory unit connection (memory unit
inserted in the picture)
X205
Cooling fan 1 connectionX208
Cooling fan 2 connectionX210
Current/Voltage selection jumpers (J1,
J2) for analog inputs
AI1, AI2
Drive-to-drive link termination switch
(J3)
J3
Common digital input ground selection
switch (J6)
J6
X13
X12
X202
X203
X204
X205
AI1, A12
XPOW XAI XAO XD2D
XRO2
XRO1
XRO3XSTO XDI
XDIO XD24
X208
J3, J6
X210
78 Control units of the drive
