Replacing R5i inverter module (with option +C204, modules in their
own compartments)
WARNING!
Obey the safety instructions given in ACS880 multidrives cabinets and
modules safety instructions (3AUA0000102301 [English]). If you ignore
the safety instructions, injury or death, or damage to the equipment
can occur.
If you are not a qualified electrical professional, do not do installation
or maintenance work.
WARNING!
Use the required personal protective equipment. Wear protective gloves and
long sleeves. Some parts have sharp edges.
1. Stop the drive and do the steps in section Electrical safety precautions (page 44)
before you start the work.
2. Switch off the DC switch-disconnector of the compartment and open the door.
You can remove the door entirely for easier access.
3. Remove the fuses from the DC switch-disconnector of the compartment.

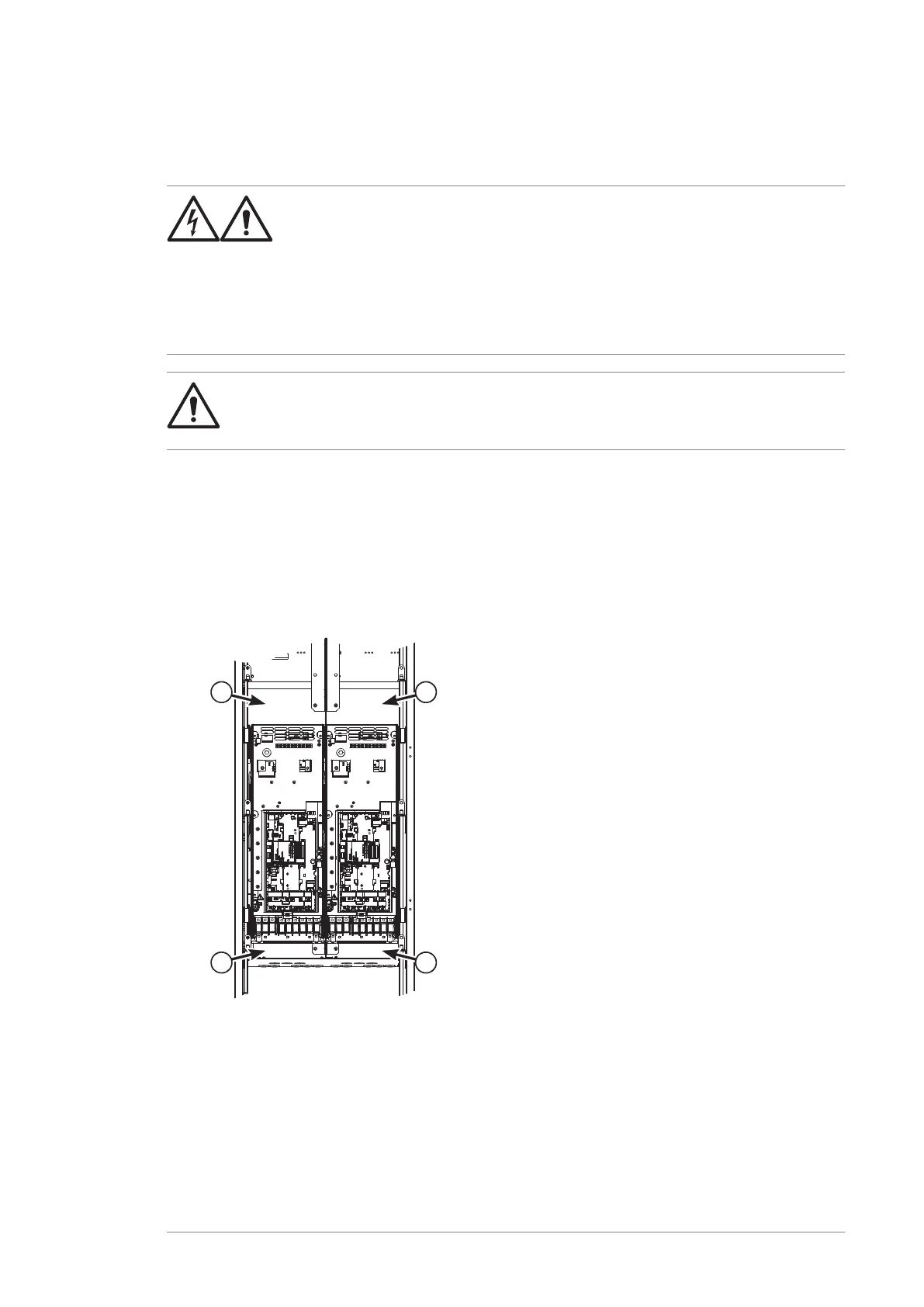

4. Remove the air baffles above (4a) and below (4b) the module.
5. Disconnect all cabling from the module. Move the cables aside.
6. Secure a good grip on the module to prevent it from falling out, and remove the
four mounting nuts and screws of the module (two at the top edge, two at the
bottom edge).
7. Pull the module out along its rails.
Install the module in reverse order.
Maintenance 123
