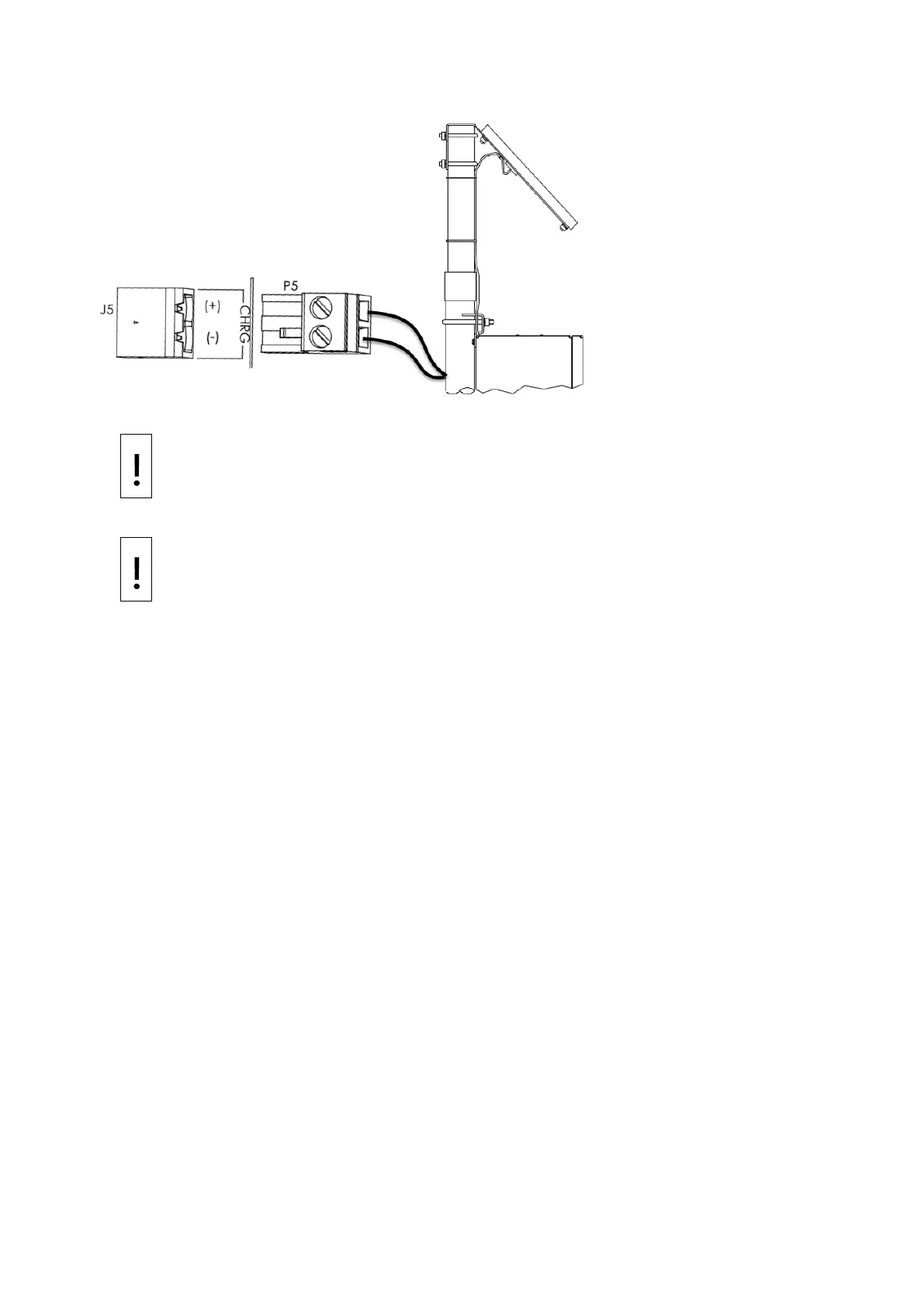

Figure 4-2: CHRG terminal block on the XFC
G5
NOTICE
–
Equipment damage or loss of data
. Do not over
-tighten the terminal
connector screws as this may
d
amage the wires.
NOTICE
–
Equipment damage or loss of data
. Do not connect the solar panel to the
electronic board before battery connection. Damage to the
board will void any warranty
.
