5-134
CELL-DYN
®
3200 System Operator’s Manual
9140181H—October 2001
Operating Instructions
Using The Data Log
Section 5
Standard Groups
Pre-determined groups of parameters, called Standard Groups, may be selected by
pressing the [STANDARD GROUPS] key. Refer to Figure 5.49 which shows the
CUSTOMIZE DISPLAY FOR DATA LOGscreen with the standard groups displayed.
The following soft key labels are displayed when the [STANDARD GROUPS] key is
pressed:
WBC GROUP
RBC GROUP
PLT GROUP
DIFF GROUP
CUSTOM PLACEMENT*
CUSTOMIZE PRINTOUT
RETURN
*The [CUSTOM PLACEMENT] key is used to return to the CUSTOMIZE DISPLAY FOR
DATA LOGscreen for operator-selected placement.
Figure 5.49 shows the WBC Group placed in GROUP 1, the RBC Group placed in
GROUP 2, the PLT Group placed in GROUP 3 and the Diff Group placed in
GROUP 4.
When each soft key is pressed, the designated parameter group is placed in the
position indicated by the cursor.

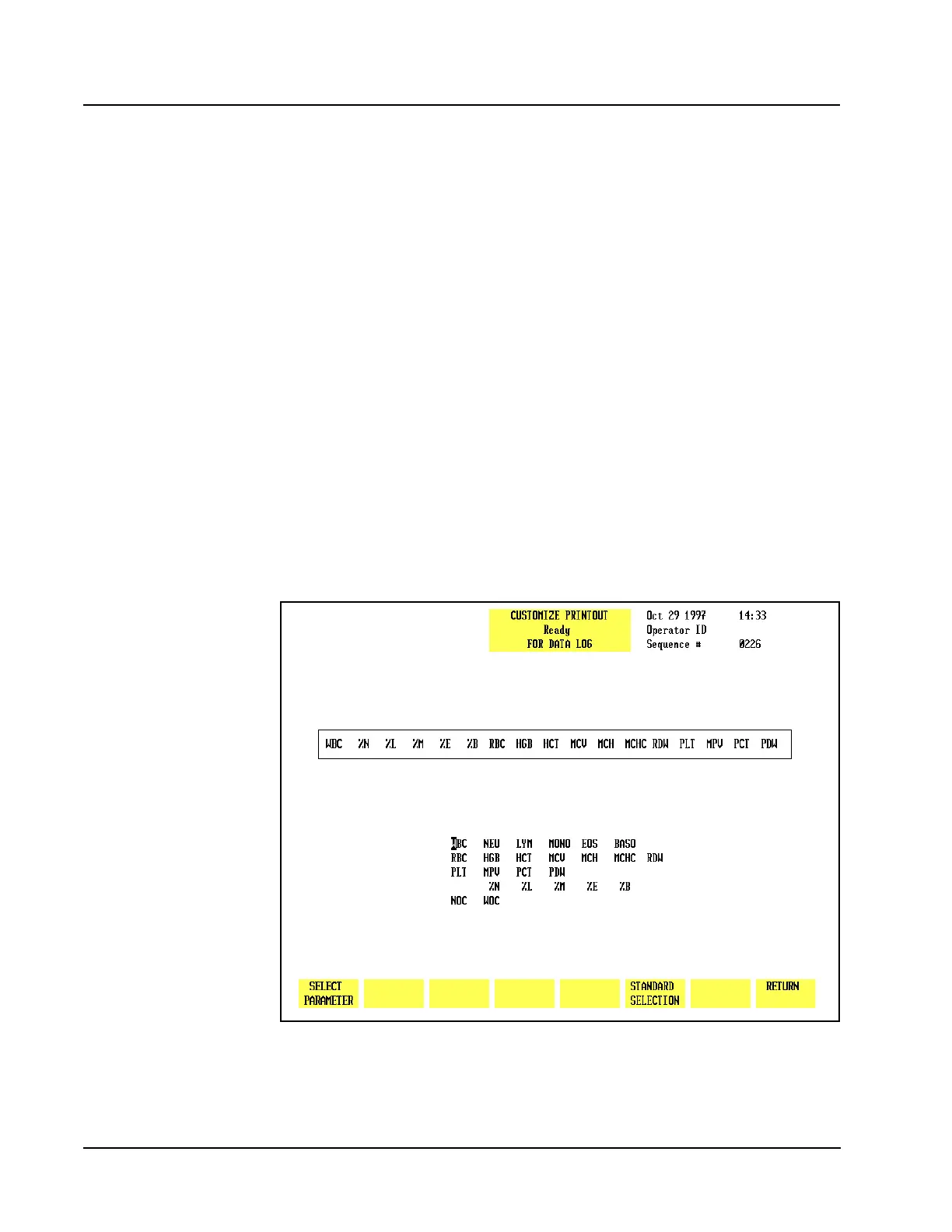

Figure 5.51 Customize Printout for Data Log Screen
