11.9.3 I2C Bit Transfer
The data on the SDA line must be stable during HIGH period of the clock, SCL. The HIGH or LOW state of the data
line can only change when the clock signal on the SCL line is LOW. The exceptions are START(S), repeated
START(Sr) and STOP(P) condition where data line changes when clock line is high.

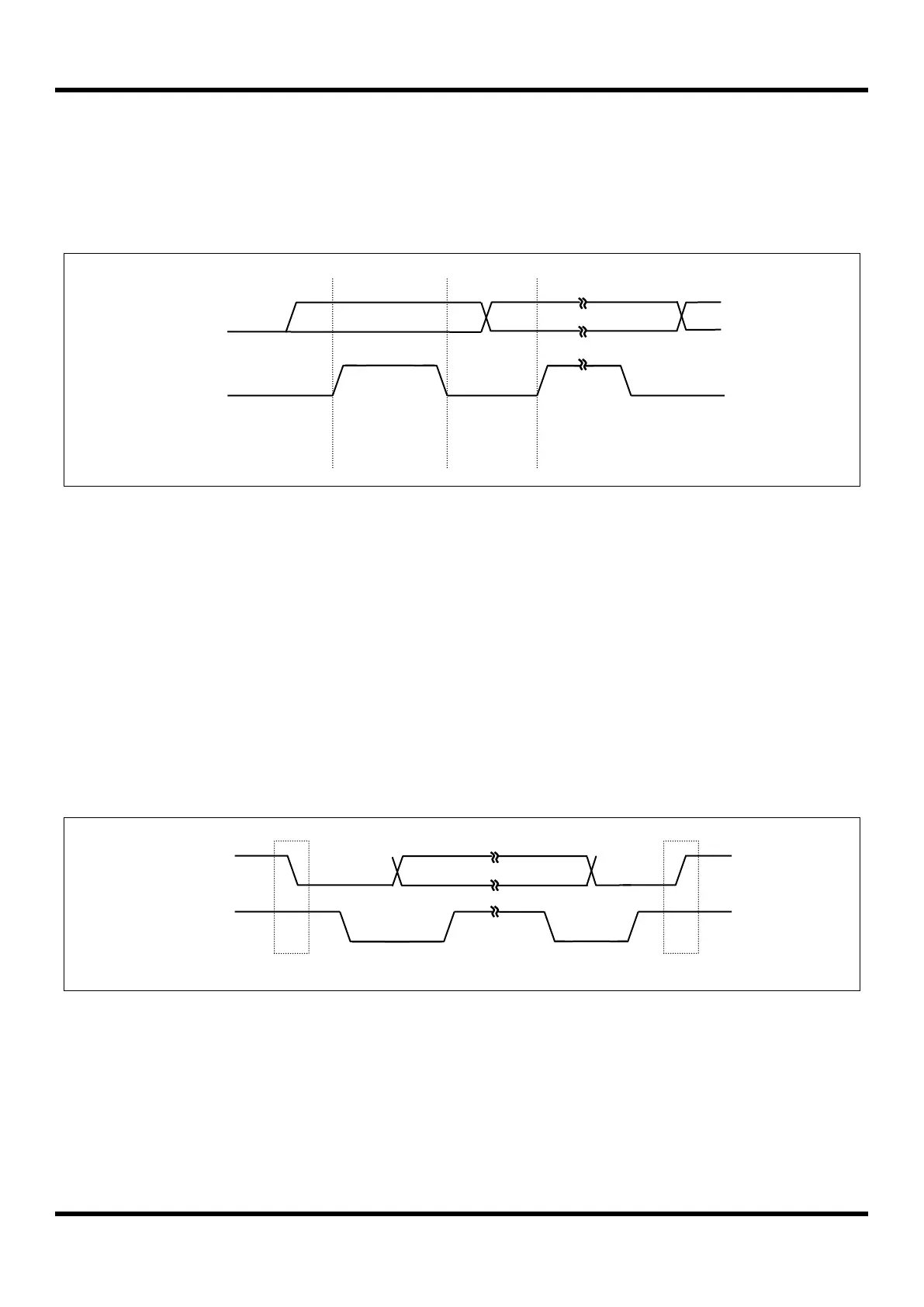

Figure 11.36 Bit Transfer on the I2C-Bus
11.9.4 Start / Repeated Start / Stop
One master can issue a START (S) condition to notice other devices connected to the SCL, SDA lines that it will use
the bus. A STOP (P) condition is generated by the master to release the bus lines so that other devices can use it.
A high to low transition on the SDA line while SCL is high defines a START (S) condition.
A low to high transition on the SDA line while SCL is high defines a STOP (P) condition.
START and STOP conditions are always generated by the master. The bus is considered to be busy after START
condition. The bus is considered to be free again after STOP condition, ie, the bus is busy between START and STOP
condition. If a repeated START condition (Sr) is generated instead of STOP condition, the bus stays busy. So, the
START and repeated START conditions are functionally identical.
Figure 11.37 START and STOP Condition
Data line Stable:
Data valid
except S, Sr, P
