143
ABOV Semiconductor Co., Ltd.
11.9.6 I2C Acknowledge
The acknowledge related clock pulse is generated by the master. The transmitter releases the SDA line (HIGH) during
the acknowledge clock pulse. The receiver must pull down the SDA line during the acknowledge clock pulse so that it
remains stable LOW during the HIGH period of this clock pulse. When a slave is addressed by a master (Address
Packet), and if it is unable to receive or transmit because it’s performing some real time function, the data line must be
left HIGH by the slave. And also, when a slave addressed by a master is unable to receive more data bits, the slave
receiver must release the SDA line (Data Packet). The master can then generate either a STOP condition to abort the
transfer, or a repeated START condition to start a new transfer.
If a master receiver is involved in a transfer, it must signal the end of data to the slave transmitter by not generating an
acknowledge on the last byte that was clocked out of the slave. The slave transmitter must release the data line to
allow the master to generate a STOP or repeated START condition.

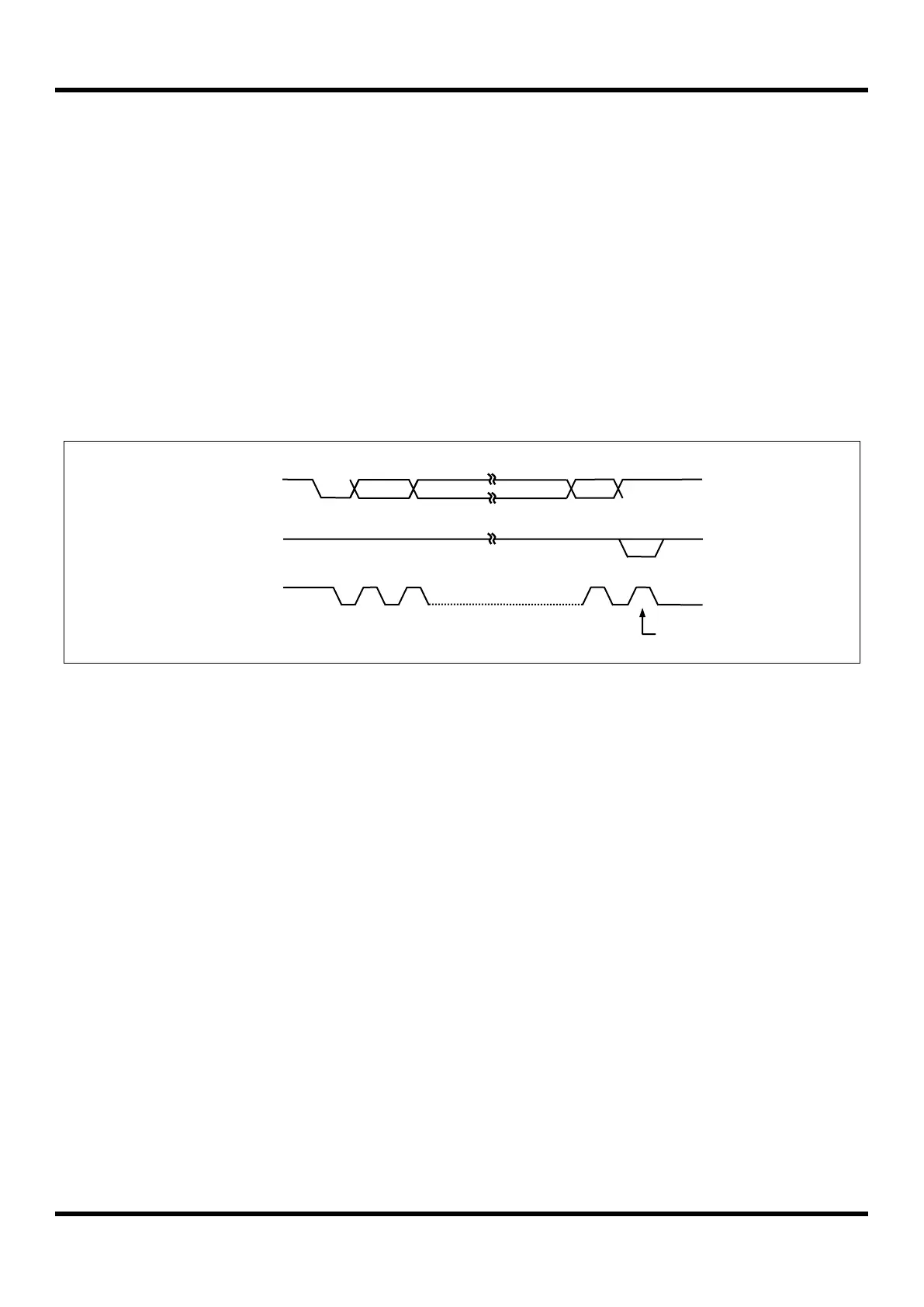

Figure 11.39 Acknowledge on the I2C-Bus
Data Output
By Transmitter
