Abov MC96F8204 Series User Manual

161
MC96F8204
ABOV Semiconductor Co., Ltd.
11.10.1 Block Diagram
M
U
X
fHFIRC
CKSEL[2:0]
fHFIRC/2
fHFIRC/4
fHFIRC/8
fx
Flash CRC Generator
FCSARH/M/L
(Only Auto CRC Mode)
Flash CRC Start Address Register
FCEARH/M/L
(Only Auto CRC Mode)
Flash CRC End Address Register
FCSADR[23:0]
FCEADR[23:0]
CRCRUN
(Only Auto CRC Mode)
Result
FCDRH/L
Flash CRC Data Register
FCDR[15:0]
M
U
X
CRCMOD
INTERNAL BUS
FCDIN
(Only User CRC Mode)
8
8
8
CDCL(Only User CRC Mode)
Clear

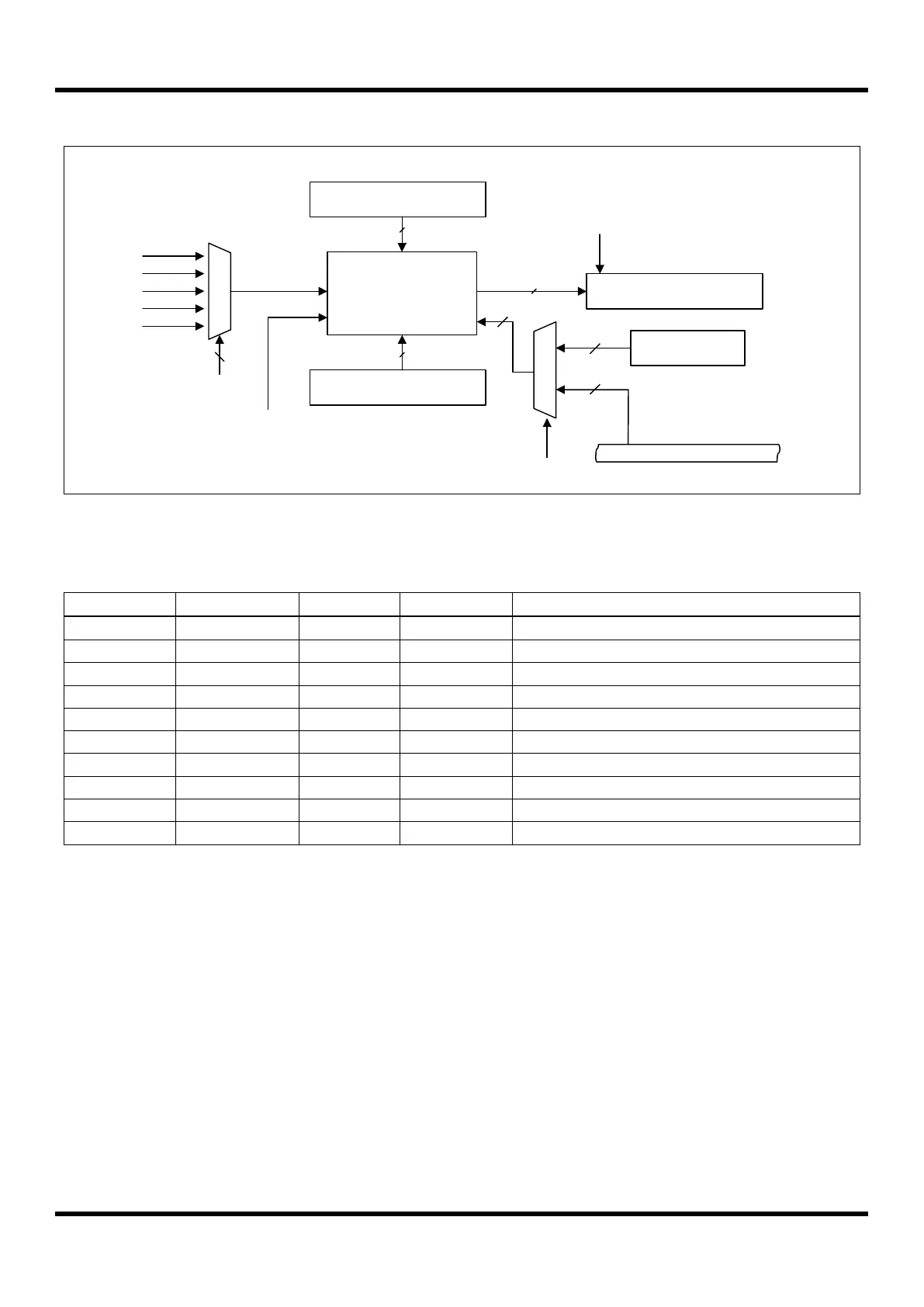

Figure 11.43 Flash CRC Generator Block Diagram
11.10.2 Register Map
Name
Address
Direction
Default
Description
FCSARH
5050H (XSFR)
R/W
00H
Flash CRC Start Address High Register
FCEARH
5051H (XSFR)
R/W
00H
Flash CRC End Address High Register
FCSARM
5052H (XSFR)
R/W
00H
Flash CRC Start Address Middle Register
FCEARM
5053H (XSFR)
R/W
00H
Flash CRC End Address Middle Register
FCSARL
5054H (XSFR)
R/W
00H
Flash CRC Start Address Low Register
FCEARL
5055H (XSFR)
R/W
00H
Flash CRC End Address Low Register
FCCR
5056H (XSFR)
R/W
00H
Flash CRC Control Register
FCDRH
5057H (XSFR)
R
FFH
Flash CRC Data High Register
FCDRL
5058H (XSFR)
R
FFH
Flash CRC Data Low Register
FCDIN
D7H
R/W
00H
Flash CRC Data In Register
Table 11.14 Flash CRC Generator Register Map
