Abov MC96F8204 Series User Manual

40
MC96F8204
ABOV Semiconductor Co., Ltd.

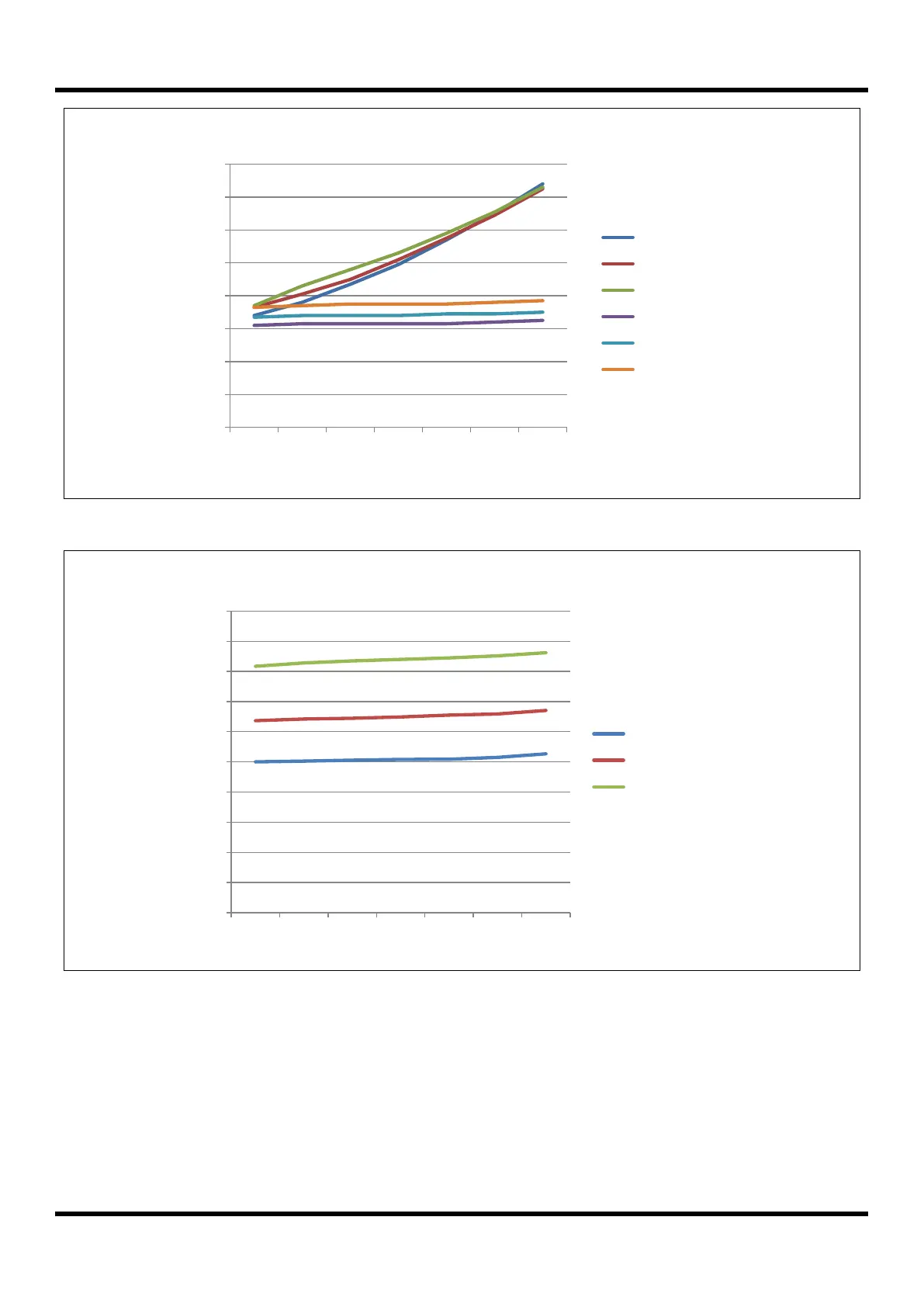

Figure 7.21 X-TAL, HFIRC IDLE (IDD2) Current
Figure 7.22 LFIRC IDLE (IDD2) Current
0.00
0.20
0.40
0.60
0.80
1.00
1.20
1.40
1.60
2.5V 3.0V 3.5V 4.0V 4.5V 5.0V 5.5V
mA
X-tal 12MHz -40℃
X-tal 12MHz +25℃
X-tal 12MHz +85℃
HFIRC 8MHz -40℃
HFIRC 8MHz +25℃
HFIRC 8MHz +85℃
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
2.5V 3.0V 3.5V 4.0V 4.5V 5.0V 5.5V
uA
LFIRC 200kHz -40℃
LFIRC 200kHz +25℃
LFIRC 200kHz +85℃
