7.24 Typical Characteristics
These graphs and tables provided in this section are only for design guidance and are not tested or guaranteed. In
graphs or tables some data are out of specified operating range (e.g. out of specified VDD range). This is only for
information and devices are guaranteed to operate properly only within the specified range.
The data presented in this section is a statistical summary of data collected on units from different lots over a period of
time. “Typical” represents the mean of the distribution while “max” or “min” represents (mean + 3σ) and (mean - 3σ)
respectively where σ is standard deviation.

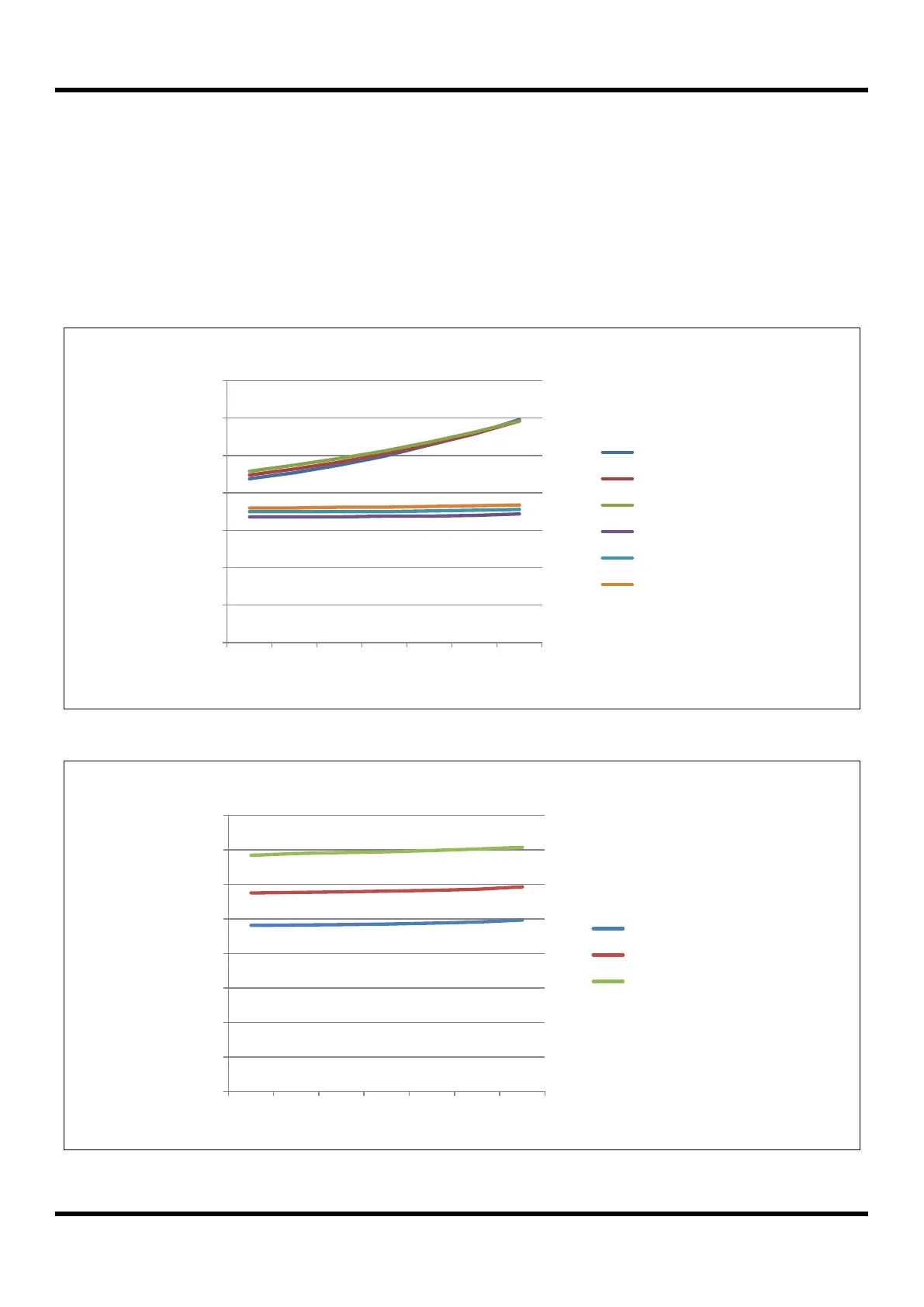

Figure 7.19 X-TAL, HFIRC RUN (IDD1) Current
Figure 7.20 LFIRC RUN (IDD1) Current
0.00
0.50
1.00
1.50
2.00
2.50
3.00
3.50
2.5V 3.0V 3.5V 4.0V 4.5V 5.0V 5.5V
mA
X-tal 12MHz -40℃
X-tal 12MHz +25℃
X-tal 12MHz +85℃
HFIRC 8MHz -40℃
HFIRC 8MHz +25℃
HFIRC 8MHz +85℃
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
160.0
2.5V 3.0V 3.5V 4.0V 4.5V 5.0V 5.5V
uA
LFIRC 200kHz -40℃
LFIRC 200kHz +25℃
LFIRC 200kHz +85℃
