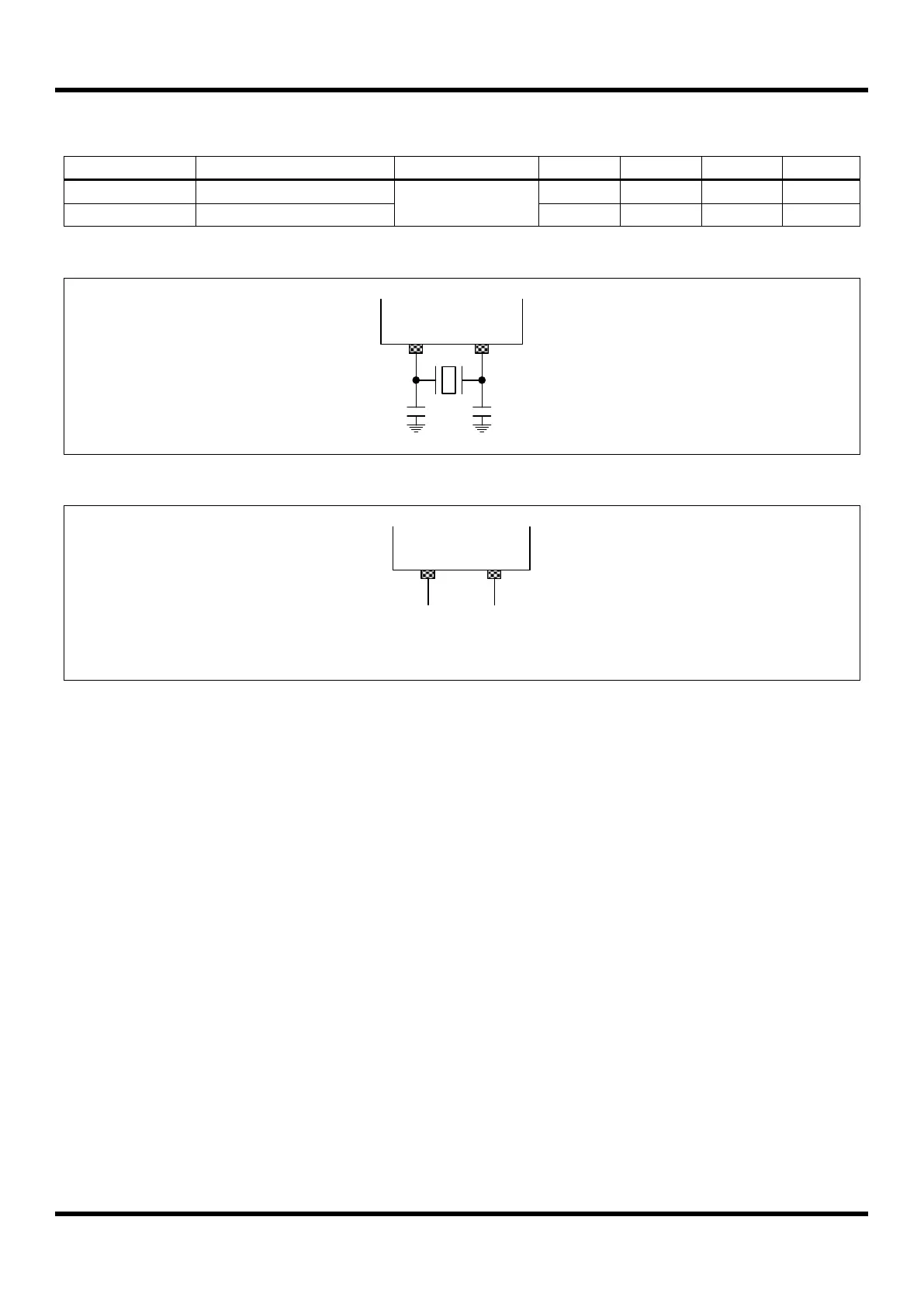

7.18 Sub Clock Oscillator Characteristics
(T
A
= -40°C ~ +85°C, VDD = 2.2V ~ 5.5V)
Oscillator
Parameter
Condition
MIN
TYP
MAX
Unit
Crystal
Sub oscillation frequency
1.8V – 5.5V
32
32.768
38
kHz
External Clock
SXIN input frequency
32
–
100
kHz
Table 7.18 Sub Clock Oscillator Characteristics
SXIN SXOUT
C1
C2
Figure 7.10 Crystal Oscillator
SXIN SXOUT
External
Clock
Source
Open
Figure 7.11 External Clock
