Abov MC96F8204 Series

5
MC96F8204
ABOV Semiconductor Co., Ltd.
2
User VCC
1
3
4
5
6
7
8
10
9
User GND
DSCL
DSDA
1.3 Development tools
1.3.1 Compiler
We do not provide the compiler. Please contact the third parties.
The core of MC96F8204 is Mentor 8051. And, device ROM size is smaller than 64k bytes. Developer can use all kinds
of third party’s standard 8051 compiler.
1.3.2 OCD(On-chip debugger) emulator and debugger
The OCD (On Chip Debug) emulator supports ABOV Semiconductor’s 8051 series MCU emulation.
The OCD interface uses two-wire interfacing between PC and MCU which is attached to user’s system. The OCD can
read or change the value of MCU internal memory and I/O peripherals. And the OCD also controls MCU internal
debugging logic, it means OCD controls emulation, step run, monitoring, etc.
The OCD Debugger program works on Microsoft-Windows NT, 2000, XP, Vista (32bit) operating system.
If you want to see more details, please refer to OCD debugger manual. You can download debugger S/W and manual
from our web-site(http://www.abov.co.kr).
Connection:
− DSCL (MC96F8204 P01 port)
− DSDA (MC96F8204 P00 port)
OCD connector diagram: Connect OCD with user system

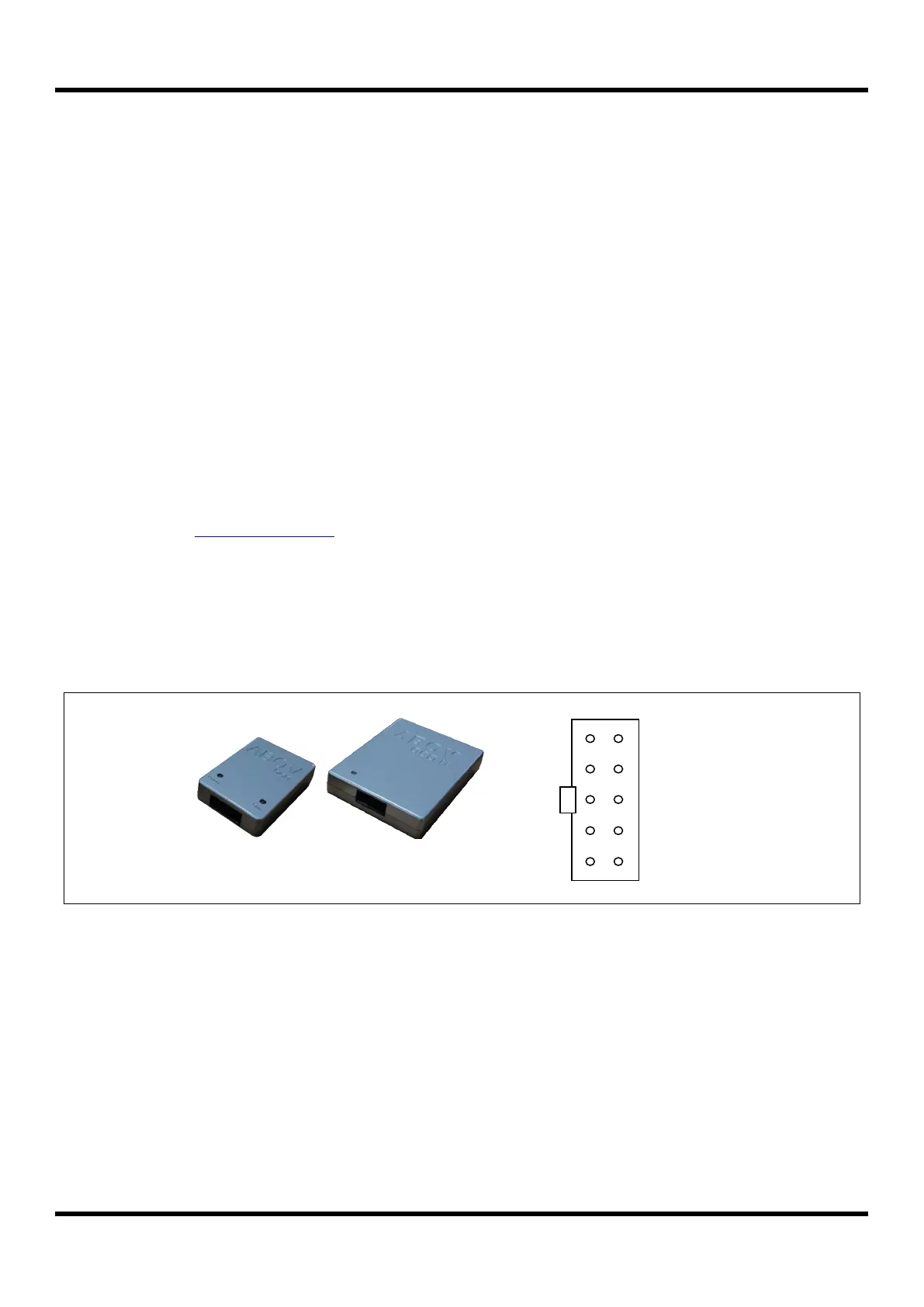

Figure 1.1 Debugger(OCD1/OCD2) and Pin description
