Abov MC96F8204 Series

27
MC96F8204
ABOV Semiconductor Co., Ltd.
7.10 AC Characteristics
(T
A
= -40°C ~ +85°C, VDD= 1.8V ~ 5.5V)
Parameter
Symbol
Conditions
MIN
TYP
MAX
Unit
RESETB input low width
t
RST
VDD= 5V
10
–
–
us
Interrupt input high, low width
t
IWH
, t
IWL
All interrupt, VDD= 5V
200
–
–
ns
External Counter Input High,
Low Pulse Width
t
ECWH
,
t
ECWL
EC1/EC2, VDD = 5V
200
–
–
External Counter Transition Time
t
REC
, t
FEC
EC1/EC2, VDD = 5V
20
–
–

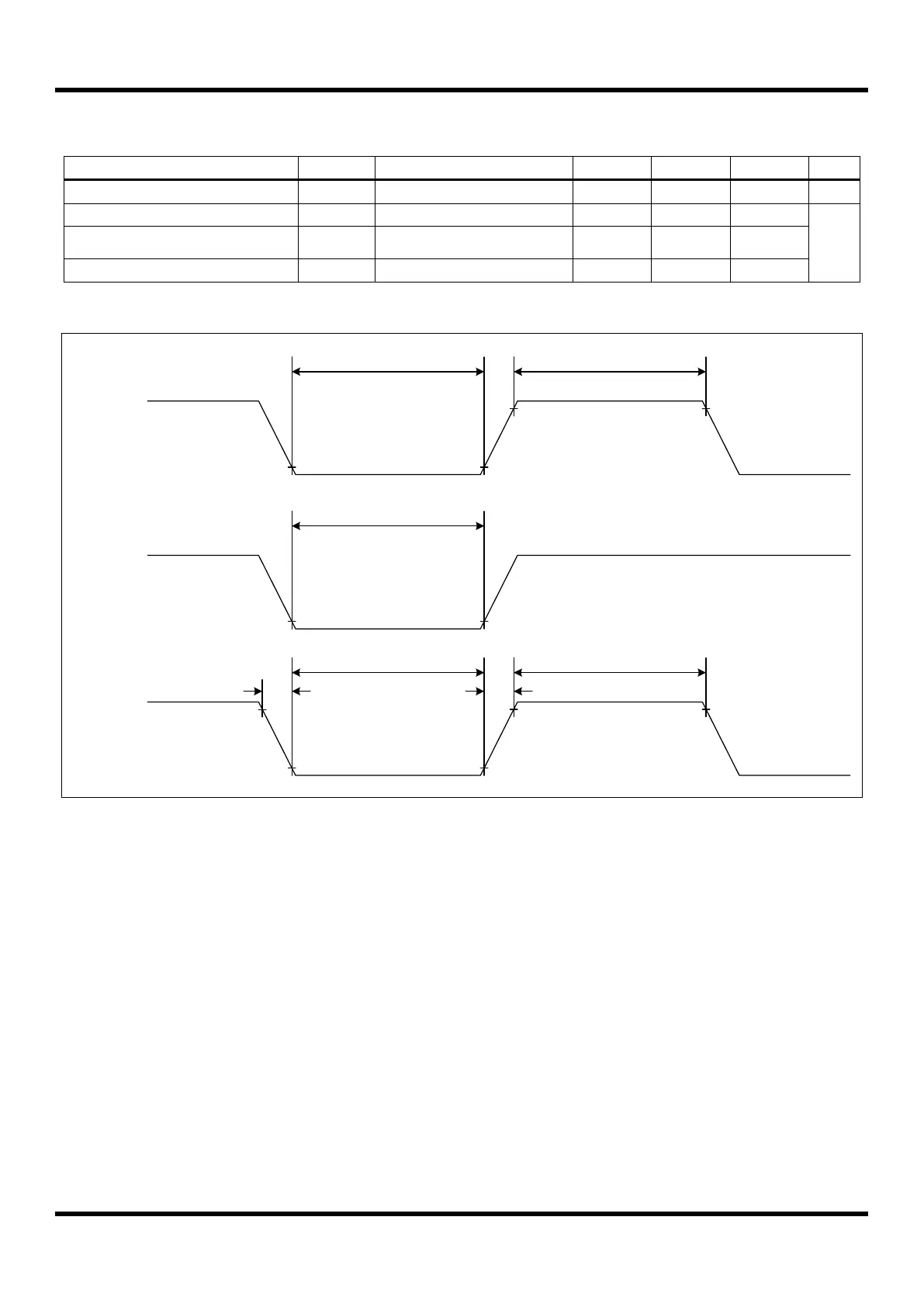

Table 7.10 AC Characteristics
tIWHtIWL
External
Interrupt
tRST
0.2VDD
0.2VDD
0.8VDD
RESETB
tECWHtECWL
ECn
tFEC tREC
Figure 7.1 AC Timing
