Abov MC96F8204 Series

31
MC96F8204
ABOV Semiconductor Co., Ltd.

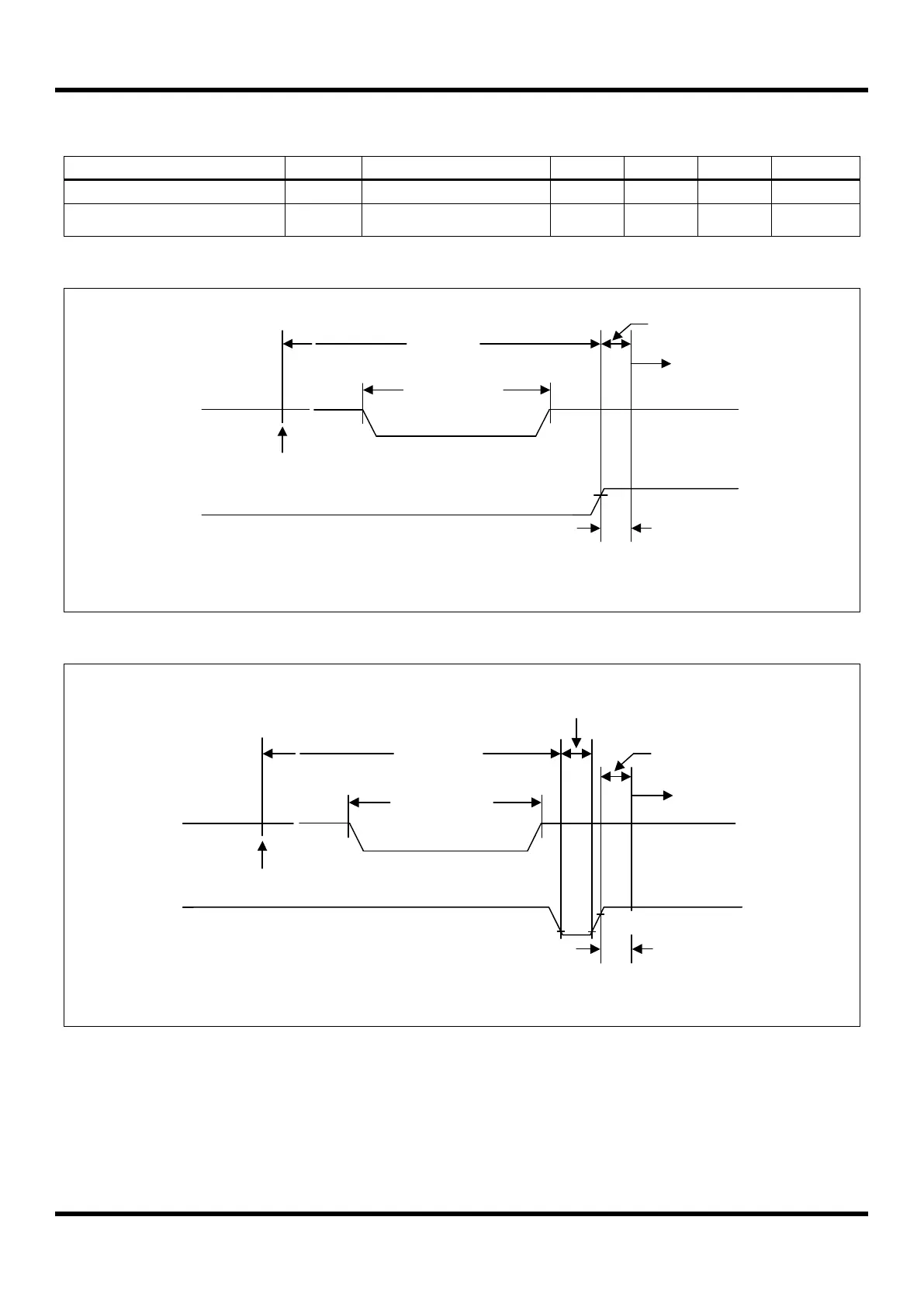

7.14 Data Retention Voltage in Stop Mode
(T
A
=-40°C ~ +85°C, VDD=1.8V ~ 5.5V)
Parameter
Symbol
Conditions
MIN
TYP
MAX
Unit
Data retention supply voltage
V
DDDR
–
1.8
–
5.5
V
Data retention supply current
I
DDDR
VDDR= 1.8V, (T
A
= 25°C),
Stop mode
–
–
1
uA
Table 7.14 Data Retention Voltage in Stop Mode
Idle Mode
(Watchdog Timer Active)
V
DD
NOTE: tWAIT is the same as (the selected bit overflow of BIT) X 1/(BIT Clock)
INT Request
Execution of
STOP Instruction
~ ~
Data Retention
~ ~
Stop Mode
Normal
Operating Mode
0.8VDD
t
WAIT
V
DDDR
Figure 7.6 Stop Mode Release Timing when Initiated by an Interrupt
NOTE : tWAIT is the same as (4096 X 4 X 1/fx) (16.4ms @ 1MHz)
VDD
RESETB
Execution of
STOP Instruction
~
~
Data Retention
~
~
Stop Mode
Oscillation
Stabillization Time
Normal
Operating Mode
TWAIT
RESET
Occurs
0.2VDD
V
DDDR
0.8VDD
Figure 7.7 Stop Mode Release Timing when Initiated by RESETB
