4.2 Operation in the DC Source Mode
4-10
4.2 Operation in the DC Source Mode

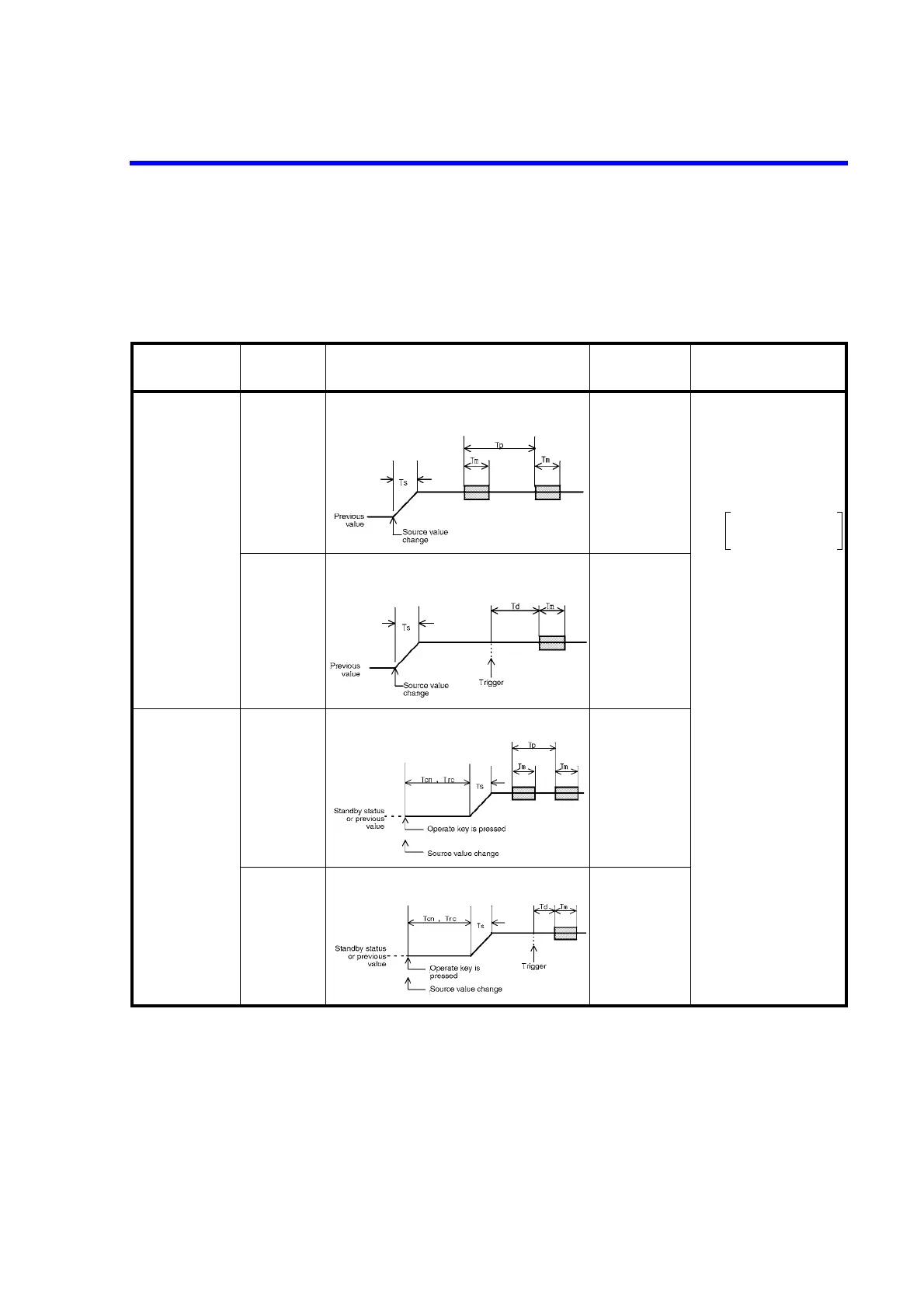

Table 4-2 shows the operation in the DC source mode.
Table 4-2 Operation in the DC Source Mode
Condition
change
Sampling
mode
Operation Description Remarks
Changing the
source value in
the range
mid-operation
Free-run
(a) Continuous
measurement
in the
specified Tp
interval
Td: Measure delay
time
Tm: Measurement
time
Integration time
+Measurement data
Processing time
Ts: Settling time
Tcn : Processing time
for Operate
Trc : Range change
processing time
Tp : Period
Hold
(b) Measuring
after the
trigger input
or after the
specified Td
Changing from
the Standby to
the Operate
mode or
changing the
range
Free-run
(c) Output value
changes after
pressing
Operate key,
changing the
source value,
or processing
time.
Hold
(d) Measuring
after entering
the trigger or
after the
specified Td
