1.1 Product Overview
1-2
• Linear, log, random sweep functions for characteristic tests
• Limiter (compliance), oscillation, overload, overheat detections
• Synchronized operation by integrating 2 or more units of the 6243/44
• GPIB for integrating an automated measurement system as standard

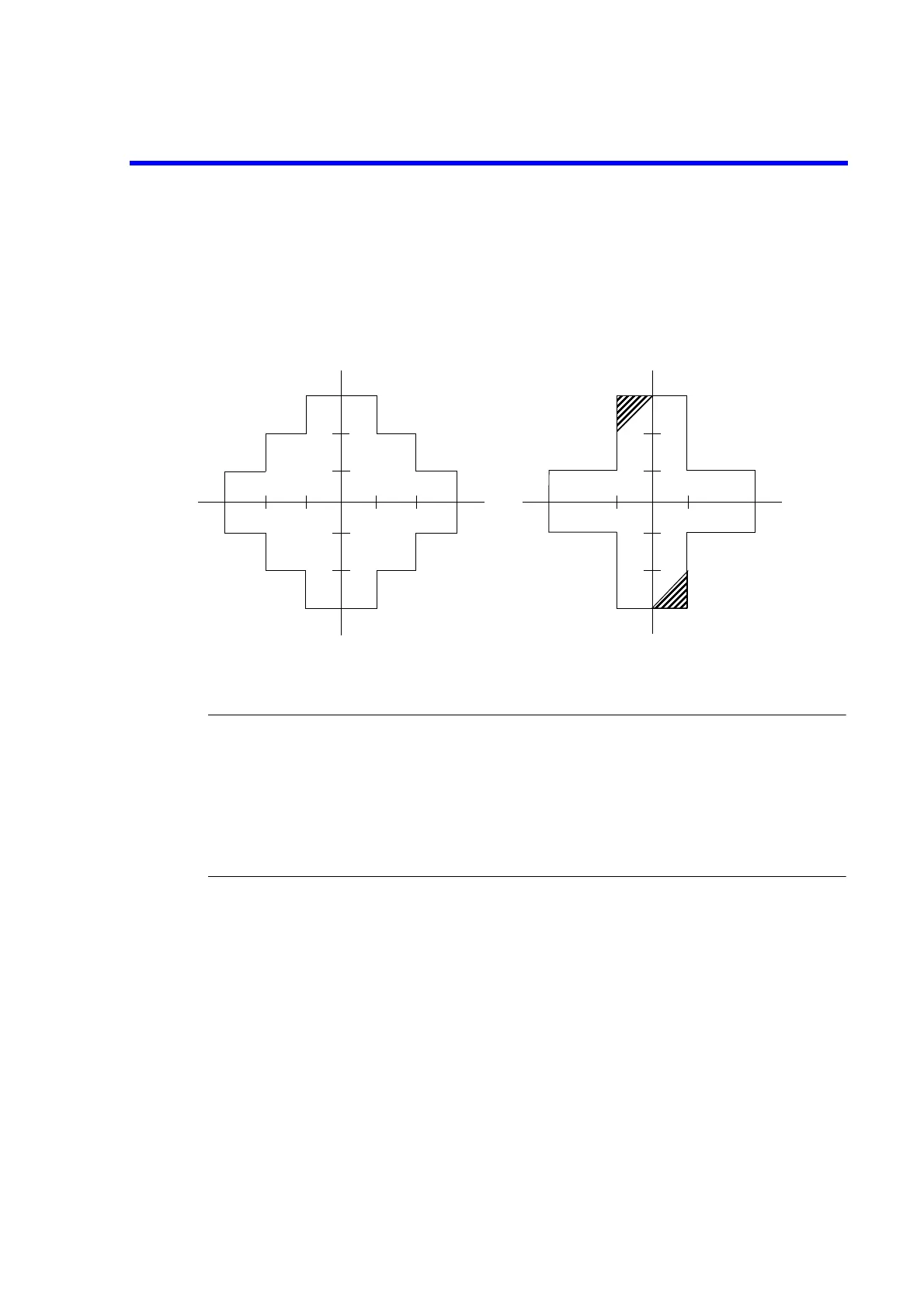

Figure 1-1 Output Range
NOTE: The output range corresponding to the hatched areas is shown in the following formula. The operat-
ing environment temperature is 0 to 40
 C.
When 0 V  V
0
 7 V: I
0
 3/7 V
0
- 10 [A]
When -7 V  V
0
 0 V: I
0
 3/7 V
0
+ 10 [A]
I
0
: Output current [A]
V
0
: Voltage between output terminals [V]
I
- Sink
+ Source
+ Sink
-Source
+2 A
+1 A
+0.5 A
-0.5 A
-1 A
-2 A
-110 V
-64 V -32 V +32 V +64 V +110 V
6243 Output Range
I
+Source - Sink
+ Sink-Source
+10 A
7 A
+4 A
-4 A
-7 A
+20 V+7 V-7 V-20 V
-10 A
6244 Output Range
