6243/44 DC Voltage Current Source/Monitor Operation Manual
2.2.4 Pulse Mode Measurement
2-19
24. Press the VS/IS key.
The function becomes the current source function and the limiter display disap-
pears.
(Indicating the voltage value of operating point D shown in Figure 2-7 (c).)
25. Press the OPERATE key.
The OPERATE lamp goes out, and the source status is set to Standby (output:
OFF).
2.2.4 Pulse Mode Measurement
This section describes an example of the Pulse Source mode measurements.
The described example is one in which measurement points A and B are measured by switching using the
voltage source and current measurement (VSIM) mode as shown in Figure 2-8.

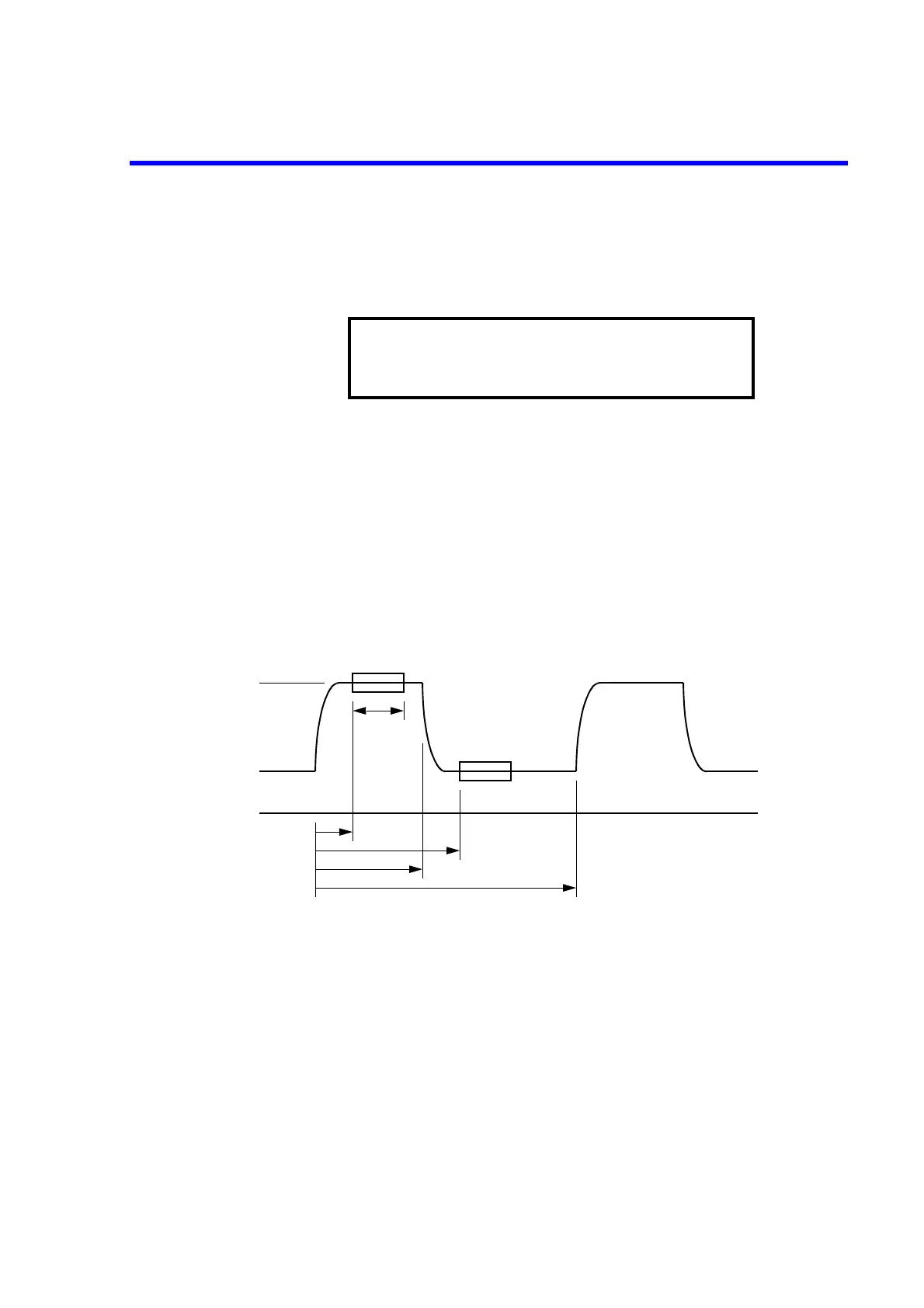

Figure 2-8 Pulse Mode Measurement
AZERO
VM+0.30000V
IS:+3.0000mA L: 04.000V *DC
Td 1
Td 2
Tw
Tp
Tit
Vp
VB
:
:
:
:
:
:
:
Measure delay (When the measurement point is A:)
Measure delay (When the measured point is B:)
Pulses width
Period
Integration time
Pulse value
Base value
;
;
;
;
;
;
;
4 ms
60 ms
50 ms
130 ms
1 PLC
2 V, 2.5 V
1 V, 0.5 V
(Default)
(Default)
Tp
Td 2
Tw
Td 1
B
A
VB
Base value
0 V
Tit
Vp
Pulse value
