6243/44 DC Voltage Current Source/Monitor Operation Manual
4.5.3 Source Range
4-25
(2) Range operation during sweep operation
When the auto range is set, the sweep operation sweeps while switching the source range.
The range is switched immediately before the next step is output. Consequently, the step time is pro-
longed by the amount of time required for the range switch processing.

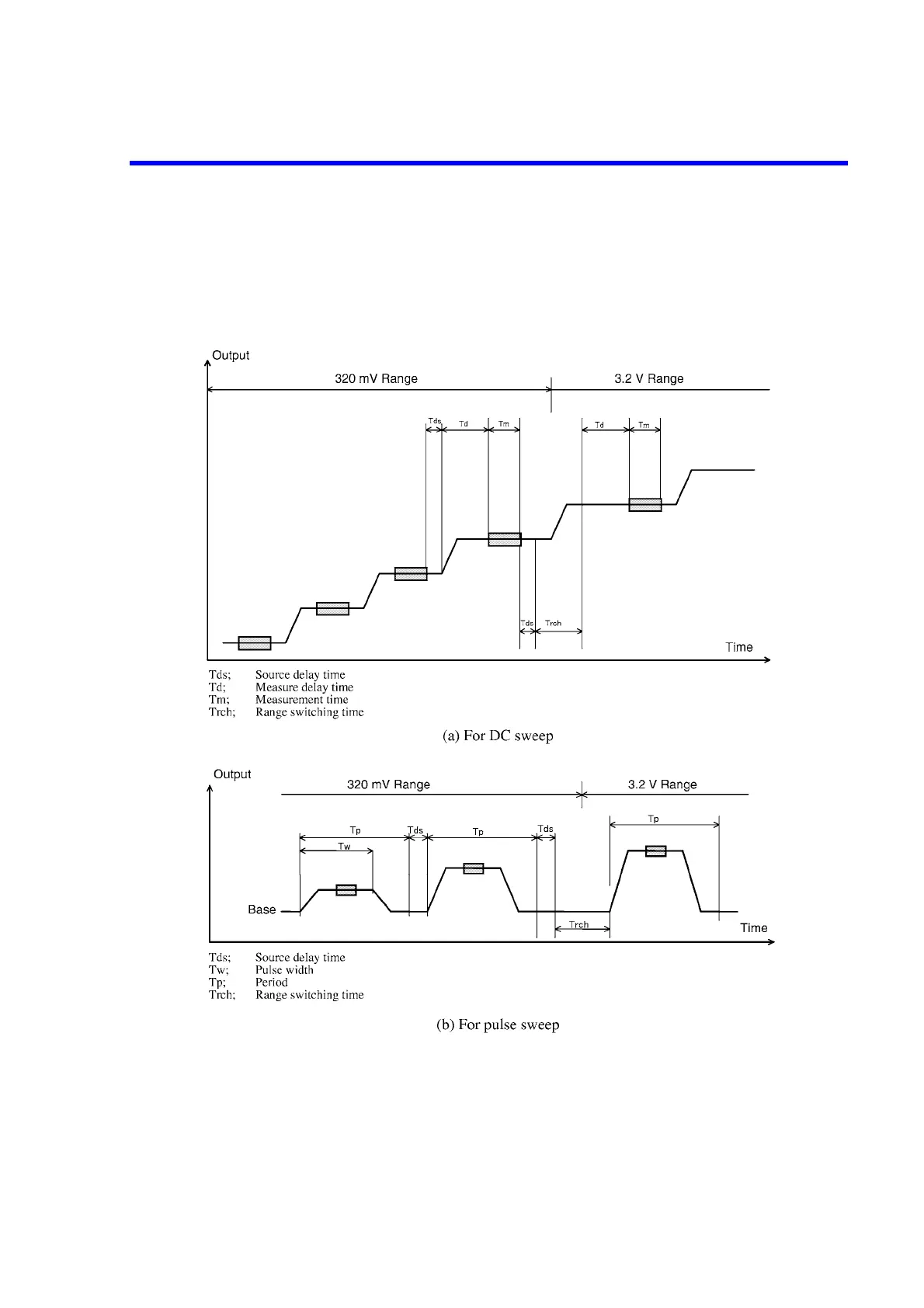

Figure 4-14 Range Operation during Sweep
To Next Page
